(888) 312-8812 Login SignupRAYBESTOS 581795 Raybestos Specialty - Street Performance Coated Brake Rotor
$140.66
MSRP Pricing shown.
Out of Stock
We cannot fulfill orders for this part at this time. Please check back later or request a stock notification to receive an email.
We may have similar parts for sale. Search Alternatives >
RAYBESTOS 581795 Part Description
Manufacturer
Product Description

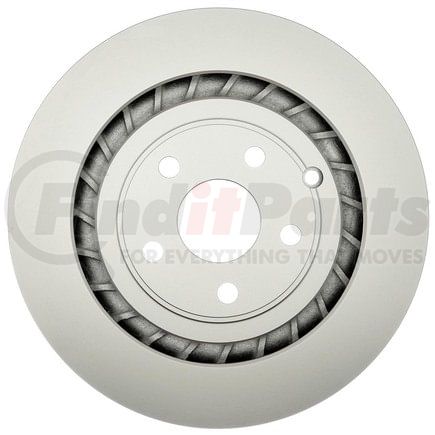

Raybestos Specialty - Street Performance Coated Brake Rotor
Application Summary
2016-2015 Chevrolet SS Rear
Features & Benefits
- Application Specific Enhanced Iron
- Raybestos® Performance Rotors are made with enhanced iron which suppresses noise and keeps brakes running cool, quiet and vibration free.
- Raybestos(R) Performance Rotors are made with enhanced iron which suppresses noise and keeps brakes running cool, quiet and vibration free.
- Cooling Vanes
- The cooling vanes match OE configurations and provide optimal cooling and reduced fade.
- Application Specific Coating
- Depending on the application, Performance Rotors will have one of the following finishes: Black fusion coating on the rotor hat Grey Fusion 4.0® coating on the entire rotor
- Depending on the application, Performance Rotors will have one of the following finishes: Black fusion coating on the rotor hat Grey Fusion 4.0(R) coating on the entire rotor
- Black fusion coating on the rotor hat and Grey Fusion 4.0® coating on the rotor inboard surface and cooling vanes
- Black fusion coating on the rotor hat and Grey Fusion 4.0(R) coating on the rotor inboard surface and cooling vanes
- Turned Finish
- Turned finish minimizes noise and improves responsiveness for smoother stops.
- S-Groove Slot
- Depending on the application, some Raybestos® Performance Rotors are designed with a patented S-Groove Slot.
- Depending on the application, some Raybestos(R) Performance Rotors are designed with a patented S-Groove Slot.
RAYBESTOS 581795 Specifications
Product Attributes
| ABS Tone Ring Included | No |
| Center Hole Diameter | 2.652 IN |
| Center Hole Diameter | 67.35 MM |
| Conventional Or Drum-In-Hat Type Rotor | Conventional |
| Discard Thickness | 1.024 IN |
| Discard Thickness | 26 MM |
| Harmonize Code | 8708.30.5030 |
| Inside Diameter | 9.776 IN |
| Inside Diameter | 248.3 MM |
| Mounting Bolt Hole Circle Diameter | 4.724 IN |
| Mounting Bolt Hole Circle Diameter | 120 MM |
| Mounting Bolt Hole Diameter | 0.638 IN |
| Mounting Bolt Hole Diameter | 16.2 MM |
| Mounting Bolt Hole Quantity | 5 |
| Nominal Thickness | 1.108 IN |
| Nominal Thickness | 28.15 MM |
| Outside Diameter | 14.173 IN |
| Outside Diameter | 360 MM |
| Overall Height | 2.031 IN |
| Overall Height | 51.6 MM |
| Salability Restrictions | No |
| Solid Or Vented Type Rotor | Vented |
| Stud/Lug Hole Quantity | 5 |
| Surface Type | Smooth |
| UNSPSC Code | 25171715 |
Additional Information
| Country of Origin (Primary) | CN |
| Canadian Harmonizing Tariff Code | 8708309990 |
| Harmonized Tariff Code (HTS) | 8708305030 |
| UPC | 00887213190021 |
RAYBESTOS 581795 Cross References
| Brand | Part Number |
|---|---|
| ADVANCE AUTO PARTS | YH200937, YH200937C, YH200937P |
| AutoZone | 72044DL |
| BRAKEBEST | 581795, 581795R |
| CENTRIC | 120.62147, 121.62147, 126.62147SL, 126.62147SR, 127.62147R, 128.62147R, 320.62147F |
| Centric Parts | 120.62147, 121.62147, 126.62147SL, 126.62147SR, 127.62147R, 128.62147R, 320.62147F |
| GM | 92281427 |
| General Motors | 92281427, 92267114 |
| MAGMA PRODUCTS | PSR223149 |
| Qualis | 41333 |
RAYBESTOS 581795 Fits Vehicles
- Chevrolet SS (2015-2017)
