(888) 312-8812 Login SignupRAYBESTOS 680930 Raybestos Specialty - Street Performance Coated Brake Rotor
$10749
Limited availability at this price!
1 Day Lead Time
Get it by Friday, Aug 7
RAYBESTOS 680930 Part Description
Manufacturer
Product Description

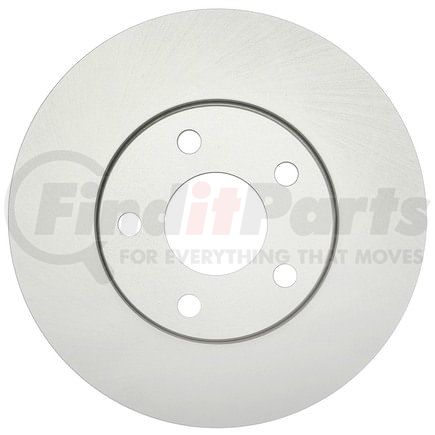

Raybestos Specialty - Street Performance Coated Brake Rotor
Application Summary
2018-2012 Ford Focus Front, 2018-2013 Ford C-Max Front
Features & Benefits
- Application Specific Enhanced Iron
- Raybestos® Performance Rotors are made with enhanced iron which suppresses noise and keeps brakes running cool, quiet and vibration free.
- Raybestos(R) Performance Rotors are made with enhanced iron which suppresses noise and keeps brakes running cool, quiet and vibration free.
- Cooling Vanes
- The cooling vanes match OE configurations and provide optimal cooling and reduced fade.
- Application Specific Coating
- Depending on the application, Performance Rotors will have one of the following finishes: Black fusion coating on the rotor hat Grey Fusion 4.0® coating on the entire rotor
- Depending on the application, Performance Rotors will have one of the following finishes: Black fusion coating on the rotor hat Grey Fusion 4.0(R) coating on the entire rotor
- Black fusion coating on the rotor hat and Grey Fusion 4.0® coating on the rotor inboard surface and cooling vanes
- Black fusion coating on the rotor hat and Grey Fusion 4.0(R) coating on the rotor inboard surface and cooling vanes
- Turned Finish
- Turned finish minimizes noise and improves responsiveness for smoother stops.
- S-Groove Slot
- Depending on the application, some Raybestos® Performance Rotors are designed with a patented S-Groove Slot.
- Depending on the application, some Raybestos(R) Performance Rotors are designed with a patented S-Groove Slot.
RAYBESTOS 680930 Specifications
Product Attributes
| ABS Tone Ring Included | No |
| Center Hole Diameter | 2.5 IN |
| Center Hole Diameter | 63.5 MM |
| Conventional Or Drum-In-Hat Type Rotor | Conventional |
| Directional or Non-Directional Brake Surface | Non-Directional |
| Discard Thickness | 0.906 IN |
| Discard Thickness | 23 MM |
| Harmonize Code | 8708.30.5030 |
| Inside Diameter | 6.248 IN |
| Inside Diameter | 158.7 MM |
| Material | Cast Iron |
| Mounting Bolt Hole Circle Diameter | 4.252 IN |
| Mounting Bolt Hole Circle Diameter | 108 MM |
| Mounting Bolt Hole Diameter | 0.54 IN |
| Mounting Bolt Hole Diameter | 13.7 MM |
| Mounting Bolt Hole Quantity | 5 |
| Nominal Thickness | 0.99 IN |
| Nominal Thickness | 25.15 MM |
| Outside Diameter | 10.945 IN |
| Outside Diameter | 278 MM |
| Overall Height | 1.913 IN |
| Overall Height | 48.6 MM |
| Salability Restrictions | No |
| Solid Or Vented Type Rotor | Vented |
| Stud/Lug Hole Quantity | 5 |
| Surface Type | Smooth |
| UNSPSC Code | 25171715 |
Additional Information
| Country of Origin (Primary) | CN |
| Canadian Harmonizing Tariff Code | 8708309990 |
| Harmonized Tariff Code (HTS) | 8708305030 |
| UPC | 00887213170528 |
RAYBESTOS 680930 Cross References
| Brand | Part Number |
|---|---|
| ADVANCE AUTO PARTS | YH324571, YH324571C, YH324571P |
| AUTOPARTSOURCE | 492124 |
| AUTOXTRA | AX901066 |
| AUTOZONE | 54461, 54461DG, 54461DL |
| Autoxtra | AX901066P |
| BENDIX | PRT6132 |
| BRAKEBEST | 680930, 680930FZN, 680930R, 680930RGS |
| Brembo | 09.A905.11 |
| CENTRIC | 120.61100, 120.61100CRY, 121.61100, 126.61100CSL, 126.61100CSR, 126.61100SL, 126.61100SR, 127.61100L, 127.61100R, 128.61100CL, 128.61100CR, 128.61100L, 128.61100R, 320.61100 |
| Centric Parts | 120.61100, 120.61100CRY, 121.61100, 126.61100CSL, 126.61100CSR, 126.61100SL, 126.61100SR, 127.61100L, 127.61100R, 128.61100CL, 128.61100CR, 128.61100L, 128.61100R, 320.61100 |
| DURA CORP | BR901066, BR90106602 |
| DuraGo | 901066, BR901066, BR90106602 |
| FORD | BV6Z1125A, BV6Z1125E |
| Ford | GU2Z1V125F |
| MAGMA PRODUCTS | PSR203085 |
| MONROE BRAKES | BD180487 |
| MOTORCRAFT | BRRF27, BRRF320 |
| NEOTEK | 1071108GF |
| NEWTEK AUTOMOTIVE | 54181 |
| Newtek Automotive USA | 54181 |
| POWERSTOP | AR85146EVC |
| PROMAX | 14-54181 |
| PRONTO | BR901066 |
| Qualis | 42279 |
| TopNotch | TN680930GEO |
| UAP | R61100 |
| WAGNER BRAKE | BD180487 |
| WINHERE | 6621291 |
| WORLDPAC | 1407-324571, 1427-731794 |
RAYBESTOS 680930 Fits Vehicles
- Volvo C30 (2012-2013)
- Volvo S40 (2004-2012)
- Ford C-Max (2013-2018)
- Ford Focus (2012-2018)
