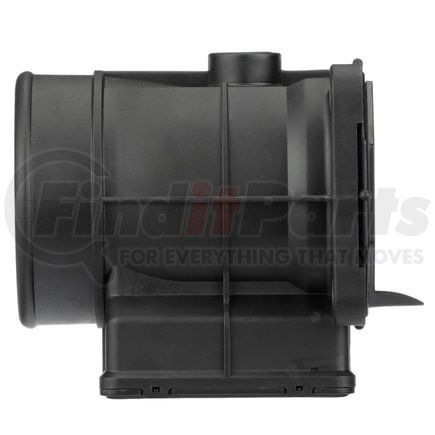

(888) 312-8812 Login SignupDELPHI AF10319 Mass Air Flow Sensor
MSRP: $278.51
$20499
Save $73.52
Limited availability at this price!
In Stock
Get it by Wednesday, Dec 17
DELPHI AF10319 Part Description
DELPHI AF10319 Specifications
Product Attributes
| Package Contents | Mass Air Flow Sensor - Complete Assembly |
| Item Grade | Premium |
| Color | Black |
| Housing Included | Yes |
| Inlet Connection Diameter | 2.697 IN |
| Inlet Connection Diameter | 68.5 MM |
| Outlet Connection Diameter | 3.27 IN |
| Outlet Connection Diameter | 83 MM |
| Terminal Type | Blade |
| Mounting Hardware Included | No |
| Universal Or Specific Fit | Specific |
| Grade Type | Regular |
| Connector Quantity | 1 |
| Connector Shape | Rectangle |
| Mounting Hole Quantity | 4 |
| Housing Material | Plastic |
| Terminal Quantity | 7 |
| Connector Gender | Female |
| Terminal Gender | Male |
| Wiring Harness Included | No |
| Mounting Type | Bolt-On |
| Mounting Bracket Included | No |
| Sensor Casing Length | 129 MM |
| Sensor Casing Width | 132 MM |
| Voltage | 12.0 2H |
| Gasket Or Seal Included | Yes |
| Bolt Hole Center To Bolt Hole Center | 62.00 MM |
| Mounting Hole Diameter | 6.5 MM |
| Seal Outside Diameter | 118 mm |
| Seal Quantity | 1 |
| Sensor Casing Length | 5.0 IN |
| Sensor Casing Width | 5.1 IN |
| Bolt Hole Center To Bolt Hole Center | 2.40 IN |
| Mounting Hole Diameter | 0.2 IN |
| Seal Outside Diameter | 4.6 IN |
Additional Information
| Warranty Distance UOM | DH |
| Warranty Distance | 12000 |
| Harmonized Tariff Code (Schedule B) | 9026800000 |
| Warranty Time UOM | MO |
| Warranty Time | 12 |
| Country of Origin (Primary) | CN |
| Harmonized Tariff Code (HTS) | 9026802000 |
| UPC | 00689604244630 |
| VMRS Code | 045021019 |
| UNSPSC | 41111931 |
DELPHI AF10319 Part Interchanges
| Brand | Part Number |
|---|---|
| Beck/Arnley | 157-0277, 1580840 |
| Spectra Premium | MA222, MA363 |
| ACDelco | 2133445 |
| Carquest | MQ7235 |
| Richporter | MA363 |
| BWD | 221140 |
| Chrysler | MD336501 |
| Duralast | DL-6140 |
| CARDONE New | 86-60013 |
| Mitsubishi | MD336501, MR336501 |
| CARDONE Reman | 74-60013 |
| Wells | SU5265 |
| Standard Motor Products | MF21140 |
| NAPA Reman Computers | MAF660013, XTP460013 |
| WAI | MAF20081T |
| N/A | 245-1139, MF21140N |
DELPHI AF10319 Fits Vehicles
- Mitsubishi Outlander (2003)
- Mitsubishi Eclipse (2000-2005)
- Mitsubishi Montero Sport (1999-2001, 2003)
- Mitsubishi Galant (1999-2003)
- Dodge Stratus (2001-2005)
- Chrysler Sebring (2001-2005)
