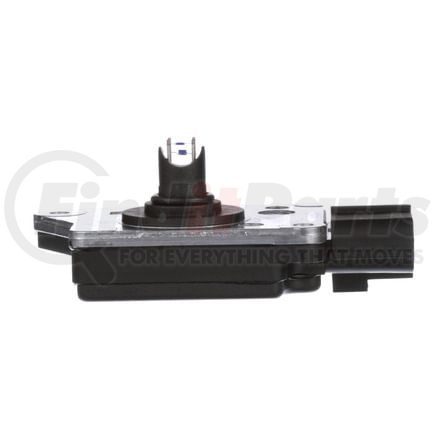

(888) 312-8812 Login SignupDELPHI AF10351 Mass Air Flow Sensor
$17449
Limited availability at this price!
5 Day Lead Time
Get it by Friday, Jan 2
DELPHI AF10351 Part Description
DELPHI AF10351 Specifications
Product Attributes
| Item Grade | Standard Replacement |
| Package Contents | Mass Air Flow Sensor - Probe Only |
| Color | Black and Silver |
| Housing Included | No |
| Terminal Type | Blade |
| Mounting Hardware Included | No |
| Universal Or Specific Fit | Specific |
| Grade Type | Regular |
| Connector Quantity | 1 |
| Connector Shape | Rectangle |
| Mounting Hole Quantity | 2 |
| Terminal Quantity | 4 |
| Connector Gender | Female |
| Terminal Gender | Male |
| Wiring Harness Included | No |
| Mounting Type | Bolt-On |
| Mounting Bracket Included | No |
| Sensor Casing Length | 92 MM |
| Sensor Casing Width | 50.5 MM |
| Voltage | 12.0 2H |
| Gasket Or Seal Included | Yes |
| Bolt Hole Center To Bolt Hole Center | 68.70 MM |
| Mounting Hole Diameter | 0.1 IN |
| Seal Outside Diameter | 16 mm |
| Seal Quantity | 1 |
| Sensor Casing Length | 3.6 IN |
| Sensor Casing Width | 1.9 IN |
| Bolt Hole Center To Bolt Hole Center | 2.70 IN |
| Mounting Hole Diameter | 4.5 MM |
| Seal Outside Diameter | 0.6 IN |
Additional Information
| Warranty Distance UOM | DH |
| Warranty Distance | 12000 |
| Harmonized Tariff Code (Schedule B) | 9026800000 |
| Warranty Time UOM | MO |
| Warranty Time | 12 |
| Country of Origin (Primary) | US |
| Harmonized Tariff Code (HTS) | 9026802000 |
| UPC | 00689604266601 |
| VMRS Code | 045021019 |
| UNSPSC | 41111931 |
DELPHI AF10351 Part Interchanges
| Brand | Part Number |
|---|---|
| Motorcraft | AFLS-187RM |
| Spectra Premium | MA196 |
| Richporter | MA196 |
| CARDONE New | 86-9556 |
| Ford | F72Z 12B579-ACRM |
| CARDONE Reman | 74-9556 |
| NAPA Reman Computers | MAF69556, XTP49556 |
| WAI | MAF10117 |
| N/A | MQ6224 |
DELPHI AF10351 Fits Vehicles
- Ford Windstar (1997-1998)
DELPHI AF10351 Customer Reviews
No reviews yet
Be the first to review this product!
