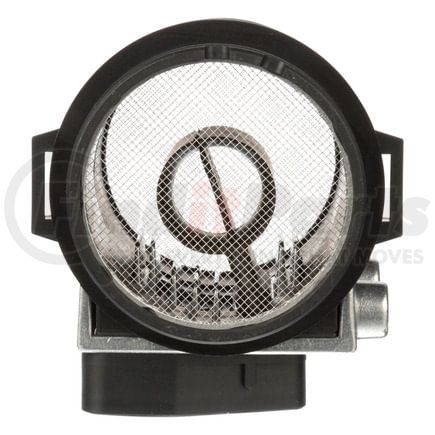

(888) 312-8812 Login SignupDELPHI AF10320 Mass Air Flow Sensor
MSRP: $294.02
$27049
Save $23.53
Limited availability at this price!
In Stock
Get it by Thursday, Feb 5
DELPHI AF10320 Part Description
Manufacturer
Product Description
Mass Air Flow Sensor
Features & Benefits
- Delphi mass air flow sensors are the global benchmark for accuracy and signal noise
- Delphi mass air flow sensors feature high quality sensing elements for outstanding performance over a wide range of ambient temperatures
- Delphi is a manufacturer of OE mass air flow sensors since their first use over 30 years ago
- All parts are calibrated and tested to match the OE part
- Probe solution offered wherever possible to reduce repair time by eliminating the need to replace the flow tube
- Delphi OE technology validated to match the vehicle applications
DELPHI AF10320 Specifications
Product Attributes
| Package Contents | Mass Air Flow Sensor - Complete Assembly |
| Item Grade | Premium |
| Color | Black and Silver |
| Housing Included | Yes |
| Inlet Connection Diameter | 3.15 IN |
| Inlet Connection Diameter | 80 MM |
| Outlet Connection Diameter | 80 MM |
| Outlet Connection Diameter | 3.15 IN |
| Terminal Type | Pin |
| Mounting Hardware Included | No |
| Universal Or Specific Fit | Specific |
| Grade Type | Standard Replacement |
| Connector Quantity | 1 |
| Connector Shape | Oval |
| Housing Material | Aluminum, Plastic |
| Terminal Quantity | 5 |
| Connector Gender | Female |
| Terminal Gender | Male |
| Wiring Harness Included | No |
| Mounting Type | Clip |
| Mounting Bracket Included | No |
| Sensor Casing Length | 129 MM |
| Sensor Casing Width | 102 MM |
| Voltage | 12.0 2H |
| Gasket Or Seal Included | No |
| Bolt Hole Center To Bolt Hole Center | 55 MM |
| Seal Quantity | 0 |
| Sensor Casing Length | 5.0 IN |
| Sensor Casing Width | 4.0 IN |
| Bolt Hole Center To Bolt Hole Center | 2.1 IN |
| Intake Air Temperature (IAT) Included | No |
Additional Information
| Harmonized Tariff Code (HTS) | 9026802000 |
| Warranty Distance UOM | DH |
| Warranty Distance | 12000 |
| Harmonized Tariff Code (Schedule B) | 9026800000 |
| Warranty Time UOM | MO |
| Warranty Time | 12 |
| Country of Origin (Primary) | CN |
| UPC | 00689604264850 |
| VMRS Code | 045021019 |
| UNSPSC | 41111931 |
DELPHI AF10320 Cross References
| Brand | Part Number |
|---|---|
| ACDelco | 213161, 213163 |
| Airtex | 5S2640 |
| BWD | 25877M, 27854, 57878 |
| Blue Streak Electronics New | MF4712N |
| CARDONE Reman | 74-4712 |
| Carquest | MQ7246 |
| Duralast | DL-6014 |
| GLOBAL PARTS DISTRIBUTORS | 1813248 |
| General Motors | 10055877, 14094712 |
| N/A | 245-1006, MF5877N |
| NAPA Reman Computers | XTP44712 |
| NGK SPARK PLUGS | MG0064 |
| NTK | MG0064 |
| Richporter | MA157 |
| Spectra Premium | MA157 |
| Standard Motor Products | MF4712, MF5877 |
| Wells | SU145 |
DELPHI AF10320 Fits Vehicles
- Pontiac Firebird (1986-1989)
- Chevrolet Corvette (1986-1989)
- Chevrolet Camaro (1986-1989)
