(888) 312-8812 Login SignupRAYBESTOS 980402FZN Raybestos Element3 Coated Brake Rotor
$48.05
MSRP Pricing shown.
Out of Stock
We cannot fulfill orders for this part at this time. Please check back later or request a stock notification to receive an email.
We may have similar parts for sale. Search Alternatives >

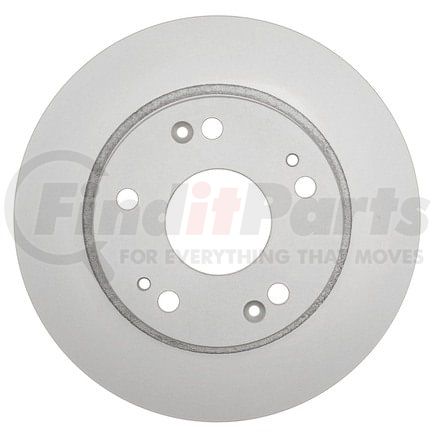

RAYBESTOS 980402FZN Part Description
Manufacturer
Product Description
Raybestos Element3 Coated Brake Rotor
Application Summary
2015-2006 Honda Civic Rear, 2015-2013 Acura ILX Rear, 2011-2006 Acura CSX Rear
Features & Benefits
- Grey Fusion 4.0(R) Coating
- Grey Fusion 4.0® Coating
- Grey Fusion 4.0(R) coating provides optimal corrosion resistance and faster brake jobs.
- Grey Fusion 4.0® coating provides optimal corrosion resistance and faster brake jobs.
- RPT(R) Rust Prevention Technology
- RPT® Rust Prevention Technology
- RPT(R) Rust Prevention Technology for long lasting rust prevention.
- RPT® Rust Prevention Technology for long lasting rust prevention.
- Cooling Vanes
- Cooling vanes are coated to ensure vanes remain clear of rust and corrosion for optimal airflow and cooling.
- OE Matched
- OE Matched precision and performance.
- Non-Directional Finish
- A non-directional ground finish provides a product that is ready to install right out of the box.
RAYBESTOS 980402FZN Specifications
Product Attributes
| ABS Tone Ring Included | No |
| Center Hole Diameter | 2.524 IN |
| Center Hole Diameter | 64.1 MM |
| Conventional Or Drum-In-Hat Type Rotor | Conventional |
| Directional or Non-Directional Brake Surface | Non-Directional |
| Discard Thickness | 0.315 IN |
| Discard Thickness | 8 MM |
| Harmonize Code | 8708.30.5030 |
| Material | Cast Iron |
| Mounting Bolt Hole Circle Diameter | 4.5 IN |
| Mounting Bolt Hole Circle Diameter | 114.3 MM |
| Mounting Bolt Hole Diameter | 0.495 IN |
| Mounting Bolt Hole Diameter | 12.55 MM |
| Mounting Bolt Hole Quantity | 5 |
| Nominal Thickness | 0.353 IN |
| Nominal Thickness | 8.95 MM |
| Outside Diameter | 10.234 IN |
| Outside Diameter | 259.95 MM |
| Overall Height | 1.658 IN |
| Overall Height | 42.1 MM |
| Salability Restrictions | No |
| Solid Or Vented Type Rotor | Solid |
| Stud/Lug Hole Quantity | 5 |
| Surface Type | Smooth |
| UNSPSC Code | 25171715 |
Additional Information
| Country of Origin (Primary) | CN |
| Harmonized Tariff Code (HTS) | 8708305030 |
| Canadian Harmonizing Tariff Code | 8708309990 |
| UPC | 00887213092554 |
RAYBESTOS 980402FZN Cross References
| Brand | Part Number |
|---|---|
| ADVANCE AUTO PARTS | YH145765, YH145765C, YH145765P |
| ADVICS | C6R107U |
| AUTOPARTSOURCE | 572680 |
| AUTOXTRA | AX900648 |
| AUTOZONE | 31420, 31420DG |
| AutoZone | 31420DL |
| Autoxtra | AX900648P |
| BENDIX | PRT5765 |
| BOSCH | 26010758 |
| BRAKEBEST | 26010758, 980402, 980402FZN, 980402R, 980402RGS |
| BREMBO | 08.A147.10 |
| Brembo | 08.A147.11, 08.A147.1X |
| CENTRIC | 120.40040, 121.40040, 125.40040, 126.40040CSL, 126.40040CSR, 126.40040SL, 126.40040SR, 127.40040CL, 127.40040CR, 127.40040L, 127.40040R, 128.40040CL, 128.40040CR, 128.40040L, 128.40040R, 227.40040L, 227.40040R, 320.40040, 321.40040, 120.4004 |
| Casting Numbers | 211764-C, 326288 |
| Centric Parts | 125.40040, 120.40040, 121.40040, 126.40040CSL, 126.40040CSR, 126.40040SL, 126.40040SR, 127.40040CL, 127.40040CR, 127.40040L, 127.40040R, 128.40040CL, 128.40040CR, 128.40040L, 128.40040R, 227.40040L, 227.40040R, 320.40040, 321.40040 |
| DURA CORP | BR31420, BR900648, BR90064802 |
| DuraGo | 900648, BR31227, BR3122702, BR31420, BR900648, BR90064802, BR900648-01, BR900648-02 |
| Dynamic Friction Company | 604-59024 |
| HONDA | 42510SMGE20, 42510SNAA00, 42510SNEA00, 42510TR3A00 |
| MONROE BRAKES | BD126413 |
| NAPA BRAKES | SDK6070 |
| NEWTEK AUTOMOTIVE | 31420 |
| Newtek Automotive USA | 31420 |
| POWERSTOP | JBR798EVC |
| PROMAX | 14-31420, 20-31420 |
| Parts Master | 125605 |
| QUALIS | 31420 |
| Qualis | 31227 |
| TRW | 4837 |
| TopNotch | TN980402GEO |
| UAP | 2031420, 31420 |
| Ultra Brake | HO-5021 |
| WABCO | PS126413 |
| WABCO - Archived | PS126413 |
| WAGNER BRAKE | BD126413, BD126413E |
| WINHERE | 661697 |
| WORLDPAC | 1407-75135, 1407-78722, 1427-530096 |
RAYBESTOS 980402FZN Fits Vehicles
- Honda Prelude (1997-2001)
- Acura ILX (2013-2015)
- Acura CSX (2006-2011)
- Honda Civic (2006-2015)
