RAYBESTOS 780518FZN Part Description
Manufacturer
Product Description

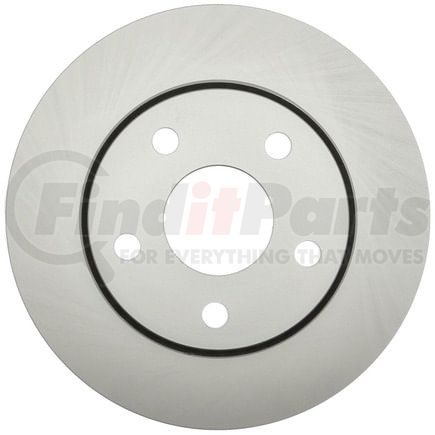

Raybestos Element3 Coated Brake Rotor
Application Summary
2017-2007 Jeep Wrangler Front, 2018 Jeep Wrangler JK Front
Features & Benefits
- Grey Fusion 4.0(R) Coating
- Grey Fusion 4.0® Coating
- Grey Fusion 4.0(R) coating provides optimal corrosion resistance and faster brake jobs.
- Grey Fusion 4.0® coating provides optimal corrosion resistance and faster brake jobs.
- RPT(R) Rust Prevention Technology
- RPT® Rust Prevention Technology
- RPT(R) Rust Prevention Technology for long lasting rust prevention.
- RPT® Rust Prevention Technology for long lasting rust prevention.
- Cooling Vanes
- Cooling vanes are coated to ensure vanes remain clear of rust and corrosion for optimal airflow and cooling.
- OE Matched
- OE Matched precision and performance.
- Non-Directional Finish
- A non-directional ground finish provides a product that is ready to install right out of the box.
RAYBESTOS 780518FZN Specifications
Product Attributes
| ABS Tone Ring Included | No |
| Center Hole Diameter | 2.84 IN |
| Center Hole Diameter | 72.15 MM |
| Conventional Or Drum-In-Hat Type Rotor | Conventional |
| Directional or Non-Directional Brake Surface | Non-Directional |
| Discard Thickness | 1.039 IN |
| Discard Thickness | 26.4 MM |
| Harmonize Code | 8708.30.5030 |
| Material | Cast Iron |
| Mounting Bolt Hole Circle Diameter | 5 IN |
| Mounting Bolt Hole Circle Diameter | 127 MM |
| Mounting Bolt Hole Diameter | 0.654 IN |
| Mounting Bolt Hole Diameter | 16.6 MM |
| Mounting Bolt Hole Quantity | 5 |
| Nominal Thickness | 1.102 IN |
| Nominal Thickness | 28 MM |
| Outside Diameter | 11.89 IN |
| Outside Diameter | 302 MM |
| Overall Height | 2.169 IN |
| Overall Height | 55.1 MM |
| Salability Restrictions | No |
| Solid Or Vented Type Rotor | Vented |
| Stud/Lug Hole Quantity | 5 |
| UNSPSC Code | 25171715 |
Additional Information
| Country of Origin (Primary) | CN |
| Canadian Harmonizing Tariff Code | 8708309990 |
| Harmonized Tariff Code (HTS) | 8708305030 |
| UPC | 00887213143379 |
RAYBESTOS 780518FZN Cross References
| Brand | Part Number |
|---|---|
| ADVANCE AUTO PARTS | YH145725, YH145725C, YH145725P |
| ADVICS | P6F205U |
| AUTOPARTSOURCE | 591245 |
| AUTOXTRA | AX900324 |
| AUTOZONE | 53040, 53040DG, DL53040 |
| Autoxtra | AX900324P |
| BENDIX | PRT5725 |
| BOSCH | 16010258 |
| BRAKEBEST | 16010258, 780518, 780518FZN, 780518PER, 780518R, 780518RGS |
| CENTRIC | 120.67068, 120.67068CRY, 121.67068, 126.67068CSL, 126.67068CSR, 126.67068SL, 126.67068SR, 127.67068CL, 127.67068CR, 127.67068L, 127.67068R, 128.67068CL, 128.67068CR, 128.67068L, 128.67068R, 227.67068L, 227.67068R, 320.67068, 321.67068 |
| CHRYSLER | 52060137AB |
| Casting Numbers | 326353 |
| Centric Parts | 120.67068, 120.67068CRY, 121.67068, 126.67068CSL, 126.67068CSR, 126.67068SL, 126.67068SR, 127.67068CL, 127.67068CR, 127.67068L, 127.67068R, 128.67068CL, 128.67068CR, 128.67068L, 128.67068R, 227.67068L, 227.67068R, 320.67068, 321.67068 |
| DURA CORP | BR53040, BR900324, BR90032402 |
| DuraGo | 60374, 900324, BR60374, BR900324, BR90032402, BR900324-02 |
| Dynamic Friction Company | 604-42030 |
| Eurorotor | 51234 |
| MONROE BRAKES | BD126540 |
| NEWTEK AUTOMOTIVE | 53040 |
| Newtek Automotive USA | 53040 |
| Omnicraft | QBRR104 |
| POWERSTOP | AR8780EVC |
| PROMAX | 14-53040 |
| Parts Master | 900324 |
| Qualis | 53040 |
| TRW | 6037 |
| TopNotch | TN780518GEO |
| UAP | 53040 |
| Ultra Brake | 51234 |
| WABCO | PS900324 |
| WABCO - Archived | PS900324 |
| WAGNER BRAKE | BD126540, BD126540E |
| WINHERE | 6620793 |
| WORLDPAC | 1407-79997, 1427-731784 |
RAYBESTOS 780518FZN Fits Vehicles
- Jeep Wrangler JK (2018)
- Jeep Wrangler (2007-2018)
