(888) 312-8812 Login SignupRAYBESTOS 780145FZN Raybestos Element3 Coated Brake Rotor
$63.78
MSRP Pricing shown.
Out of Stock
We cannot fulfill orders for this part at this time. Please check back later or request a stock notification to receive an email.
We may have similar parts for sale. Search Alternatives >
RAYBESTOS 780145FZN Part Description
Manufacturer
Product Description

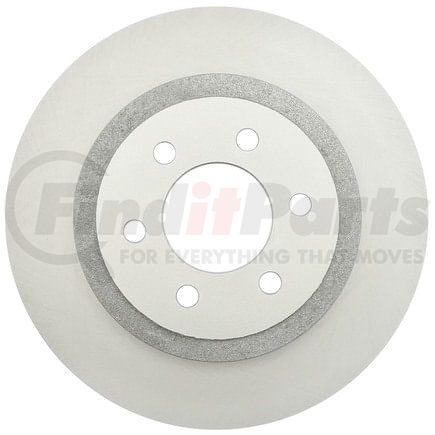

Raybestos Element3 Coated Brake Rotor
Application Summary
2004-2003 Dodge Dakota Front
Features & Benefits
- Grey Fusion 4.0® Coating
- Grey Fusion 4.0(R) Coating
- Grey Fusion 4.0® coating provides optimal corrosion resistance and faster brake jobs.
- Grey Fusion 4.0(R) coating provides optimal corrosion resistance and faster brake jobs.
- RPT® Rust Prevention Technology
- RPT(R) Rust Prevention Technology
- RPT® Rust Prevention Technology for long lasting rust prevention.
- RPT(R) Rust Prevention Technology for long lasting rust prevention.
- Cooling Vanes
- Cooling vanes are coated to ensure vanes remain clear of rust and corrosion for optimal airflow and cooling.
- OE Matched
- OE Matched precision and performance.
- Non-Directional Finish
- A non-directional ground finish provides a product that is ready to install right out of the box.
RAYBESTOS 780145FZN Specifications
Product Attributes
| ABS Tone Ring Included | No |
| Center Hole Diameter | 2.89 IN |
| Center Hole Diameter | 73.4 MM |
| Conventional Or Drum-In-Hat Type Rotor | Conventional |
| Directional or Non-Directional Brake Surface | Non-Directional |
| Discard Thickness | 0.965 IN |
| Discard Thickness | 24.5 MM |
| Harmonize Code | 8708.30.5030 |
| Material | Cast Iron |
| Mounting Bolt Hole Circle Diameter | 4.5 IN |
| Mounting Bolt Hole Circle Diameter | 114.3 MM |
| Mounting Bolt Hole Diameter | 0.546 IN |
| Mounting Bolt Hole Diameter | 13.85 MM |
| Mounting Bolt Hole Quantity | 6 |
| Nominal Thickness | 1.025 IN |
| Nominal Thickness | 26.05 MM |
| Outside Diameter | 12.125 IN |
| Outside Diameter | 307.95 MM |
| Overall Height | 2.475 IN |
| Overall Height | 62.85 MM |
| Salability Restrictions | No |
| Solid Or Vented Type Rotor | Solid |
| Stud/Lug Hole Quantity | 6 |
| UNSPSC Code | 25171715 |
Additional Information
| Country of Origin (Primary) | CN |
| Canadian Harmonizing Tariff Code | 8708309990 |
| Harmonized Tariff Code (HTS) | 8708305030 |
| UPC | 00887213091571 |
RAYBESTOS 780145FZN Cross References
| Brand | Part Number |
|---|---|
| ADVANCE AUTO PARTS | 145454, YH145454, YH145454C, YH145454P |
| AUTOPARTSOURCE | 491270 |
| AUTOZONE | 53014, 53014DG, DL53014 |
| BENDIX | 145454 |
| BOSCH | 16010174 |
| BRAKEBEST | 16010174, 780145, 780145FZN, 780145R, 780145RGS, 81-126042, BD126042 |
| BREMBO | 27380 |
| CENTRIC | 120.67057, 121.67057, 125.67057, 126.67057CSL, 126.67057CSR, 126.67057SL, 126.67057SR, 127.67057CL, 127.67057CR, 127.67057L, 127.67057R, 128.67057CL, 128.67057CR, 128.67057L, 128.67057R, 320.67057, 320.67057F |
| CENTURY | C7112 |
| CHRYSLER | 52010248AA, 52010248AB |
| Casting Numbers | 204202736, 211493-C, 325621 |
| Centric Parts | 120.67057, 121.67057, 125.67057, 126.67057CSL, 126.67057CSR, 126.67057SL, 126.67057SR, 127.67057CL, 127.67057CR, 127.67057L, 127.67057R, 128.67057CL, 128.67057CR, 128.67057L, 128.67057R, 320.67057, 320.67057F |
| DURA CORP | BR53014, BR90160 |
| DuraGo | BR53014 |
| GREN | 710102 |
| GUARDIAN | 52-126042 |
| MIGHTY DISTRIBUTING SYSTEM | 53014 |
| NEWTEK AUTOMOTIVE | 53014 |
| Newtek Automotive USA | 53014 |
| Omnicraft | QBRR27 |
| POWERSTOP | AR8760EVC |
| PROMAX | 14-53014 |
| QUALIS | 53014 |
| QUALITY BRAND | Q4173 |
| UAP | 53014 |
| VIPAR - VEHICLE INDUSRTY PARTS & MANUFACTURING | X51528 |
| WABCO | PS53014 |
| WABCO - Archived | PS53014 |
| WAGNER BRAKE | BD126042 |
| WINHERE | 6620320 |
| WORLDPAC | 1407-25855 |
| Wagner Brake | BD126042E |
RAYBESTOS 780145FZN Fits Vehicles
- Dodge Dakota (2003-2004)
