Raybestos 680976FZN - Raybestos Element3 Coated Brake Rotor
$10699
MSRP: $189.94
Save: $82.95
In stock
limited availability at this price!
Pay over 3-12 months with
. Learn more
. Learn more
RAYBESTOS part description
Product Description

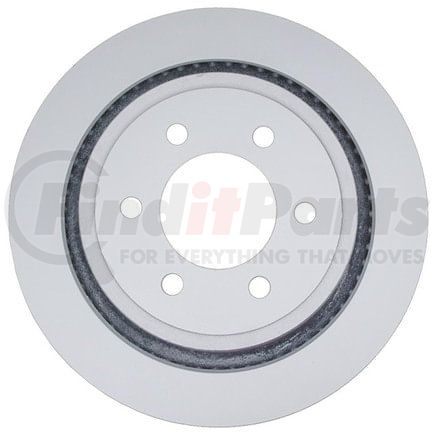

Raybestos Element3 Coated Brake Rotor
Application Summary
2018-2012 Ford F-150 Rear, 2014-2012 Ford Lobo Rear
Product Attributes
| ABS Tone Ring Included | No |
| Center Hole Diameter | 3.55 IN |
| Center Hole Diameter | 90.15 MM |
| Conventional Or Drum-In-Hat Type Rotor | Drum-In-Hat |
| Directional or Non-Directional Brake Surface | Non-Directional |
| Discard Thickness | 0.906 IN |
| Discard Thickness | 23 MM |
| Harmonize Code | 8708.30.5030 |
| Inside Diameter | 10.181 IN |
| Inside Diameter | 258.6 MM |
| Material | Cast Iron |
| Mounting Bolt Hole Circle Diameter | 5.315 IN |
| Mounting Bolt Hole Circle Diameter | 135 MM |
| Mounting Bolt Hole Diameter | 0.61 IN |
| Mounting Bolt Hole Diameter | 15.5 MM |
| Mounting Bolt Hole Quantity | 6 |
| Nominal Thickness | 0.984 IN |
| Nominal Thickness | 25 MM |
| Outside Diameter | 13.705 IN |
| Outside Diameter | 348.1 MM |
| Overall Height | 3.142 IN |
| Overall Height | 79.8 MM |
| Salability Restrictions | No |
| Solid Or Vented Type Rotor | Vented |
| Stud/Lug Hole Quantity | 6 |
| Surface Type | Smooth |
| UNSPSC Code | 25171715 |
Additional Information
| Country of Origin (Primary) | CN |
| UPC | 00887213091328 |
Part Interchanges
- Ford CL3Z2C026A
- Ford CL3Z2C026C
- Ford CL3Z2C026F
- Ford FL3Z2C026C
- Bosch 20011539
- Wagner Brake BD180511
- Wagner Brake BD180511E
- Wagner Brake BD180512
- Wagner Brake BD180512E
- Bendix PRT6177
- Bendix SDR6178
- BrakeBest 20011539
- BrakeBest 680976
- BrakeBest 680976FZN
- BrakeBest 680976R
- Centric Parts 120.65135
- Centric Parts 120.65135CRY
- Centric Parts 121.65135
- Centric Parts 126.65135CSL
- Centric Parts 126.65135CSR
- Centric Parts 126.65135SL
- Centric Parts 126.65135SR
- Centric Parts 127.65135L
- Centric Parts 127.65135R
- Centric Parts 128.65135CL
- Centric Parts 128.65135CR
- Centric Parts 128.65135L
- Centric Parts 128.65135R
- Centric Parts 227.65135L
- Centric Parts 227.65135R
- Centric Parts 320.65135
- AutoZone 75007DG
- Advance Auto Parts YH421758
- Autoxtra AX901114
- Dura Corp BR54186
- Dura Corp BR901114
- Dura Corp BR90111402
- Newtek Automotive USA 54186
- Worldparts WS1-154186
- Promax 14-54186
- UAP R65135
- Motorcraft BRRF199
- Motorcraft BRRF296
- Motorcraft NBRR9
- Eurorotor 54454
- Ultra Brake 54454
- DuraGo BR901114
- DuraGo BR90111402
- Parts Master 901114
- Qualis 42281
- Advance Auto Parts YH421758P
RAYBESTOS 680976FZN Cross Reference
We have 41 alternatives for the 680976FZN by RAYBESTOS:
- BENDIX PRT6177
- BENDIX SDR6178
- BOSCH 20011539
- FORD CL3Z2C026A
- FORD CL3Z2C026C
- FORD CL3Z2C026F
- FORD FL3Z2C026C
- ADVANCE AUTO PARTS YH421758
- AUTOXTRA AX901114
- AUTOZONE 75007DG
- BRAKEBEST 20011539
- BRAKEBEST 680976
- BRAKEBEST 680976FZN
- BRAKEBEST 680976R
- CENTRIC 120.65135
- CENTRIC 120.65135CRY
- CENTRIC 121.65135
- CENTRIC 126.65135CSL
- CENTRIC 126.65135CSR
- CENTRIC 126.65135SL
- CENTRIC 126.65135SR
- CENTRIC 127.65135L
- CENTRIC 127.65135R
- CENTRIC 128.65135CL
- CENTRIC 128.65135CR
- CENTRIC 128.65135L
- CENTRIC 128.65135R
- CENTRIC 227.65135L
- CENTRIC 227.65135R
- CENTRIC 320.65135
- DURA CORP BR54186
- DURA CORP BR901114
- DURA CORP BR90111402
- NEWTEK AUTOMOTIVE 54186
- PROMAX 14-54186
- UAP R65135
- WAGNER BRAKE BD180511
- WAGNER BRAKE BD180511E
- WAGNER BRAKE BD180512
- WAGNER BRAKE BD180512E
- WORLDPARTS WS1-154186
Fits Vehicles
- Ford Lobo (2012-2014)
- Ford F-150 (2012-2018)
