(888) 312-8812 Login SignupRAYBESTOS 96795FZN Raybestos Element3 Coated Brake Rotor
$89.18
MSRP Pricing shown.
Out of Stock
We cannot fulfill orders for this part at this time. Please check back later or request a stock notification to receive an email.
We may have similar parts for sale. Search Alternatives >
RAYBESTOS 96795FZN Part Description
Manufacturer
Product Description

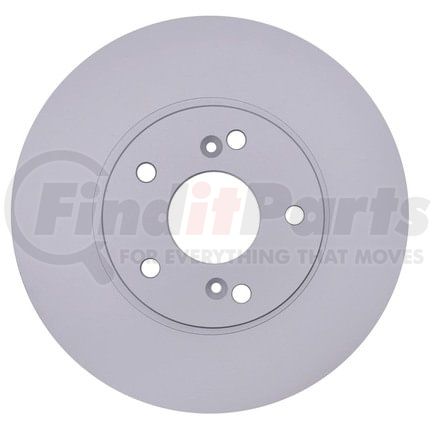

Raybestos Element3 Coated Brake Rotor
Application Summary
2012-2003 Honda Accord Front, 2008-2003 Honda Pilot Front, 2004-1999 Honda Odyssey Front, 2008-2006,2003-1999 Acura TL Front, 2006-2001 Acura MDX Front, 2008-2004 Acura TSX Front, 2003-2001 Acura CL Front
Features & Benefits
- Grey Fusion 4.0® Coating
- Grey Fusion 4.0(R) Coating
- Grey Fusion 4.0® coating provides optimal corrosion resistance and faster brake jobs.
- Grey Fusion 4.0(R) coating provides optimal corrosion resistance and faster brake jobs.
- RPT® Rust Prevention Technology
- RPT(R) Rust Prevention Technology
- RPT® Rust Prevention Technology for long lasting rust prevention.
- RPT(R) Rust Prevention Technology for long lasting rust prevention.
- Cooling Vanes
- Cooling vanes are coated to ensure vanes remain clear of rust and corrosion for optimal airflow and cooling.
- OE Matched
- OE Matched precision and performance.
- Non-Directional Finish
- A non-directional ground finish provides a product that is ready to install right out of the box.
RAYBESTOS 96795FZN Specifications
Product Attributes
| ABS Tone Ring Included | No |
| Center Hole Diameter | 2.53 IN |
| Center Hole Diameter | 64.25 MM |
| Conventional Or Drum-In-Hat Type Rotor | Conventional |
| Directional or Non-Directional Brake Surface | Non-Directional |
| Discard Thickness | 1.024 IN |
| Discard Thickness | 26 MM |
| Harmonize Code | 8708.30.5030 |
| Material | Cast Iron |
| Mounting Bolt Hole Circle Diameter | 4.5 IN |
| Mounting Bolt Hole Circle Diameter | 114.3 MM |
| Mounting Bolt Hole Diameter | 0.5 IN |
| Mounting Bolt Hole Diameter | 12.7 MM |
| Mounting Bolt Hole Quantity | 5 |
| Nominal Thickness | 1.1 IN |
| Nominal Thickness | 27.95 MM |
| Outside Diameter | 11.81 IN |
| Outside Diameter | 299.95 MM |
| Overall Height | 1.86 IN |
| Overall Height | 47.25 MM |
| Salability Restrictions | No |
| Solid Or Vented Type Rotor | Vented |
| Stud/Lug Hole Quantity | 5 |
| UNSPSC Code | 25171715 |
Additional Information
| Country of Origin (Primary) | CN |
| Canadian Harmonizing Tariff Code | 8708309990 |
| Harmonized Tariff Code (HTS) | 8708305030 |
| UPC | 00887213091960 |
RAYBESTOS 96795FZN Cross References
| Brand | Part Number |
|---|---|
| ADVANCE AUTO PARTS | 145287, N1000292640BRC, YH145287, YH145287C, YH145287P |
| ADVICS | C6F084U |
| ALTROM IMPORTS | A31275 |
| AMERICAN REMANUFACTURED | 89-08050 |
| AUTOPARTSOURCE | 572450 |
| AUTOSPECIALTY | JBR923, JBR923E |
| AUTOXTRA | 125674, 8096795, AX31275 |
| AUTOZONE | 31275, 31275DG, 31275DL, DL31275 |
| Autoxtra | AX31275P |
| BECK/ARNLEY | 083-2822 |
| BENDIX | 145287 |
| BOSCH | 26010733 |
| BRAKEBEST | 26010733, 81-125674, 96795, 96795FZN, 96795PER, 96795R, 96795RGS, BD125674 |
| BREMBO | 09.8840.10, 25548 |
| CENTRIC | 120.40046, 120.40046CRY, 121.40046, 125.40046, 125.40046CRY, 126.40046SL, 126.40046SR, 126.40046CSL, 126.40046CSR, 127.40046CL, 127.40046CR, 127.40046L, 127.40046R, 128.40046CL, 128.40046CR, 128.40046L, 128.40046R, 227.40046L, 227.40046R, 228.40046DL, 228.40046DR, 320.40046, 321.40046 |
| CONTINENTAL-CONTITECH | CW28706 |
| Casting Numbers | 325491 |
| Centric Parts | 120.40046CRY, 125.40046, 125.40046CRY, 120.40046, 121.40046, 126.40046CSL, 126.40046CSR, 126.40046SL, 126.40046SR, 127.40046CL, 127.40046CR, 127.40046L, 127.40046R, 128.40046CL, 128.40046CR, 128.40046L, 128.40046R, 227.40046L, 227.40046R, 228.40046DL, 228.40046DR, 320.40046, 321.40046 |
| DURA CORP | BR31275, BR3127502 |
| DuraGo | BR31275, BR3127502, BR31354, BR31275-02 |
| Dynamic Friction Company | 604-59043 |
| EUROROTOR | HO575 |
| GREN | 46402 |
| GUARDIAN | 52-125674 |
| HONDA | 45251S0X000, 45251SEAJ01, 45251SOX000, 45251SEPA11, 45251TA6A00 |
| MIGHTY DISTRIBUTING SYSTEM | 31275 |
| MONROE BRAKES | BD125674 |
| NAPA BRAKES | TSR9510 |
| NEWTEK AUTOMOTIVE | 31275 |
| Newtek Automotive USA | 31275 |
| Omnicraft | QBRR173 |
| PEP BOYS | 31275G |
| PROMAX | 14-31275, 20-31275 |
| Parts Master | 125674 |
| QUALIS | 31275 |
| QUALITEE INTERNATIONAL | 64-72-450 |
| QUALITY BRAND | 31275, Q062 |
| Qualis | 31354 |
| STANDARD ROTORS AND DRUMS | 31275, GP31275 |
| THE UNIVERSAL GROUP | 108218 |
| TRUSTAR | 472450, R72450 |
| TRW | DF7382S |
| TopNotch | TN96795GEO |
| UAP | 2031275, 31275 |
| Ultra Brake | HO-575 |
| Universal | 108218 |
| VIPAR - VEHICLE INDUSRTY PARTS & MANUFACTURING | X51325 |
| WABCO | PS125674 |
| WABCO - Archived | PS125674 |
| WAGNER BRAKE | BD125674, BD125674E |
| WINHERE | 662669, YH2669 |
| WORLDPAC | 1407-78906, 1427-731754 |
RAYBESTOS 96795FZN Fits Vehicles
- Acura TSX (2004-2014)
- Honda Pilot (2003-2008)
- Honda Odyssey (1999-2004)
- Honda Accord (2003-2012)
- Acura TL (1999-2008)
- Acura MDX (2001-2006)
- Acura CL (2001-2003)
