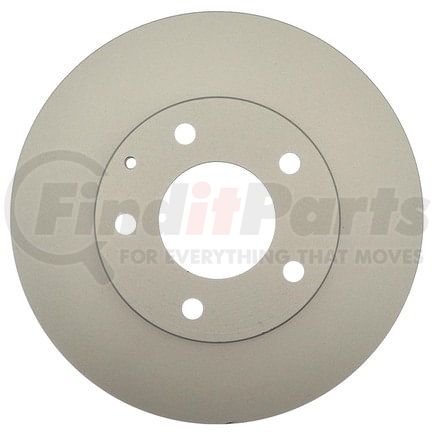

(888) 312-8812 Login SignupRAYBESTOS 96477FZN Raybestos Element3 Coated Brake Rotor
$79.65
MSRP Pricing shown.
Out of Stock
We cannot fulfill orders for this part at this time. Please check back later or request a stock notification to receive an email.
We may have similar parts for sale. Search Alternatives >
RAYBESTOS 96477FZN Part Description
Manufacturer
Product Description
Raybestos Element3 Coated Brake Rotor
Application Summary
2006-2000 Mazda MPV Front, 2000-1995 Mazda Millenia Front
Features & Benefits
- Grey Fusion 4.0® Coating
- Grey Fusion 4.0(R) Coating
- Grey Fusion 4.0® coating provides optimal corrosion resistance and faster brake jobs.
- Grey Fusion 4.0(R) coating provides optimal corrosion resistance and faster brake jobs.
- RPT® Rust Prevention Technology
- RPT(R) Rust Prevention Technology
- RPT® Rust Prevention Technology for long lasting rust prevention.
- RPT(R) Rust Prevention Technology for long lasting rust prevention.
- Cooling Vanes
- Cooling vanes are coated to ensure vanes remain clear of rust and corrosion for optimal airflow and cooling.
- OE Matched
- OE Matched precision and performance.
- Non-Directional Finish
- A non-directional ground finish provides a product that is ready to install right out of the box.
RAYBESTOS 96477FZN Specifications
Product Attributes
| ABS Tone Ring Included | No |
| Center Hole Diameter | 2.84 IN |
| Center Hole Diameter | 72.15 MM |
| Conventional Or Drum-In-Hat Type Rotor | Conventional |
| Directional or Non-Directional Brake Surface | Non-Directional |
| Discard Thickness | 1.024 IN |
| Discard Thickness | 26 MM |
| Harmonize Code | 8708.30.5030 |
| Material | Cast Iron |
| Mounting Bolt Hole Circle Diameter | 4.5 IN |
| Mounting Bolt Hole Circle Diameter | 114.3 MM |
| Mounting Bolt Hole Diameter | 0.51 IN |
| Mounting Bolt Hole Diameter | 12.95 MM |
| Mounting Bolt Hole Quantity | 5 |
| Nominal Thickness | 1.105 IN |
| Nominal Thickness | 28.05 MM |
| Outside Diameter | 10.78 IN |
| Outside Diameter | 273.8 MM |
| Overall Height | 2.01 IN |
| Overall Height | 51.05 MM |
| Salability Restrictions | No |
| Solid Or Vented Type Rotor | Vented |
| Stud/Lug Hole Quantity | 5 |
| UNSPSC Code | 25171715 |
Additional Information
| Country of Origin (Primary) | CN |
| Canadian Harmonizing Tariff Code | 8708309990 |
| Harmonized Tariff Code (HTS) | 8708305030 |
| UPC | 00887213091854 |
RAYBESTOS 96477FZN Cross References
| Brand | Part Number |
|---|---|
| ADVANCE AUTO PARTS | 145010, YH145010, YH145010C |
| AMERICAN REMANUFACTURED | 789-14054, 89-14054, 89-14066 |
| AUTOPART INTERNATIONAL | 78645 |
| AUTOSPECIALTY | JBR762, JBR762E |
| AUTOXTRA | 125430, 8096477, AX31151 |
| AUTOZONE | 31151, 31151DG |
| BECK/ARNLEY | 083-2671 |
| BENDIX | 145010 |
| BOSCH | 34010872 |
| BRAKE HEADQUARTERS | BR08319 |
| BRAKEBEST | 34010872, 81-125430, 96477, 96477FZN, 96477R, 96477RGS, BD125430 |
| BREMBO | 09.6863.10, 09.6863.11, 25454 |
| CALIFORNIA DRUM & ROTOR | 125430 |
| CENTRIC | 120.45053, 121.45053, 126.45053SL, 126.45053SR, 127.45053L, 127.45053R, 320.45053, 320.45053F |
| CONTINENTAL-CONTITECH | CW28712 |
| Casting Numbers | 211044-C, 311511, 325418 |
| Centric Parts | 120.45053, 121.45053, 126.45053SL, 126.45053SR, 127.45053L, 127.45053R, 320.45053, 320.45053F |
| DELPHI | RB391 |
| DURA CORP | BR31151 |
| DuraGo | BR31151 |
| EIS BRAKES | D17752 |
| EUROROTOR | MA863 |
| GREN | 54302 |
| GUARDIAN | 52-125430 |
| MAZDA | TY013325X, TY013325XA, T0023325XA |
| MIDAS | BR1939 |
| MIGHTY DISTRIBUTING SYSTEM | 31151 |
| MONROE BRAKES | BD125430 |
| N/A | 120.45060, 121.45060, 126.45060SL, 126.45060SR, 127.45060L, 127.45060R |
| NAPA BRAKES | TSR7895 |
| NEWTEK AUTOMOTIVE | 31151 |
| Newtek Automotive USA | 31151 |
| PEP BOYS | 31151G |
| PROMAX | 14-31151 |
| QUALIS | 31151 |
| QUALITEE INTERNATIONAL | 64-74-550 |
| QUALITY BRAND | 31151, Q072 |
| STANDARD ROTORS AND DRUMS | 31151 |
| THE UNIVERSAL GROUP | 112401 |
| TRUSTAR | 474550, R74550 |
| TRW | DF7170S |
| UAP | 31151 |
| Universal | 112401 |
| VIPAR - VEHICLE INDUSRTY PARTS & MANUFACTURING | X50947 |
| WABCO | PS125430 |
| WABCO - Archived | PS125430 |
| WAGNER BRAKE | BD125430 |
| WINHERE | 662238, YH2238 |
| WORLDPAC | 1407-78645 |
| Wagner Brake | BD125430E |
RAYBESTOS 96477FZN Fits Vehicles
- Mazda MPV (2000-2006)
- Mazda Millenia (1995-2000)
