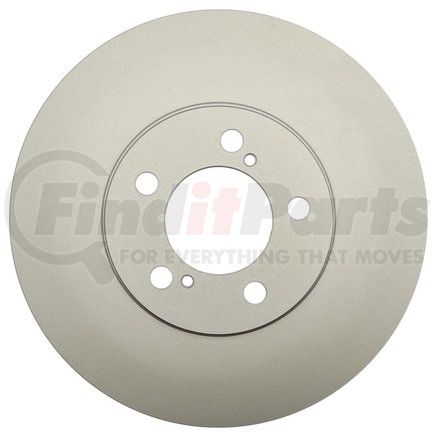

RAYBESTOS 66749FZN Part Description
Manufacturer
Product Description
Raybestos Element3 Coated Brake Rotor
Application Summary
2007-2001,1999-1996 Ford Taurus Front, 2005-2001 Mercury Sable Front, 2002-1995 Lincoln Continental Front, 1997-1996 Ford Thunderbird Front, 1998-1996 Lincoln Mark VIII Front, 1997-1996 Mercury Cougar Front
Features & Benefits
- Grey Fusion 4.0® Coating
- Grey Fusion 4.0(R) Coating
- Grey Fusion 4.0® coating provides optimal corrosion resistance and faster brake jobs.
- Grey Fusion 4.0(R) coating provides optimal corrosion resistance and faster brake jobs.
- RPT® Rust Prevention Technology
- RPT(R) Rust Prevention Technology
- RPT® Rust Prevention Technology for long lasting rust prevention.
- RPT(R) Rust Prevention Technology for long lasting rust prevention.
- Cooling Vanes
- Cooling vanes are coated to ensure vanes remain clear of rust and corrosion for optimal airflow and cooling.
- OE Matched
- OE Matched precision and performance.
- Non-Directional Finish
- A non-directional ground finish provides a product that is ready to install right out of the box.
RAYBESTOS 66749FZN Specifications
Product Attributes
| ABS Tone Ring Included | No |
| Center Hole Diameter | 2.8 IN |
| Center Hole Diameter | 71.1 MM |
| Conventional Or Drum-In-Hat Type Rotor | Conventional |
| Directional or Non-Directional Brake Surface | Non-Directional |
| Discard Thickness | 0.974 IN |
| Discard Thickness | 24.75 MM |
| Harmonize Code | 8708.30.5030 |
| Material | Cast Iron |
| Mounting Bolt Hole Circle Diameter | 4.25 IN |
| Mounting Bolt Hole Circle Diameter | 107.95 MM |
| Mounting Bolt Hole Diameter | 0.546 IN |
| Mounting Bolt Hole Diameter | 13.85 MM |
| Mounting Bolt Hole Quantity | 5 |
| Nominal Thickness | 1.025 IN |
| Nominal Thickness | 26.05 MM |
| Outside Diameter | 11.58 IN |
| Outside Diameter | 294.15 MM |
| Overall Height | 1.83 IN |
| Overall Height | 46.5 MM |
| Salability Restrictions | No |
| Solid Or Vented Type Rotor | Vented |
| Stud/Lug Hole Quantity | 5 |
| UNSPSC Code | 25171715 |
Additional Information
| Country of Origin (Primary) | CN |
| Canadian Harmonizing Tariff Code | 8708309990 |
| Harmonized Tariff Code (HTS) | 8708305030 |
| UPC | 00887213144833 |
RAYBESTOS 66749FZN Cross References
| Brand | Part Number |
|---|---|
| ADVANCE AUTO PARTS | 145050, YH145050, YH145050P |
| AMERICAN REMANUFACTURED | 789-34049, 89-34049 |
| API | 1407-25560 |
| AUTOPART INTERNATIONAL | 25560 |
| AUTOPARTSOURCE | 592470 |
| AUTOSPECIALTY | AR8149, AR8149E |
| AUTOXTRA | 125532, 8066749, AX54030 |
| AUTOZONE | 54030, 54030B, 54030DG, DL54030 |
| BENDIX | 145050 |
| BOSCH | RBR54030 |
| BRAKEBEST | 20010307, 66749, 66749FZN, 66749R, 66749RGS, 81-125532, BD125532 |
| BREMBO | 09.8441.10, 09.8441.85, 27067, 27250 |
| BrakeBest | 56750RGS |
| Brembo | 09.8441.11 |
| CALIFORNIA DRUM & ROTOR | 125337, 125532 |
| CENTRIC | 120.61049, 120.61049CRY, 121.61049, 125.61049, 125.61049CRY, 126.61049CSL, 126.61049CSR, 126.61049SL, 126.61049SR, 127.61049CL, 127.61049CR, 127.61049L, 127.61049R, 128.61049CL, 128.61049CR, 128.61049L, 128.61049R, 227.61049L, 227.61049R, 320.61049 |
| CONTINENTAL-CONTITECH | CW26714 |
| Casting Numbers | 211190-C, 325208, 5183, 540301, F50C1125 |
| Centric Parts | 120.61049, 120.61049CRY, 121.61049, 125.61049, 125.61049CRY, 126.61049CSL, 126.61049CSR, 126.61049SL, 126.61049SR, 127.61049CL, 127.61049CR, 127.61049L, 127.61049R, 128.61049CL, 128.61049CR, 128.61049L, 128.61049R, 227.61049L, 227.61049R, 320.61049 |
| DELPHI | RB276 |
| DURA CORP | BR54030, BR5403002 |
| DuraGo | BR54009, BR54030, BR5403002 |
| EUROROTOR | 54334 |
| FORD | 1F1Z1125AA, 4F1Z1125AA, 2F1Z1125AA, F50Y1125A, F7LZ1125AA, F5OY1125A, F80Z1125AA, F8LZ1125AA, F8OZ1125AA |
| FORMULA BLUE HYDRAULIC BRAKE PARTS | E12566054 |
| GREN | 647802 |
| GUARDIAN | 52-125532 |
| MERITOR | R44145050 |
| MIGHTY DISTRIBUTING SYSTEM | 54030 |
| MONROE BRAKES | BD125532 |
| MOTORCRAFT | BRR68 |
| Motorcraft | NBRR18 |
| NEWTEK AUTOMOTIVE | 54030 |
| Newtek Automotive USA | 54030 |
| PARTS MASTER | P125532 |
| POWERSTOP | AR8149EVC |
| PROMAX | 14-54030 |
| QUALIS | 54030 |
| QUALITY BRAND | 54030, Q4046 |
| Qualis | 54009 |
| STANDARD ROTORS AND DRUMS | 54030 |
| THE UNIVERSAL GROUP | 102574 |
| TopNotch | TN66749GEO |
| UAP | 2054030, 54030 |
| Ultra Brake | 54334 |
| Universal | 102574 |
| VIPAR - VEHICLE INDUSRTY PARTS & MANUFACTURING | X51008 |
| WABCO | PS125532 |
| WABCO - Archived | PS125532 |
| WAGNER BRAKE | BD125532, BD125532E |
| WINHERE | 662327, YH2327 |
| WORLDPAC | 1407-25560 |
RAYBESTOS 66749FZN Fits Vehicles
- Chrysler Cirrus (2001-2004, 2006-2010)
- Mercury Sable (2001-2005)
- Mercury Cougar (1996-1997)
- Lincoln Mark VIII (1993-1998)
- Lincoln Continental (1995-2002)
- Ford Thunderbird (1996-1997)
- Ford Taurus (1996-1999, 2001-2007)
