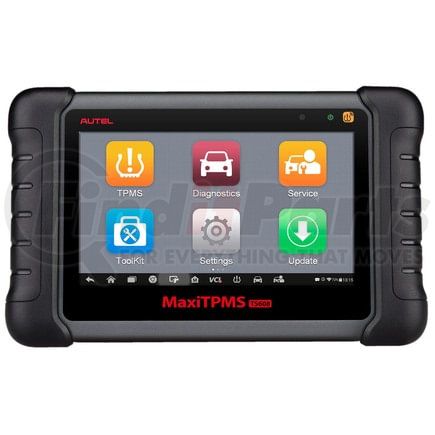

AUTEL TS608 MaxiTPMS – Complete TPMS, Service & All Systems Diagnostics Tablet with Bluetooth OBDII VCI

Manufacturer

AUTEL

Product Description

MaxiTPMS TS608 Service and TPMS Tablet Tool

Features & Benefits

• MaxiTPMS TS608 Advanced Service + All Systems Diagnostics + Complete TPMS
• Display Manufacturer-Specific Relearn Procedures; Perform OBDII Relearns
• Placard Value Reset on Supported Vehicles
• I/M Readiness / Emissions Testing
• Reset Diesel Emissions on Select Light/Med. Duty Vehicles / DPF Regeneration
• Coding & Adaptations
• Read/Activate/Relearn All Known Sensors
• Covers Domestic, Asian and European Vehicle Manufacturers (1996+)
• View Live & Freeze Frame Data
• Enhanced Mode 6 Diagnostics / All 10 Test Modes
• Key Fob Signal Test
• AutoVIN 2006+ / AutoSCAN: All Modules in All Systems
• Oil & Service Resets/ Battery Registration
• Set Inspection 1&2 Service Intervals
• Tests: O2 Monitor, On-Board Monitor, and O2 Sensor
• Open & Close EPB
• Diagnose EPB/SBC Caliper Functionality
• Reset Steering Angle Sensors (SAS)
• Display Sensor ID, Battery Life (supported sensors) and Psi
• MaxiSYS System Suite Applications - Shop Manager
• Save Files with Micro SD Card (32G max. not included)
• 5,000mAh Lithium-polymer Battery
• 20 Service Functions /Generates Printable Diagnostic Reports
• 4 Programming Options: MX-Sensors Only

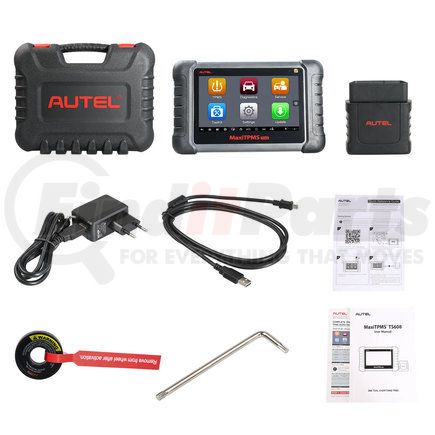

• Includes Bluetooth OBDII MaxiSYS-VCIMini
• Read & Erase Trouble Codes/ Test ABS, SRS, EPB
• 1Yr FREE Software & 1Yr Warranty/ Eligible for Extended TCP Coverage
• 7 in. Touchscreen /1.6GHz Quad-Core Processor/ 32GB Memory /2GB RAM
• Android 4.4.2 /Wi-Fi Software Updates

Features and Benefits

• Complete full service projects faster with TPMS and all systems diagnostics in one mobile tool.
• OBDII connection to read & clear codes
• Detect & display TPMS system faults
• Activate & relearn all known sensors
• Read sensor ID info & battery power level
• Sensor position relearn assist procedure
• Status screen
• Single screen to easily view feedback of all sensors and pinpoint TPMS system faults
• Toolkit Features
• Check MX sensor ID
• Unlock REDI 7002A
• Check FOB signal
• Wake-up sensor
• Three tools in one tablet: Complete TPMS diagnostics, advanced service features and all systems diagnostics
• SENSOR PROGRAM OPTIONS:
• Copy by activation
• Copy by manual Input
• Auto create 1-16 Sensors
• Copy by OBD
• Read & clear codes (Generic&Manufacturer, Pending and Stored)
• Control & test ABS; SRS; EPB; DPF Groups
• Diesel particulate Filter Service
• Set Inspection 1 & 2 Service Intervals
• View and Graph Live Freeze Frame Data
• Perform 02 Monitor, On-Board Monitor,
• 1/M Readiness and Component Testing
• Reset Steering Angle Sensors (SAS)
• Read & Clear Codes For All Module Systems Powertrain, Body, Chassis, Communication
• Supports All 10 OBDII Test Modes - Freeze Frame, Enhanced Mode 6, ltM Readiness, Vehicle Information & Component Tests
• Open & Close EPB Pads For Service
• Diagnose EPB/SBC Caliper Functionality
• Oil & Service Resets; Battery Registration
• Hardware Specifications:
• OPERATING SYSTEM: Android™ 4.4.2 KitKat OS
• PROCESSOR: 1.5GHz Cortex-A9 Processor
• MEMORY: 1GB RAM DDR3 / 32GB On-board ROM Memory
• DISPLAY: 7-inch LED capacitive touch screen with 1024 x 600 resolution
• CONNECTIVITY:
• Wifi (802.11 a/b/g/n)
• BT V.2.1 + EDR
• SD Card (Support up to 32GB)
• USB: 2.0
• HDMI
• BATTERY: 5000 mAh 3. 7 V lithium-polymer battery/ 7 hour continuous battery life
• POWER: Charging via 5 VDC power supply
• AUDIO INPUT/OUTPUT:
• Microphone
• 4-Band 3.5 mm stereo/standard headset jack
• Dual Speakers
• SENSORS Gravity Accelerometer, Ambient Light Sensor (ALS)
• INPUT VOLTAGE: 5 V (I.SA)
• POWER CONSUMPTION: 600 mA (LCD on with default brightness, Wi-Fi on) @3. 7 V
• OPERATING TEMP: -10 to 60°C (14 to l40°F)
• STORAGE TEMP: -20 to 70°C (-4 to 158°F)
• HOUSING: Strong plastic housing with protective rubber boot
• DIMENSIONS: 270.8 mm (10") x 176 mm (6.9") x 36 mm (1.4")
• NET WEIGHT: 885 g (2.31 lb)
• IS09141-2, IS014230-2, IS015765, KIL-Line, Flashing Code, SAE-J1850 VPW, SAE-J1850PWM,
• PROTOCOLS: ISOl 1898 (High-speed, Middle speed, Low speed and Singlewire CAN, fault-tolerant CAN),
• SAE-J2610, GM UART, UART Echo Byte Protocol, Honda Diag-H Protocol, TP2.0, TPl.6
