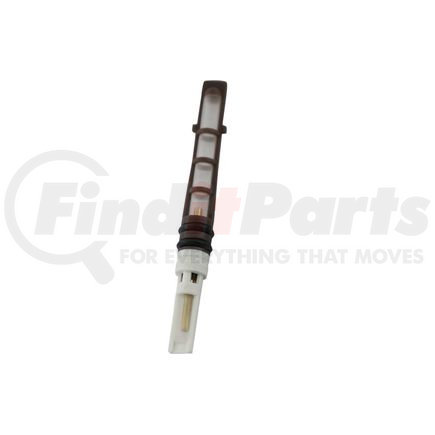

CATERPILLAR 2321384 TUBE-ORIFICE

Manufacturer

CATERPILLAR

Features & Benefits

• Orifice tube meters refrigerant before it enters the A/C evaporator
• Creates the pressure drop needed across the refrigerant metering restriction
• Directional tube design keeps refrigerant moving through the restriction correctly
• Fits within the refrigerant line as a replaceable metering component

Caterpillar A/C Orifice Tube

The Caterpillar A/C Orifice Tube meters refrigerant entering the evaporator through a calibrated 1.194 mm opening. Its brown directional tube measures about 3.5 inches overall with a 10.9 mm outside diameter, so physical size and flow orientation can be checked together during A/C service. Because flow direction matters on this restriction, the Caterpillar 2321384 uses the brown tube as another quick identification cue during service. Matching the brown tube and flow direction matters as much as the size because the restriction has to face the same way as the original part.

Cat® Orifice Tube (Brown)

• US
• METRIC

Description:
Cat orifice tubes are designed to route liquids and gases through machine systems. These tube assemblies are fabricated from superior materials to withstand application specific pressures, vibration tolerances and flow requirements for Cat heavy-duty equipment.

Attributes:
• Orifice tube (Brown)
• Directional flow
• OD: 10.9 mm (0.429 in)
• Orifice: 1.194 mm (0.047 in)

Applications:
Cat orifice tubes control the flow of the refrigerant to the evaporator in the HVAC system of heavy-duty equipment. Consult your owner's manual or contact your local Cat dealer for more information.

• Overall Height (in): 0.5
• Overall Height (mm): 12.7
• Overall Length (in): 3.5
• Overall Length (mm): 88.9
• Overall Width (in): 0.5
• Overall Width (mm): 12.7
