REDNECK TRAILER part description

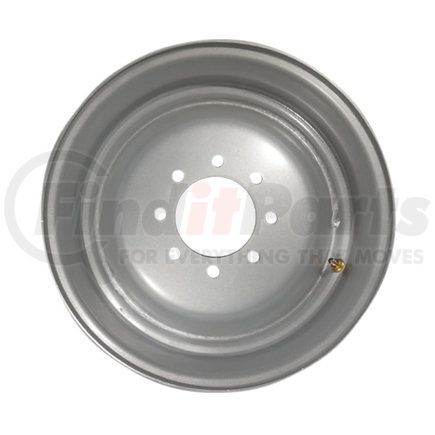

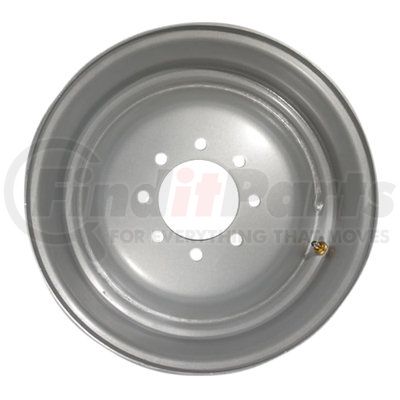

Replacement steel wheel.

  • 17.5" x 6.75"
  • Silver modular
  • E-coat primer with powder coat finish
  • 8 on 6.5" bolt pattern
  • 6,005lb weight capacity at 110psi
  • Center cap not included
  • Fits 5/8" studs
  • .19 In offset
  • Pilot diameter is 4.75"
  • Meets DOT specifications
  • USA Made
  • Not required to be balanced **When balancing the wheel must be mounted using the stud holes in the wheel not the pilot hole

Please refer to the diagram Image for these measurements


To determine the bolt circle on hubs or wheels with an even number of studs, measure center-to-center of studs directly across from each other on the diameter(bolt patterns are always measured in inches). Example: 8 on 6 1/2 would mean 8 studs with 6 1/2” center-to-center diameter.|

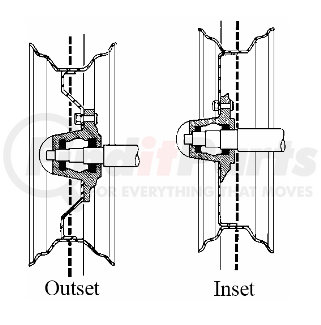

To Determine Wheel Offset: Offset is the distance between the mounting face of the hub and the centerline of the rim. Inset: Refers to the distance when the mounting face is outboard of the rim centerline. Outset: Refers to the distance when the mounting face is inboard of the rim centerline.


Redneck Trailer® has been setting the standard in trailer parts since 1979. During its first two years, it manufactured gooseneck trailers that were painted red, which is where its name was derived. It then shifted to distributing trailer parts instead of producing trailers in response to the customers' need for a reliable source of trailer parts in 1981. Since the initial opening of the Redneck Trailer Supplies warehouse in Springfield, MO, the company has grown to include 20 branch locations in the United States. It has cemented itself as a leading supplier of trailer parts and accessories across the US and beyond.
