(888) 312-8812 Login SignupWEBB 61514B Outboard Brake Drum with 15" Brake Surface, 8.78" Pilot Diameter, 10 Bolt Holes
Tap to view 1 more
$43449
Limited availability at this price!
In Stock
WEBB 61514B Part Description
Manufacturer
Product Description
Outboard Brake Drum with 15" Brake Surface, 8.78" Pilot Diameter, 10 Bolt Holes
Features & Benefits
- Heat-checked drums get a full, flat braking surface back
- Puts full shoe contact back after turning limits are reached
- Drum face carries ten mounting holes for the hub studs
- Lifts off the hub for brake service without bearing work

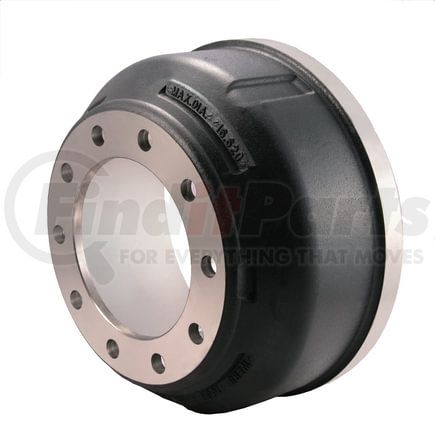

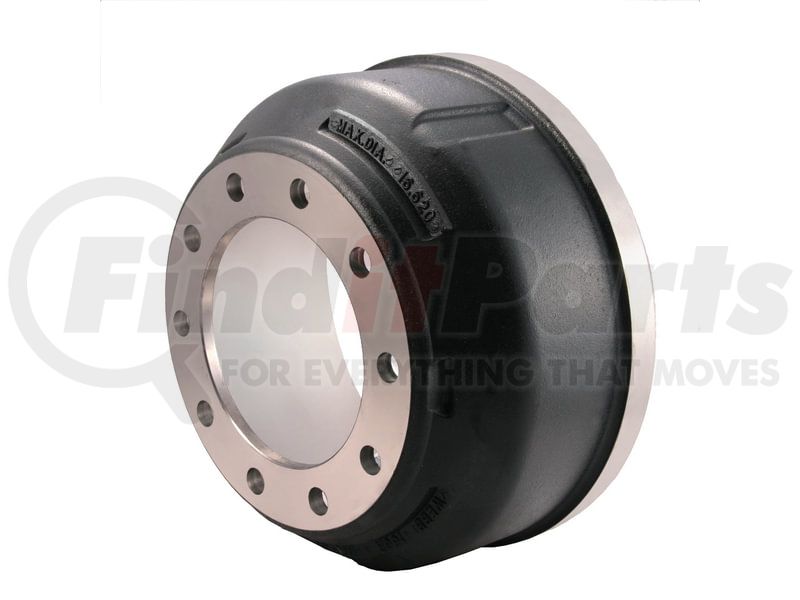

Webb Brake Drum
For a 15-inch drum brake with an outboard-mounted drum, the Webb Brake Drum gives your shoes a fresh braking surface. It centers on an 8.78-inch pilot and bolts up through 10 holes on the hub face. A drum that's heat-checked or turned past its limit loses braking surface, and the Webb 61514B puts that surface back. Outboard mounting means the drum comes off without pulling the hub, which speeds up brake jobs.

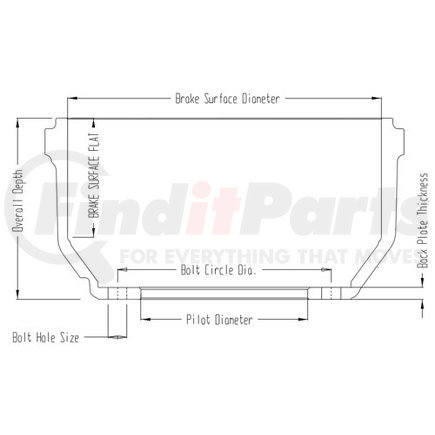

Specifications
| Mount Type | Outboard |
| Bolt Circle Diameter | 11.25 |
| Type | K |
| Back Plate Thickness | 0.5 |
| Brake Surface Diameter | 15 |
| Overall Depth | 9.35 |
| Brake Surface Flat | 6.26 |
| Pilot Diameter | 8.78 |
| Bolt Hole Number | 10 |
| Bolt Hole Size | 1.31 |
| Maximum Wear Diameter | 15.12 |
WEBB 61514B Specifications
Product Attributes
| Brake Backface Thickness (in) | 0.5 |
| Bolt Hole Size (in) | 1.31 |
| Bolt Circle Diameter (in) | 11.25 |
| Bolt Hole Quantity | 10 |
| Brake Size | 15 x 6 |
| Mount | Outboard |
| Brake Surface Flat (in) | 6.26 |
| Maximum Brake Diameter - Discard (in) | 15.12 |
| Pilot Diameter (in) | 8.78 |
| Overall Depth (in) | 9.35 |
| Brake Surface Diameter (in) | 15 |
| Type | K |
| Brake Shoe Width (in) | 6 |
WEBB 61514B Cross References
| Brand | Part Number |
|---|---|
| MERITOR | 85123681002 |
WEBB 61514B Customer Reviews
No reviews yet
Be the first to review this product!
WEBB 61514B Manufacturer Information
In business since 1946, Webb® has been a trusted brand for high-quality brake and wheel hub components in the heavy duty transportation industry. The company maintains an extensive catalog of OEM and aftermarket brake drums, brake rotors and calipers, and wheel hubs for Class 6, 7, and 8 trucks and heavy duty trailers. Each Webb product is made of premium materials and engineered for reduced weight without compromising structural strength or balance. All parts are also manufactured using the latest innovations, including advanced wear indicators and cool running vent technology to help minimize wear and make maintenance and repairs easier. Combined with a first-class customer service and after-sales support, customers can count on Webb products to keep their trucks running safely and smoothly for years to come.
