(888) 312-8812 Login SignupDANA 84677 DIFF RING & PINION; DANA 60; BUILDER AXLE COMPATIBLE; REVERSE SPIRAL; 5.38 RATIO
Tap to view 1 more
No Stock Available
We cannot fulfill orders for this part at this time. Please check back later or request a stock notification to receive an email.
We may have similar parts for sale. Search Alternatives >

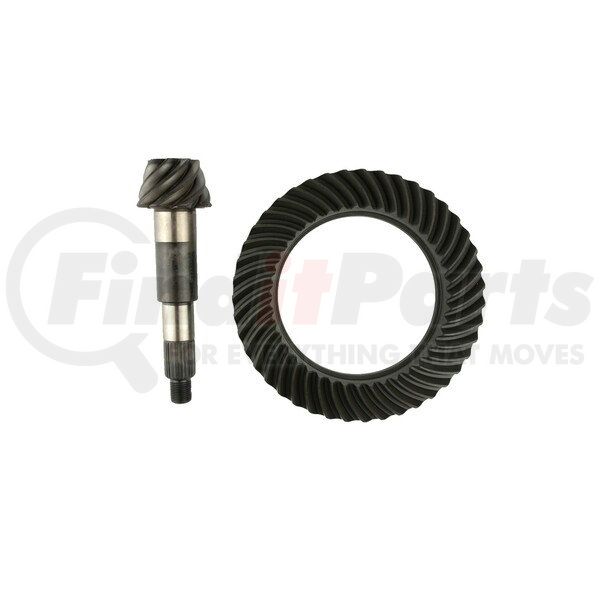

DANA 84677 Part Description
Manufacturer
Features & Benefits
- Superior metallurgy: Ensures more consistent, higher quality product.
- Hobbed and shaved gearing: Provides optimal mating to minimize stress and maximize life.
- Precision heat-treating and shot-peening delivers consistent quality, enhanced life by reducing residual stress doubling the fatigue life of the gear.
- High-grade steel for maximum durability.
| Axle Model: | DANA 60 |
| Gear Ratio: | 5.38 |
| Ring Teeth Count: | 43 |
| Ring Gear Diameter: | 10.000 in. |
| Ring Gear Bolt Qty: | 12 |
| Ring Gear Rotation: | Reverse |
| On Vehicle Location: | Front |
| Ring Gear Bolt Thread In.: | .500-20 |
| Cover Bolt Quantity: | 10 |
| Pinion Shaft Diameter: | 1.626 |
| Pinion Spline Count: | 29 |
| Include Installation Kit: | N |
| Pinion Gear Included: | Y |
| Ring Gear Included: | Y |
| New Or Remanufactured: | New |
DANA 84677 Specifications
Product Attributes
| Axle Model | DANA 60 |
| Gear Ratio | 5.38 |
| Ring Teeth Count | 43 |
| Carrier Breaks | 4.56 And Up |
| Cover Bolt Quantity | 10 |
| Include Installation Kit | N |
| On Vehicle Location | Front |
| Pinion Gear Tooth Quantity | 8 |
| Pinion Shaft Diameter | 1.626 IN |
| Pinion Spline Count | 29 |
| Ring Gear Bolt Qty | 12 |
| Ring Gear Bolt Thread In. | .500-20 IN |
| Ring Gear Diameter (In.) | 10.000 IN |
| Ring Gear Rotation | Reverse |
| New Or Remanufactured | New |
| Pinion Gear Included | Y |
| Ring Gear Included | Y |
Additional Information
| Country of Origin (Primary) | US |
| Harmonized Tariff Code (Schedule B) | 8708507200 |
| Harmonized Tariff Code (HTS) | 8708507200 |
| UPC | 00023913136239 |
DANA 84677 Part Interchanges
| Brand | Part Number |
|---|---|
| Yukon Gear | YG D60-538 |
| Navistar | DS84677 |
DANA 84677 Fits Vehicles
- Jeep Wrangler JK (2018)
- Jeep Wrangler (2007-2017)
- Ford F-550 Super Duty (2004-2015)
- Ford F-450 Super Duty (2004-2015)
- Ford F-350 Super Duty (2004-2015)
- Ford F-250 Super Duty (2004-2015)
DANA 84677 Customer Reviews
No reviews yet
Be the first to review this product!
DANA 84677 Manufacturer Information
Dana Holding Corporation® is an internationally known company specializing in drivetrain and e-Propulsion systems. It conceptualizes, manufactures, and supplies energy-management and power- and conveyance solutions for the present-day and future vehicles and trucks. With its over 115 years of industry experience and innovation, and despite several turbulences the automotive and trucking industry has been through, Dana has managed to take the lead in revolutionary technological inventions. Dana Holding Corporation comprises different world-renowned brands catering to various market segments. These include SPICER Drivetrain Systems, VICTOR REINZ Sealing Products, LONG Thermal Products, BREVINI Motion Systems, GRAZIANO High-Performance Transmissions, FAIRFIELD Custom Gears and Drives, and a lot more.
