WEATHERHEAD part description

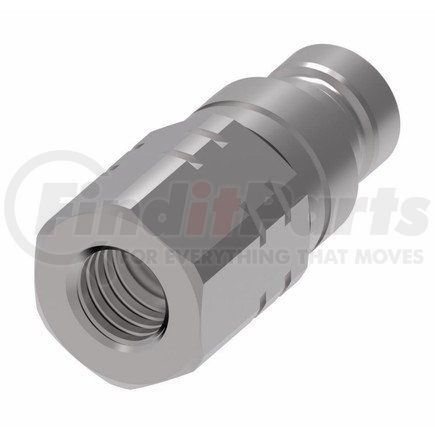

Product Name Eaton Hansen and Gromelle FF Series Quick Disconnect Couplings Plug
Compliances European Pressure Equipment Directive (PED) 97 /23 EC Article 3.3
REACH
RoHS Compliant
Certifications ISO 16028
Vacuum rating .013 iHg
Torque 43.8 lb/ft
Port size 3/4 IN
Working temperature - min -13 F
Working pressure 5800 Psi
Finish/plating Guardian Seal™
Hex Size 1 1.42 IN
Connection style Manual Connect
Burst pressure 20300 Psi
Internal connection type Flat Face
End type 2 UN
End type 1 UN
Working temperature - max 212 F
Dust cap part number if included PDC12FF
Item type Male Half
End Size 2 1 1/16 IN
Product material Carbon steel
Thread sealant No
Media Hydraulic
Flow rate 20.3 GQ
End Size 1 3/4 IN
Body size 1/2
Angle (shape) Straight
Seal material NBR+AU
End gender 2 Female
Fluid loss .012 CUC
Safety locking mechanism Sleeve lock
Thread Size 1 1 1/16-12
Thread Size 2 1 1/16 12f UN
Air inclusion - max .013 CUC
Application Hydraulic and Fluid Transfer, Construction equipment, Agricultural equipment, Utility vehicles, On-Highway vehicles, Stationary in-plant hydraulics and fluid transfer, Interchangeable with HTMA couplings in the 3/8” size
End gender 1 Male
Valve type 2 way

Officially acquired by Eaton in 2002, Weatherhead® is one of the industry’s biggest suppliers of hydraulic hose, hose ends, tube fittings, couplings, assembly equipment, and support accessories. Weatherhead crafts top-products that are widely used in mining, agriculture, construction, truck, and bus applications. Eaton delivers Weatherhead thermoplastic tubing in different sizes—from 1/8 to 1 inch—designed for use in air tools, robotics, beverage dispensing as well as air and water supply. Driven by the company’s goal to offer unique solutions to a wide range of markets that enable businesses to be at the forefront of change, Weatherhead remains the truck industry’s leading source of premium-quality hoses, fittings, and adapters for your fleet’s hose and fittings needs
