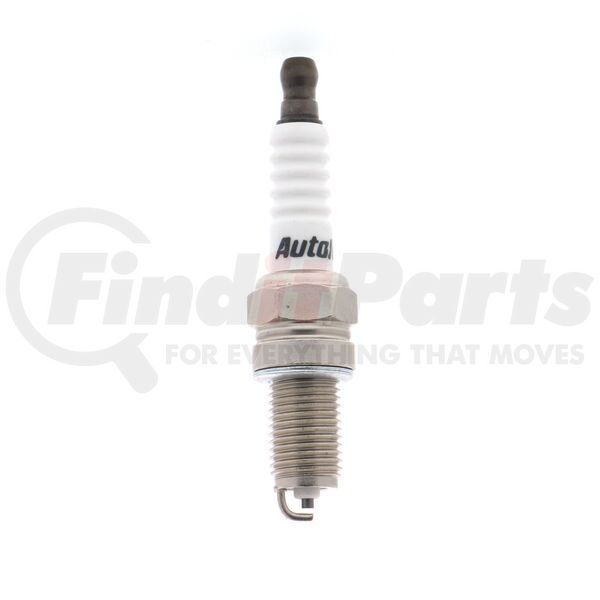

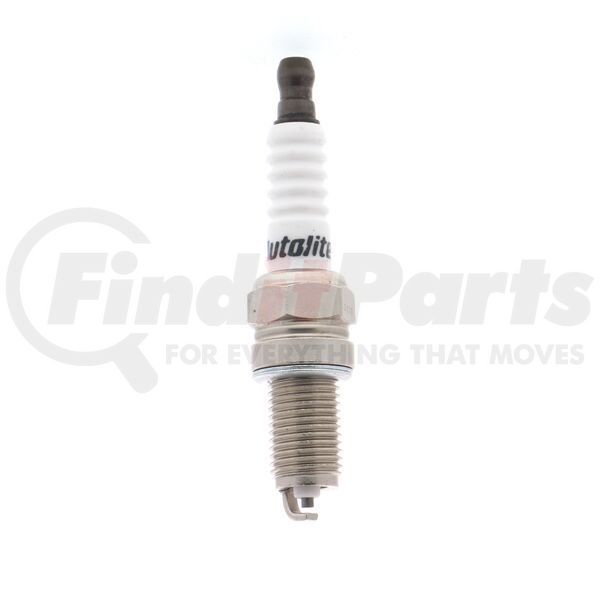

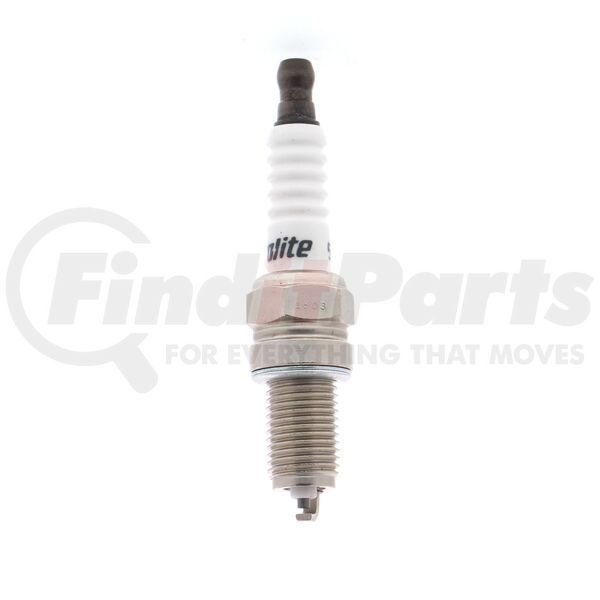

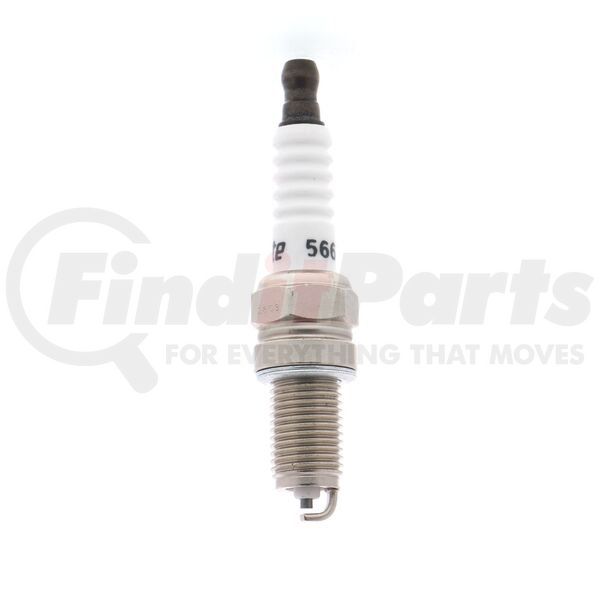

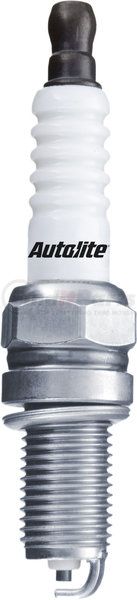

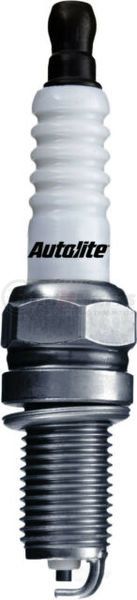

AUTOLITE 5663 Autolite 5663 Copper Resistor Spark Plug

Name: Autolite 5663 Autolite 5663 Copper Resistor Spark Plug
SKU: 5663
Availability: OutOfStock

Tap to view
4 more

Tap to view 8 more

Out of Stock

We cannot fulfill orders for this part at this time. Please check back later or request a stock notification to receive an email.

We may have similar parts for sale. Search Alternatives >

AUTOLITE 5663 Part Description

Autolite 5663 Copper Resistor Spark Plug

One-Piece terminal stud provides a reliable high voltage electrical connection
The copper core center electrode aids in thermal control and improves resistance to fouling.
High alumina multi-rib insulator helps prevent flash-over which can lead to misfires
Its specially engineered high nickel alloy center and ground electrode provides extended life.
Heat-fused glass composite resistor center seal provides high performance EMI noise suppression and a 100 percent leak-proof seal
The high alumina multi-rib ceramic insulator provides thermal conductivity and superior insulation for increased strength.
Solid copper core center electrode provides optimal thermal and electrical conductivity for better performance in all driving conditions
Designed with a nickel-plated shell that is corrosion resistant to provide increased durability for extended periods.

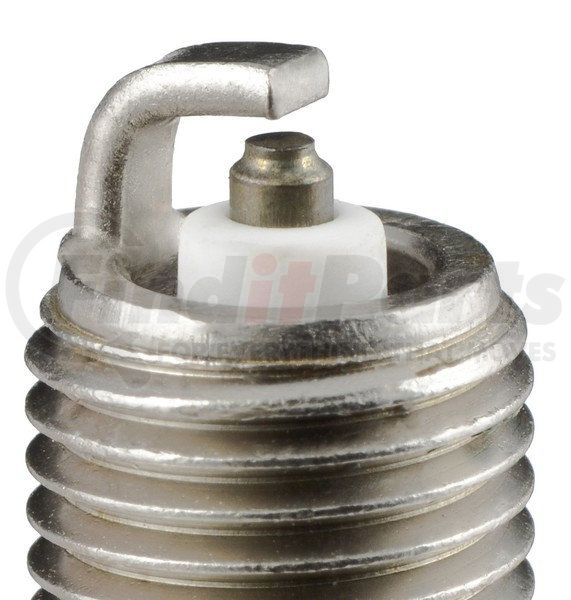

High nickel alloy side electrode resists electrical and chemical wear providing excellent durability
2 year limited warranty

Resistance	5000 82
Ground Electrode Tip Design	Standard
Ground Electrode Core Material	Nickel
Electrical Terminal Type	Non-Removable Nut
Center Electrode Core Material	Copper
Center Electrode Tip Material	Nickel
Pre-Gap Size	0.7 MM
Ground Electrode Quantity	1
Hex Size	17.5 MM
Seat Type	Flat
Reach	0.75 IN
Thread Diameter	12 MM
Insulator Material	Ceramic
Resistor Type	Yes
Ground Electrode Tip Material	Nickel
Center Electrode Design	Standard
Center Electrode Projection	Mid Projection
Washer(s) Included	Yes
Grade Type	Regular
Pre-Gap Size	0.027 IN
Hex Size	5/8 IN
Manufacturer Heat Range	13
Skirt	Yes
Hex Type	Hex
Indexed	No
Reach	19.049999999999997 MM
Thread Type Standard	Metric
Insulator Height	51.6 MM
Thread Size	M12 - 1.25
Center Electrode Insulator Tip Projection	0.118 MM
Washer Type	Crush
Thread Diameter	12 MM
Center Electrode Insulator Tip Projection	3.00 IN
Insulator Height	2.033 IN
Reach	19 MM

Country of Origin (Primary)	CN
Harmonized Tariff Code (Schedule B)	8511100000
Warranty Time	2
Warranty Time UOM	YR
Harmonized Tariff Code (HTS)	8511100000
UPC	00009100267931
UNSPSC	26101732
