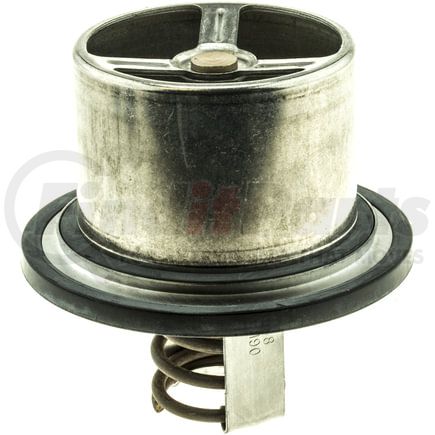

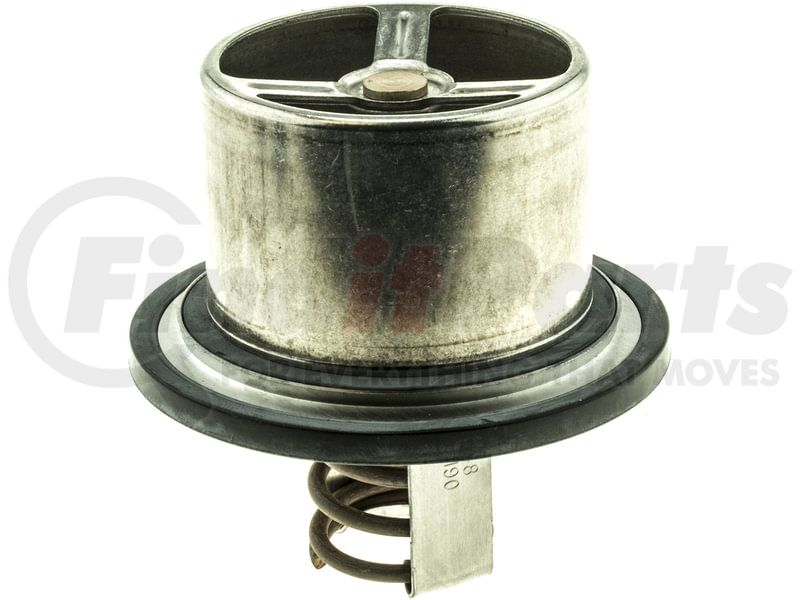

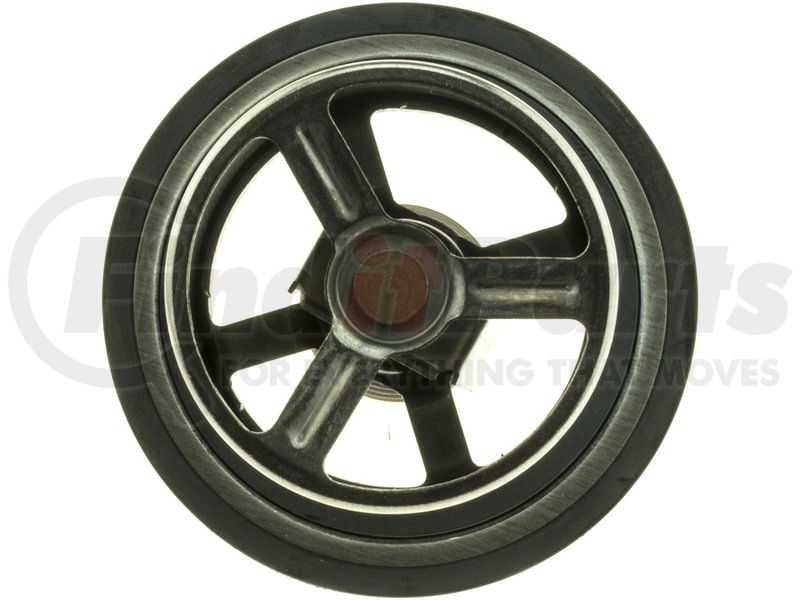

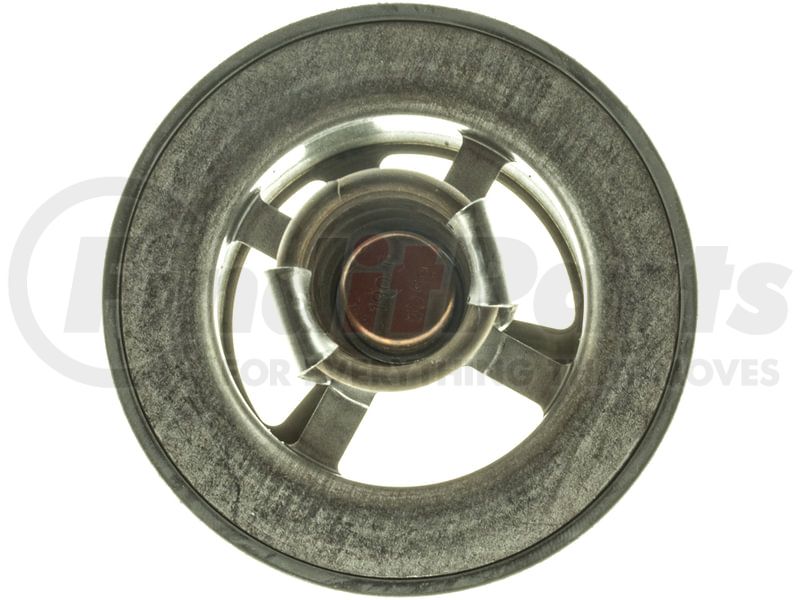

Gates 34289 - Green Stripe Heavy-Duty Engine Coolant Thermostat
We cannot fulfill orders for this part at this time. Please check back later or request a stock notification to receive an email.
Sometimes we may have similar parts for sale, click the button below to see if anything matches.
GATES part description
Product Description
Green Stripe Heavy-Duty Engine Coolant Thermostat
Application Summary
2002 Western Star, 4900FA, Caterpillar C12 Diesel, Thermostat
Features & Benefits
- Heavy-gauge brass and stainless steel construction for corrosion resistance
- Quality-controlled factory calibration assures accuracy of opening and closing, regardless of pressure changes
- Temperature sensitive heat motor provides consistent valve response for smooth performance and precise engine cooling
- Jiggle pins for air venting, seals and gaskets make these thermostats equivalent to the original equipment parts
Product Attributes
| Type | Heavy-Duty Thermostat |
| Start to Open Temperature | 192 FA |
| Design | Weir-Stat |
| Material | Stainless Steel, Copper |
| Height | 3 IN |
| Sealing Flange Outside Diameter | 3.13 IN |
| Flange Thickness | .06 in |
| 9811 | 2.27 IN |
| 9907 | 1.79 IN |
| Height Between Flanges | 1.467 IN |
| Jiggle Pin Weep Hole | No |
| 9852 | 0 |
| Gasket Quantity | 0 |
| 9841 | 1 |
| Seal Type | O-Ring |
| Installation Tool Included | No |
| Start to Open Temperature | 88 CE |
Additional Information
| Country of Origin (Primary) | CN |
| Harmonized Tariff Code (Schedule B) | 8481809015 |
| UPC | 00770075626947 |
| VMRS Code | 042006000 |
| UNSPSC | 41112209 |
Part Interchanges
Fits Vehicles
- Western Star 4900FA (2002)
- Freightliner Columbia (2010)
- Western Star 4900SA (2002-2004)
- Oshkosh Motor Truck Co. S (2007)
