GATES G25230-0806T Part Description
Manufacturer
Product Description

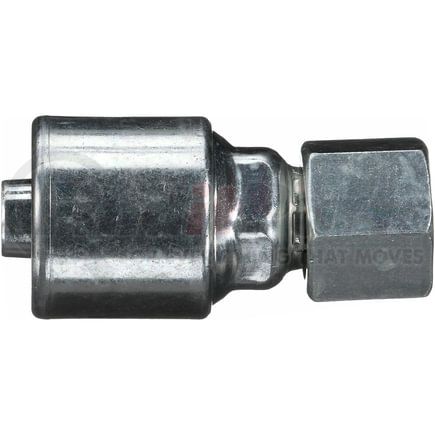

Female Flat-Face O-Ring Swivel - TuffCoat Xtreme Plating (MegaCrimp)
Features & Benefits
- Robust "bite-the-wire" crimp
- Robust “bite-the-wire” crimp
- Tested to an industry-leading 1,000,000 impulse cycles
- Simplifies inventory management
- Environmentally-friendly TuffCoat plating for 347 percent better corrosion resistance than the SAE Standard
- Popular thread styles also available with TuffCoat Xtreme plating for 583 percent better corrosion resistance than the SAE Standard
GATES G25230-0806T Specifications
Product Attributes
| Coupling Description | MegaCrimp Female Flat-Face O-Ring Swivel - TuffCoat Xtreme Plating |
| Industrial Description | 8G-6FFORX-TCX |
| Thread Size | 11/16-16 |
| Inside Diameter | .5 IN |
| Hydraulic Hose Recommendation | Can Accommodate Various Hose Outside Diameters on Both One-Wire & Two-Wire Braid Hydraulic Hose |
| Stem Hex Size | 22 MM |
| Nut Hex Size | 22 MM |
| Cut-Off Length | 2.3 IN |
| Length | 3.78 IN |
| Seal Type | O-Ring |
| O-Ring Location | Flat Face O-Ring |
| Gender | Female |
| Bent Tube Angle | Straight |
| Swivel | Yes |
| Bulkhead | No |
| Inside Diameter | 12.7 MM |
| Cut-Off Length | 58.4 MM |
| Length | 95.9 MM |
Additional Information
| Country of Origin (Primary) | US |
| Harmonized Tariff Code (Schedule B) | 7508905000 |
| UPC | 00770075639039 |
| VMRS Code | 059032012 |
| UNSPSC | 31163000 |
GATES G25230-0806T Part Interchanges
| Brand | Part Number |
|---|---|
| NAPA | G25230-0806T |
