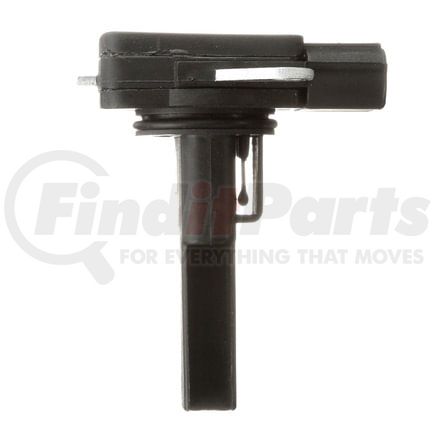

(888) 312-8812 Login SignupDELPHI AF10343 Mass Air Flow Sensor
MSRP: $91.22
$7149
Save $19.73
Limited availability at this price!
In Stock
Get it by Wednesday, Dec 17
DELPHI AF10343 Part Description
DELPHI AF10343 Specifications
Product Attributes
| Item Grade | Premium |
| Package Contents | Mass Air Flow Sensor - Probe Only |
| Color | Black and Silver |
| Housing Included | No |
| Terminal Type | Pin |
| Mounting Hardware Included | No |
| Universal Or Specific Fit | Specific |
| Grade Type | Regular |
| Connector Quantity | 1 |
| Connector Shape | Rectangle |
| Mounting Hole Quantity | 2 |
| Terminal Quantity | 5 |
| Connector Gender | Female |
| Terminal Gender | Male |
| Wiring Harness Included | No |
| Mounting Type | Bolt-On |
| Mounting Bracket Included | No |
| Sensor Casing Length | 60 MM |
| Sensor Casing Width | 44 MM |
| Voltage | 12.0 2H |
| Gasket Or Seal Included | Yes |
| Bolt Hole Center To Bolt Hole Center | 49.20 MM |
| Mounting Hole Diameter | 4.6 MM |
| Seal Outside Diameter | 28 mm |
| Seal Quantity | 1 |
| Sensor Casing Length | 2.3 IN |
| Sensor Casing Width | 1.7 IN |
| Bolt Hole Center To Bolt Hole Center | 1.90 IN |
| Mounting Hole Diameter | 0.1 IN |
| Seal Outside Diameter | 1.1 IN |
Additional Information
| Warranty Distance UOM | DH |
| Warranty Distance | 12000 |
| Harmonized Tariff Code (Schedule B) | 9026800000 |
| Harmonized Tariff Code (HTS) | 9026802000 |
| Warranty Time UOM | MO |
| Warranty Time | 12 |
| Country of Origin (Primary) | CN |
| UPC | 00689604241967 |
| VMRS Code | 045021019 |
| UNSPSC | 41111931 |
DELPHI AF10343 Part Interchanges
| Brand | Part Number |
|---|---|
| DENSO Auto Parts | 197-6150 |
| Echlin | XTP450058 |
| Spectra Premium | MA251 |
| ACDelco | 213-4565 |
| Carquest | MQ6305 |
| Richporter | MA251 |
| BWD | 221204, MA1133 |
| Honda | 37980-RTA-003 |
| CARDONE Reman | 74-50058 |
| Airtex | 5S9110 |
| Wells | SU10572 |
| Standard Motor Products | MAS0302, MF21204 |
| NAPA Reman Computers | XTP450058 |
| N/A | 214672, MA387, 245-1236, MF21204N |
DELPHI AF10343 Fits Vehicles
- Honda CR-V (2007-2009)
- Honda Element (2007-2011)
- Honda Civic (2006-2011)
