BILSTEIN part description

  • 5100 Series shock absorber
  • Collapsed length (in.): 14.88
  • Extended length (in.): 24.37
  • Travel length (in.): 9.49
  • Lower mount: Eye 14.1mm
  • Upper mount: Stem
  • Shaft diameter: 14mm
  • Reservoir: No
  • Finish: Zinc plated
  • Body design: 46mm ID smooth body (non-coilover)
  • Internal design: Monotube
  • Boot included: Yes
  • California Residents: WARNING

Product Description

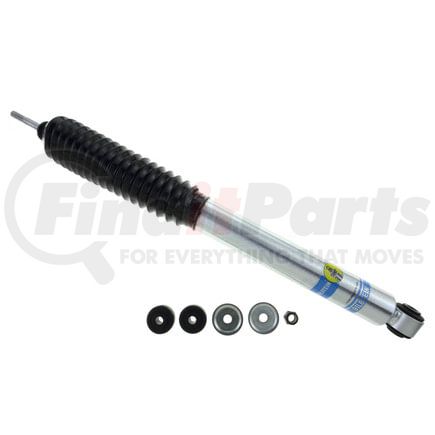

B8 5100 - Shock Absorber

Application Summary

Dodge Ram 1500 2001-1994, Ram 1500 2008-2006, Ram 2500 2010-1994, Ram 3500 2010-1994, Ford F-250 Super Duty 2016-2005, F-350 Super Duty 2016-2005, Ram 2500 2013-2011, 3500 2012-2011

Product Attributes

Adjustable Damping Non-Adjustable
Body Design Smooth Body (Non-Coilover)
Body Diameter (id) 46mm
Boot Included Black Bellows
Collapsed Length (in) 14.88
Collapsed Length (mm) 378.0
Extended Length (in) 24.37
Extended Length (mm) 619.0
Finish Zinc Plated
Internal Design Monotube
Lower Mount Type Eye 14.1mm
RESERVOIR No
Series B8 5100
Spring Seat Included No
Title Bilstein Shock Absorbers
Upper Mount Type Stem

Additional Information

Country of Origin (Primary) MX
Harmonized Tariff Code (Schedule B) 8708800050
Harmonized Tariff Code (HTS) 8708801600
MSDS Sheet Number USA SDS_Shock_Air Spring_V2_EN.pdf
Refurbished Part N
Remanufactured Part N
Warranty Special Lifetime
Warranty Special UOM LF
UPC 00651860638560

Part Interchanges

About BILSTEIN Of AmericaFounded in 1873, BILSTEIN is a world leading manufacturer of monotube gas pressure shock absorbers. With their main headquarters located in Germany, BILSTEIN is an original equipment supplier to BMW, Jaguar, Mercedes-Benz, Porsche, GM, Chrysler, Ford, Toyota and many others. Today, BILSTEIN Aftermarket and Motorsports has grown to nearly 630 employees located in three locations around the United States and distributes more than 3,500 part numbers into the U.S. aftermarket. BILSTEIN operates within ThyssenKrupp Component Technologies Group.

Fits Vehicles

  • Ram 2500 (2011-2013)
  • Ram 3500 (2011-2012)
  • Ford F-250 Super Duty (2005-2016)
  • Ford F-350 Super Duty (2005-2016)
  • Dodge Ram 3500 (1994-2010)
  • Dodge Ram 2500 (1994-2010)
  • Dodge Ram 1500 (1994-2001, 2006-2008)
