RAYBESTOS 981771 Part Description
Manufacturer
Product Description

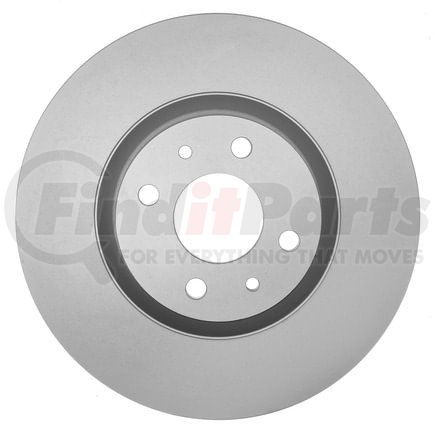

Raybestos Specialty - Street Performance Brake Rotor
Application Summary
2019-2012 Fiat 500 Front, 2019-2016 Fiat Palio Front, 2020-2015 Ram 700 Front
Features & Benefits
- Application Specific Enhanced Iron
- Raybestos® Performance Rotors are made with enhanced iron which suppresses noise and keeps brakes running cool, quiet and vibration free.
- Raybestos(R) Performance Rotors are made with enhanced iron which suppresses noise and keeps brakes running cool, quiet and vibration free.
- Cooling Vanes
- The cooling vanes match OE configurations and provide optimal cooling and reduced fade.
- Application Specific Coating
- Depending on the application, Performance Rotors will have one of the following finishes: Black fusion coating on the rotor hat Grey Fusion 4.0® coating on the entire rotor
- Depending on the application, Performance Rotors will have one of the following finishes: Black fusion coating on the rotor hat Grey Fusion 4.0(R) coating on the entire rotor
- Black fusion coating on the rotor hat and Grey Fusion 4.0® coating on the rotor inboard surface and cooling vanes
- Black fusion coating on the rotor hat and Grey Fusion 4.0(R) coating on the rotor inboard surface and cooling vanes
- Turned Finish
- Turned finish minimizes noise and improves responsiveness for smoother stops.
- S-Groove Slot
- Depending on the application, some Raybestos® Performance Rotors are designed with a patented S-Groove Slot.
- Depending on the application, some Raybestos(R) Performance Rotors are designed with a patented S-Groove Slot.
RAYBESTOS 981771 Specifications
Product Attributes
| ABS Tone Ring Included | No |
| Center Hole Diameter | 2.323 IN |
| Center Hole Diameter | 59 MM |
| Conventional Or Drum-In-Hat Type Rotor | Conventional |
| Discard Thickness | 0.795 IN |
| Discard Thickness | 20.2 MM |
| Harmonize Code | 8708.30.5030 |
| Inside Diameter | 6.76 IN |
| Inside Diameter | 171.7 MM |
| Mounting Bolt Hole Circle Diameter | 3.858 IN |
| Mounting Bolt Hole Circle Diameter | 98 MM |
| Mounting Bolt Hole Diameter | 0.52 IN |
| Mounting Bolt Hole Diameter | 13.2 MM |
| Mounting Bolt Hole Quantity | 4 |
| Nominal Thickness | 0.866 IN |
| Nominal Thickness | 22 MM |
| Outside Diameter | 11.141 IN |
| Outside Diameter | 283 MM |
| Overall Height | 1.718 IN |
| Overall Height | 43.65 MM |
| Salability Restrictions | No |
| Solid Or Vented Type Rotor | Vented |
| Stud/Lug Hole Quantity | 4 |
| Surface Type | Smooth |
| UNSPSC Code | 25171715 |
Additional Information
| Country of Origin (Primary) | CN |
| Canadian Harmonizing Tariff Code | 8708309990 |
| Harmonized Tariff Code (HTS) | 8708305030 |
| UPC | 00887213137194 |
RAYBESTOS 981771 Cross References
| Brand | Part Number |
|---|---|
| ADVANCE AUTO PARTS | YH425227, YH425227C, YH425227P |
| ATE BRAKE PRODUCTS | SP00076 |
| AUTOZONE | 72153, 72153DG, 72153DL |
| BOSCH | 19010306 |
| BRAKEBEST | 19010306, 92938RGS, 981771, 981771FZN, 981771R |
| CENTRIC | 120.04004, 120.04004CRY, 121.04004, 125.04004, 126.04004CSL, 126.04004CSR, 126.04004SL, 126.04004SR, 127.04004L, 127.04004R, 128.04004CL, 128.04004CR, 128.04004L, 128.04004R, 320.04004, 320.04004F |
| CHRYSLER | 68097225AA |
| Centric Parts | 120.04004, 120.04004CRY, 121.04004, 125.04004, 126.04004CSL, 126.04004CSR, 126.04004SL, 126.04004SR, 127.04004L, 127.04004R, 128.04004CL, 128.04004CR, 128.04004L, 128.04004R, 320.04004, 320.04004F |
| DURA CORP | BR901434 |
| DuraGo | BR901434 |
| FIAT | 04779953AB, 4779953AB, 4779953AA |
| MAGMA PRODUCTS | PSR143075 |
| NAPA BRAKES | SDK6195 |
| NEWTEK AUTOMOTIVE | R1434 |
| Newtek Automotive USA | R1434 |
| POWERSTOP | EBR1297EVC |
| Qualis | 45610 |
| UAP | R04004 |
| WORLDPAC | 1407-425227, 1427-719589 |
| Winhere | 662938 |
RAYBESTOS 981771 Fits Vehicles
- Ram 700 (2015-2020)
- Fiat Palio (2016-2019)
- Fiat 500 (2012-2019)
