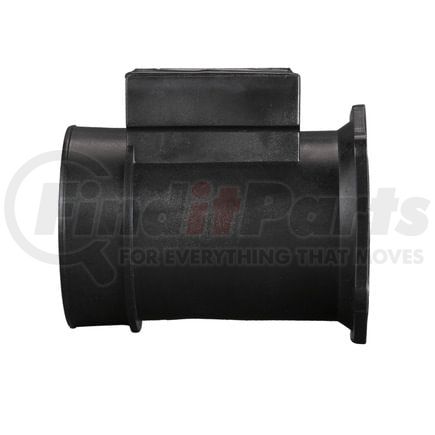

DELPHI AF10164 Mass Air Flow Sensor

★★★★★ (0)

MSRP: $218.75

$192.49

Save $26.26

Limited availability at this price!

In Stock

Get as soon as Monday, Nov 30
30-day Return Policy On eligible items Details
Free Ground shipping on orders over $499 details

DELPHI AF10164 Part Description

Manufacturer

DELPHI

Product Description

Mass Air Flow Sensor

Features & Benefits

  • Delphi mass air flow sensors are the global benchmark for accuracy and signal noise
  • Delphi mass air flow sensors feature high quality sensing elements for outstanding performance over a wide range of ambient temperatures
  • Delphi is a manufacturer of OE mass air flow sensors since their first use over 30 years ago
  • All parts are calibrated and tested to match the OE part
  • Probe solution offered wherever possible to reduce repair time by eliminating the need to replace the flow tube
  • Delphi OE technology validated to match the vehicle applications

DELPHI AF10164 Specifications

Product Attributes

Item GradePremium
Package ContentsMass Air Flow Sensor - Complete Assembly
ColorBlack
Housing IncludedYes
Inlet Connection Diameter72.1 MM
Outlet Connection Diameter3.2 IN
Outlet Connection Diameter81 MM
Terminal TypeBlade
Mounting Hardware IncludedNo
Universal Or Specific FitSpecific
Grade TypeStandard Replacement
Connector Quantity1
Connector ShapeRectangle
Mounting Hole Quantity4
Housing MaterialPlastic
Terminal Quantity3
Connector GenderFemale
Terminal GenderMale
Wiring Harness IncludedNo
Mounting TypeBolt-On
Mounting Bracket IncludedNo
Inlet Connection Diameter2.8 IN
Sensor Casing Length120 MM
Sensor Casing Width99 MM
Voltage12.0 2H
Gasket Or Seal IncludedNo
Bolt Hole Center To Bolt Hole Center51.00 MM
Mounting Hole Diameter6.6 MM
Seal Quantity0
Sensor Casing Length4.7 IN
Sensor Casing Width3.8 IN
Bolt Hole Center To Bolt Hole Center2.00 IN
Mounting Hole Diameter0.2 IN
Intake Air Temperature (IAT) IncludedNo

Additional Information

Harmonized Tariff Code (HTS)9026802000
Warranty Distance UOMDH
Warranty Distance12000
Harmonized Tariff Code (Schedule B)9026800000
Warranty Time UOMMO
Warranty Time12
Country of Origin (Primary)CN
UPC00689604231111
VMRS Code045021019
UNSPSC41111931

DELPHI AF10164 Cross References

BrandPart Number
ACDelco2133353
Airtex5S2713
BWD220098M
Beck/Arnley157-0352, 158-0824
Blue Streak Electronics NewMF20098N
BoschF00E170451, 0986JG0315
CARDONE Reman74-10035
Carquest64-1746, MQ7253
Datsun/Nissan22680-31U00, 22680-31U05, B2680-31U05
Dorman917-802
DuralastDL-6010
GLOBAL PARTS DISTRIBUTORS1813297
HELLA358166021
N/A2268031U00, 2268031U05, 213-3353, 245-1115
NAPA Reman ComputersXTP410035
NGK SPARK PLUGSMG0053
NTKMG0053
RichporterMA142
STANDARD IGNITIONMAS0145
Spectra PremiumMA142
Standard Motor ProductsMF20098, MAS0145, MF20098N
VEMOV38-72-0069
WAIMAF10164T
WALKER PRODUCTS245-1115
WellsSU5354

DELPHI AF10164 Fits Vehicles

  • INFINITI I30 (1996-1999)
  • INFINITI J30 (1996-1997)
  • INFINITI Q45 (1997-2001)
  • Nissan Maxima (1995-1999)
