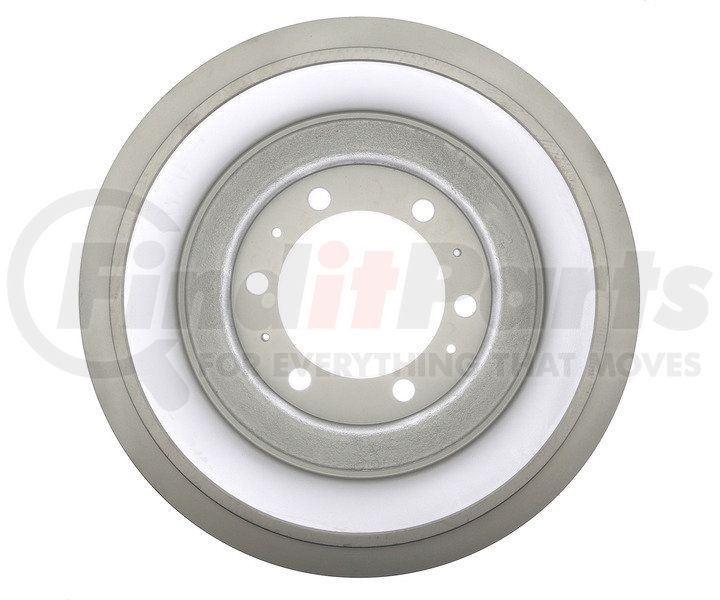

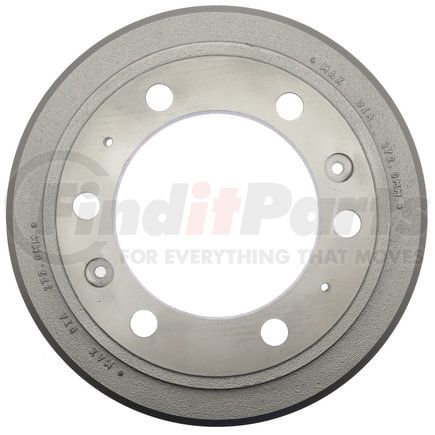

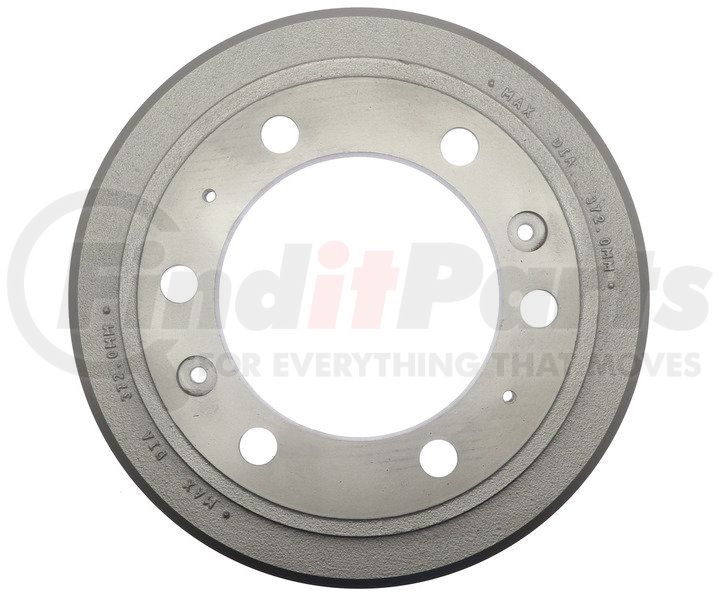

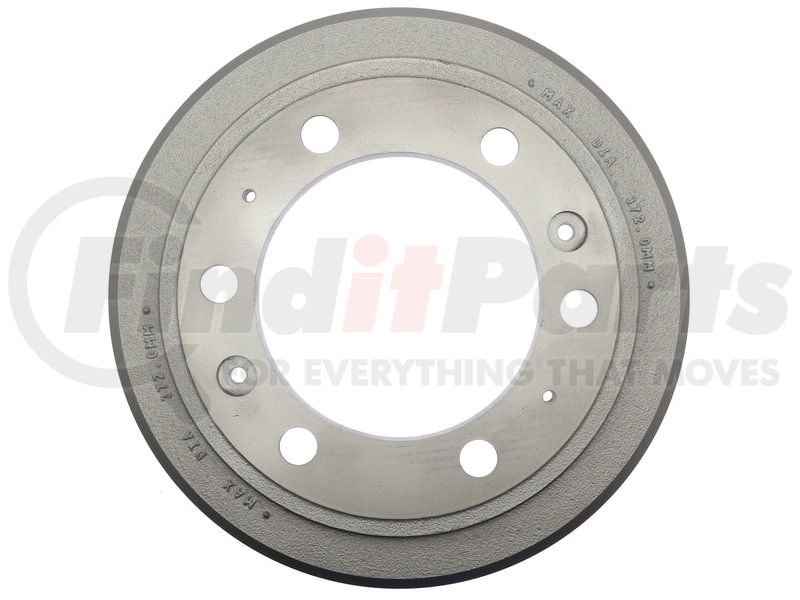

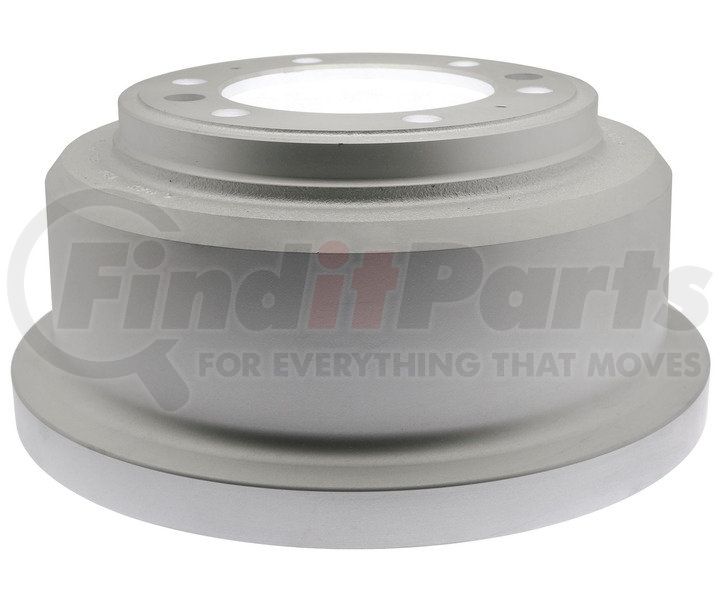

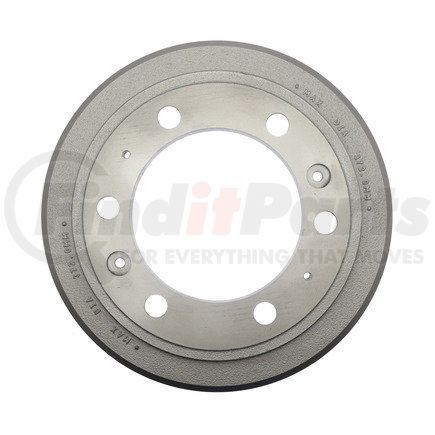

RAYBESTOS 97832R - Brake Parts Inc Raybestos R-Line Brake Drum
We cannot fulfill orders for this part at this time. Please check back later or request a stock notification to receive an email.
Sometimes we may have similar parts for sale, click the button below to see if anything matches.
RAYBESTOS part description
California Proposition 65 Warning
California Proposition 65 Warning
WARNING: This product can expose you to chemical which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.gov. (Read more)
Product Description
Raybestos R-Line Brake Drum
Application Summary
2017-2005 Isuzu NRR Rear, 2019-2018 Isuzu FTR Rear, 2021-2017 Chevrolet LCF 5500XD Rear, 2009-2004 GMC W5500HD Forward Rear, 2009-2004 Chevrolet W5500HD Tiltmaster Rear
Product Attributes
| Bolt Thread Pitch | 0.886 IN |
| Bolt Thread Pitch | 22.5 MM |
| Depth | 6.457 IN |
| Depth | 164 MM |
| Nominal Drum Diameter | 14.567 IN |
| Nominal Drum Diameter | 370 MM |
| Outside Diameter | 17.913 IN |
| Outside Diameter | 455 MM |
| Stud/Lug Hole Diameter | 0.886 IN |
| Stud/Lug Hole Diameter | 22.5 MM |
| Stud/Lug Hole Quantity | 6 |
Additional Information
| Country of Origin (Primary) | CN |
| UPC | 00887213096453 |
Part Interchanges
RAYBESTOS 97832R Cross Reference
We have 5 alternatives for the 97832R by RAYBESTOS:
Fits Vehicles
- Isuzu FTR (2018-2019)
- Chevrolet LCF 5500XD (2017-2021)
- Isuzu NRR (2005-2017)
- Chevrolet W5500HD Tiltmaster (2004-2009)
- GMC W5500HD Forward (2004-2009)
