RAYBESTOS 981023 Part Description
Manufacturer
Product Description

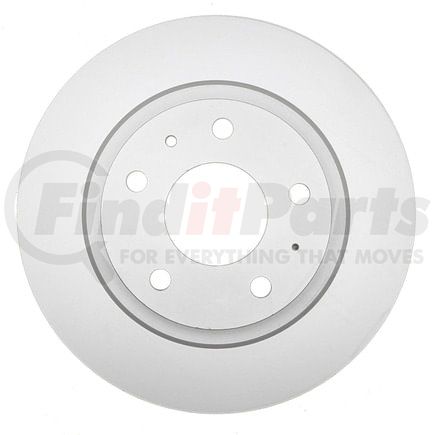

Raybestos Specialty - Street Performance Coated Brake Rotor
Application Summary
2021-2014 Mazda 6 Rear
Features & Benefits
- Application Specific Enhanced Iron
- Raybestos® Performance Rotors are made with enhanced iron which suppresses noise and keeps brakes running cool, quiet and vibration free.
- Raybestos(R) Performance Rotors are made with enhanced iron which suppresses noise and keeps brakes running cool, quiet and vibration free.
- Cooling Vanes
- The cooling vanes match OE configurations and provide optimal cooling and reduced fade.
- Application Specific Coating
- Depending on the application, Performance Rotors will have one of the following finishes: Black fusion coating on the rotor hat Grey Fusion 4.0® coating on the entire rotor
- Depending on the application, Performance Rotors will have one of the following finishes: Black fusion coating on the rotor hat Grey Fusion 4.0(R) coating on the entire rotor
- Black fusion coating on the rotor hat and Grey Fusion 4.0® coating on the rotor inboard surface and cooling vanes
- Black fusion coating on the rotor hat and Grey Fusion 4.0(R) coating on the rotor inboard surface and cooling vanes
- Turned Finish
- Turned finish minimizes noise and improves responsiveness for smoother stops.
- S-Groove Slot
- Depending on the application, some Raybestos® Performance Rotors are designed with a patented S-Groove Slot.
- Depending on the application, some Raybestos(R) Performance Rotors are designed with a patented S-Groove Slot.
RAYBESTOS 981023 Specifications
Product Attributes
| ABS Tone Ring Included | No |
| Center Hole Diameter | 2.68 IN |
| Center Hole Diameter | 68.05 MM |
| Conventional Or Drum-In-Hat Type Rotor | Conventional |
| Directional or Non-Directional Brake Surface | Non-Directional |
| Discard Thickness | 0.315 IN |
| Discard Thickness | 8 MM |
| Harmonize Code | 8708.30.5030 |
| Inside Diameter | 7.339 IN |
| Inside Diameter | 186.4 MM |
| Material | Cast Iron |
| Mounting Bolt Hole Circle Diameter | 4.486 IN |
| Mounting Bolt Hole Circle Diameter | 113.95 MM |
| Mounting Bolt Hole Diameter | 0.512 IN |
| Mounting Bolt Hole Diameter | 13 MM |
| Mounting Bolt Hole Quantity | 5 |
| Nominal Thickness | 0.276 IN |
| Nominal Thickness | 7 MM |
| Outside Diameter | 10.929 IN |
| Outside Diameter | 277.6 MM |
| Overall Height | 1.555 IN |
| Overall Height | 39.5 MM |
| Salability Restrictions | No |
| Solid Or Vented Type Rotor | Solid |
| Stud/Lug Hole Quantity | 5 |
| Surface Type | Smooth |
| UNSPSC Code | 25171715 |
Additional Information
| Country of Origin (Primary) | CN |
| Canadian Harmonizing Tariff Code | 8708309990 |
| Harmonized Tariff Code (HTS) | 8708305030 |
| UPC | 00887213082715 |
RAYBESTOS 981023 Cross References
| Brand | Part Number |
|---|---|
| ADVANCE AUTO PARTS | YH507666P |
| AUTOPARTSOURCE | 474881 |
| AUTOXTRA | AX901292 |
| AutoZone | 77108DG, 77108DL |
| Autoxtra | AX901292P |
| BENDIX | PRT6257 |
| BRAKEBEST | 912034RGS, 981023R, 981023, 981023FZN |
| Brembo | 08.C423.11 |
| CENTRIC | 120.45085, 120.45085CRY, 121.45085, 126.45085SL, 126.45085SR, 127.45085L, 127.45085R, 128.45085L, 128.45085R, 227.45085L, 227.45085R, 320.45085 |
| Centric Parts | 120.45085, 120.45085CRY, 121.45085, 126.45085SL, 126.45085SR, 127.45085L, 127.45085R, 128.45085L, 128.45085R, 227.45085L, 227.45085R, 320.45085, 320.45085F |
| DURA CORP | BR901292 |
| DuraGo | BR901292 |
| Dynamic Friction Company | 600-80051 |
| MAGMA PRODUCTS | PSR363048 |
| MAZDA | GHT226251, GV9B26251A |
| NAPA BRAKES | SDK6761 |
| NEWTEK AUTOMOTIVE | R1292 |
| Newtek Automotive USA | R1292 |
| POWERSTOP | JBR1597EVC |
| PROMAX | 14-610007 |
| Qualis | 44788 |
| TopNotch | TN981023GEO |
| Ultra Brake | MA-8053 |
| WAGNER | BD180655E |
| WORLDPAC | 1407-507666, 1427-613654 |
| Wagner Brake | BD180655E |
| Winhere | 6612034 |
RAYBESTOS 981023 Fits Vehicles
- Mazda 6 (2014-2021)
