MERITOR M44D75180 Part Description
Manufacturer
Product Description
Air Disc Brake, Rotor
Features & Benefits
- Rotor face receives pad contact across the braking surface
- Mounting-hole pattern secures the disc at the wheel-end hub area
- Brake-family layout matches the service group called out for this rotor
- Handles heat transfer created during repeated brake applications
- Guides brake repair toward the rotor instead of caliper hardware

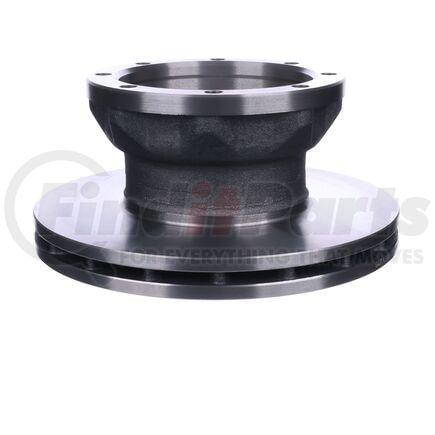

Meritor Disc Brake Rotor
The Meritor Disc Brake Rotor is built with 8 mounting holes, a 325 mm outside diameter, and 28 mm discard thickness for air disc brake service. The rotor creates the friction surface that the pads clamp against during braking, turning wheel rotation into controlled stopping force. Its mounting pattern ties the disc to the hub area, while the rotor face takes the heat and contact load from repeated brake applications. The Meritor M44D75180 keeps the service centered on the rotor section of the wheel-end brake assembly.
MERITOR M44D75180 Specifications
Product Attributes
| Discard Thickness | 1 1/8 in. or 28 mm |
| Outside Diameter | 12 13/16 in. |
| Application | Wabco Pan 17 |
| Bolt Circle Diameter | 7 11/16 in. |
| Bolt Hole Diameter | M14 X 2.0 |
| Brand | Meritor |
| Disc Thickness | 1 5/16 in. or 34 mm |
| Flange Thickness | 1/2 in. or 13 mm |
| Model | Pan 17 |
| Mounting Holes | 8 |
| Original Equipment Manufacturer | Wabco |
| Pallet Quantity | 20 |
| Pilot Diameter | 6 13/16 in. |
| Rotor Depth | 5 7/8 in. |
| Tooth | Cast Teeth |
| Type | U-Shaped |
| Weight | 43.75 |
| Brand Or Model Compatibility | Meritor |
| Model Number | Pan 17 |
| Bolt Hole Size | M14 X 2.0 |
| Mounting Bolt Hole Quantity | 8 |
| New Disc Thickness | 1 5/16 in. or 34 mm |
MERITOR M44D75180 Cross References
| Brand | Part Number |
|---|---|
| TDAM44D75180, RIC31251, 55030PK, 55030PK65, 8235M44D75180, ADR180716, BR17D119, FX153175180, MPBR75180, PL75180, RB75180, ROM44D75180, SSR933, TW125704, TWDM44D75180 | |
| AUTOMANN | 153175180 |
| Bendix | AMR2224N |
| CELERITY | CSD17A19 |
| CENTRIC | 120.86022 |
| DAYTON PARTS BATCO | 125704 |
| DURABRAKE | 75180 |
| Dexter | 70005 |
| FORT GARRY | SSR933 |
| HALDEX | MPBR75180 |
| Hendrickson | S33391 |
| NEOTEK | 1065034GF |
| Neotek Drums and Rotors | 1065034GF |
| RAYBESTOS | 8577 |
| TORQSTOP | RUW75180 |
| WABCO | CT826 |
| Webb | 55030F, 55030P |
