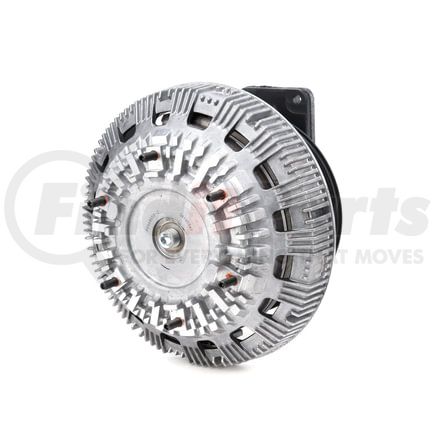

HORTON 99A9656-2 Engine Cooling Fan Clutch

★★★★★ (0)
Horton 99A9656-2 Engine Cooling Fan Clutch Engine Cooling Fan Clutch
HORTON
Tap to view 3 more

$3,874.49

Limited availability at this price!

In Stock

Get as soon as Friday, Nov 20
30-day Return Policy On eligible items Details
Free Ground shipping on orders over $499 details
Orders placed over the weekend will be processed the next business day.

HORTON 99A9656-2 Part Description

Manufacturer

HORTON

Product Description

Engine Cooling Fan Clutch

Application Summary

INTERNATIONAL

Features & Benefits

  • Low eddy-current speeds reduce noise, increase available horsepower, conserve fuel and minimize radiator abrasion
  • Higher, spring-actuated fan speeds make sure necessary cooling is delivered
  • Faster engine warm-ups in cold weather
  • Premium bearings and friction liners
  • High torque for turning large fans
  • Lower parts count for easy installation and maintenance

Two-speed fan clutch, fan clutch, engine cooling, fan drive, performance, cooling system, horsepower, performance

HORTON 99A9656-2 Specifications

Product Attributes

BACK PULLEY DIAMETER7.34 IN
BELT CONFIGURATION8K
Belt Groove Location2.04 IN
BOLT CIRCLE6 IN
Center of JB To Top Right Mounting Hole4.12 IN
Fan Blade Stud Length1.05 IN
FAN PILOT DIAMETER5 IN
Heavy Duty1
HORIZONTAL MOUNTING DISTANCE2.36 IN
Overall Length7.83 IN
Stud Thread Size.312-18 UNC 2A IN
VERTICAL MOUNTING DISTANCE2.4 IN
Fan Bolt Circle6
FRONT PULLEY DIAMETER-

Additional Information

Country of Origin (Primary)US
Harmonized Tariff Code (Schedule B)8483604040
Harmonized Tariff Code (HTS)8483604040
NAFTA Preference Criterion CodeB
OEM's Part Number98A9656-2
Warranty Distance300000
Warranty Distance UOMDH
Warranty Special7500 Hours
Warranty Special UOMTX
Warranty Time36
Warranty Time UOMMO
VMRS Code042003131

HORTON 99A9656-2 Cross References

BrandPart Number
Horton79A9656-2, 98A9656-2
KIT MASTERS99656-2
NAVISTARFLT996562
NAVISTARPFCFLT996562
Navistar4041985C1, HOR99A9656-2, ZBH99A96562, ZBH99A9656-2
