CENTRIC part description

Technical Specifications:

Series C-Tek Series
Solid Or Vented Type Rotor Vented
Outside Diameter 11.81 in.
Discard Thickness 1.18 in.
Nominal Thickness 1.25 in.
Hub Hole/Whl Reg mm 80.0
Mounting Type Floating
Vane Style Pillar
UPC 805890529217
Harmonized Tariff Code 8708305030

Application Summary:

  • 2011 - 2017 Fiat Ducato
  • 2009 - 2015 Peugeot Manager
  • 2014 - 2019 Ram ProMaster
  • 2014 - 2020 Ram ProMaster 1500
  • 2014 - 2020 Ram ProMaster 2500
  • 2014 - 2020 Ram ProMaster 3500
  • 2018 - 2019 Ram ProMaster City

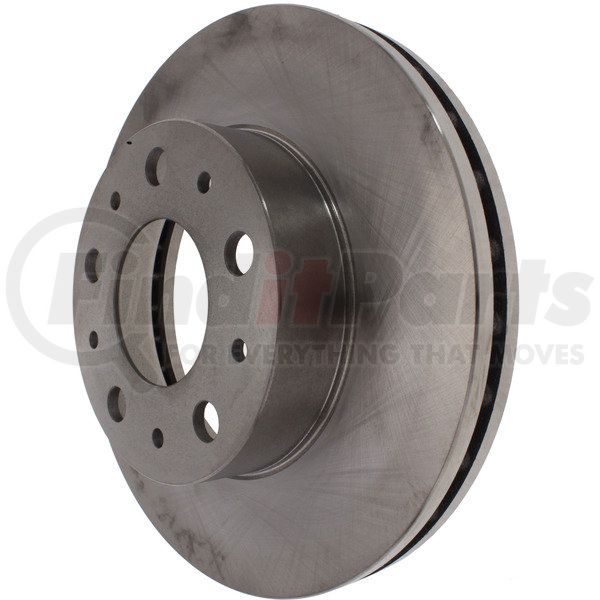

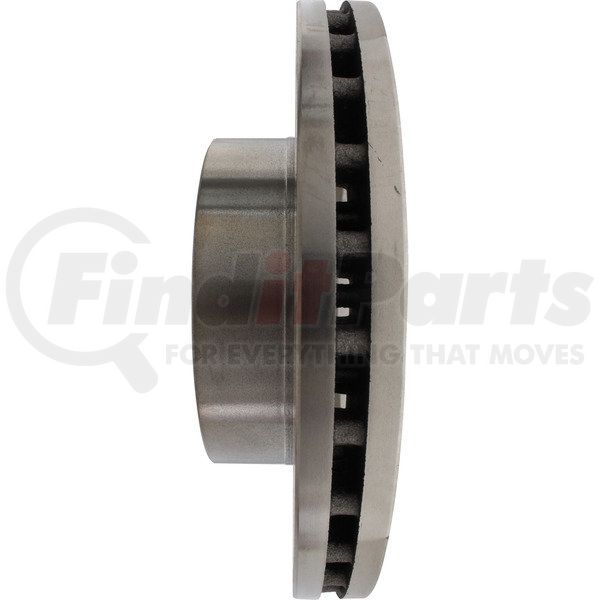

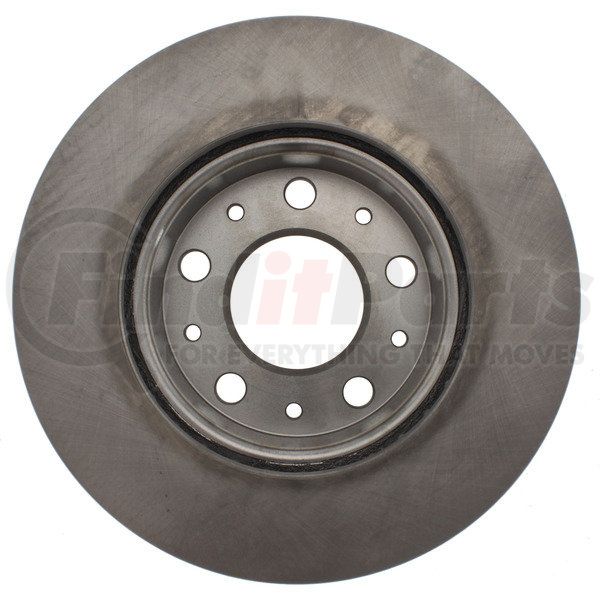

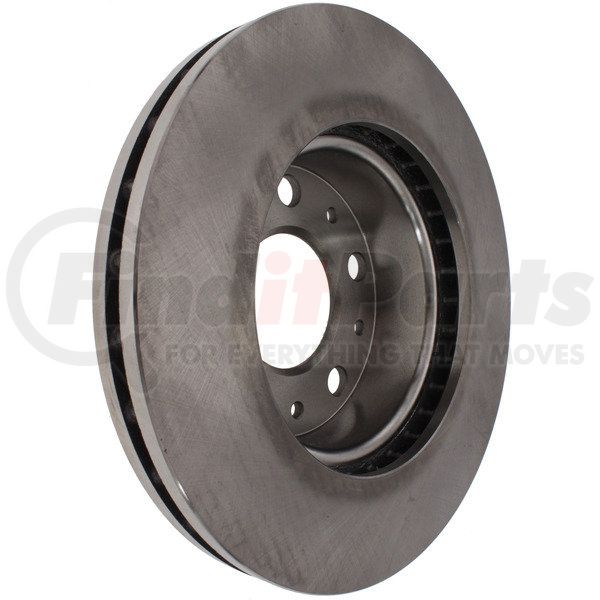

Centric® C-Tek™ Standard Disc Brake Rotor

Drive confidently knowing that you have a Centric® C-Tek™ standard disc brake rotor that ensures smoother and quieter stops. Engineered to original equipment specifications and using OE production processes, this brake rotor is an ideal choice for daily commuters looking for a straightforward replacement for their worn-out rotor.

Features & Benefits

  • Crafted using premium-quality G11H18 metallurgy for superior braking power and durability
  • Built and tested by experts to meet QS and ISO Quality System Standards
  • Centric’s machining processes ensure smooth braking for a more confident brake application
  • Double disc grinding prevents run out and guarantees parallelism for ideal disc thickness variation
  • Friction surface area features non-directional finish, which improves brake rotor and pad break-in
  • Precision-machined non-frictional surfaces for rotor balance and cleaner look
  • With high-quality protective coating for long-lasting rust protection
  • OE-style vane configurations provide thermal efficiency and proper heat transfer
Make Fiat, Peugeot, Ram
Model Ducato, Manager, ProMaster, ProMaster 1500, ProMaster 2500, ProMaster 3500, ProMaster City
Year 2009

Product Description

C-Tek Standard Brake Rotor

Application Summary

Fiat Ducato 2017-2011, Peugeot Manager 2015-2009, Ram ProMaster 1500 2020-2014, ProMaster 1500 2022, ProMaster 2500 2020-2014, ProMaster 2500 2022, ProMaster 3500 2020-2014, ProMaster 3500 2022, ProMaster Rapid 2019-2017

Features & Benefits

  • Non-Directional Finishes. Machined non-friction surfaces. Widest application coverage in the aftermarket

C-Tek; Centric; Standard brake rotor; brake rotor; break rotor; rotors; rotor

Product Attributes

Discard Thickness 1.181 IN
Nominal Thickness 31.900 MM
Overall Height 2.902 IN
Outside Diameter 300.000 MM
ABS Tone Ring Included No
Surface Type Smooth
Solid Or Vented Type Rotor Vented
Bearings Included No
Center Hole Diameter 80.000 MM
Mounting Bolt Hole Circle Diameter 5.118 IN
Stud/Lug Hole Quantity 5
Stud/Lug Hole Diameter 17.600 MM
California Proposition 65 Text [basic] WARNING: Cancer and Reproductive Harm
Disc Mounting [cntrc] Floating
Hat Id [cntrc] In 6.343
Hat Id [cntrc] Mm 161.100
Misc Holes [cntrc] 5
OEM Vane Count [cntrc] 93
Vane Style [cntrc] Pillar
Weight [cntrc] Kgs 10.500
Weight [cntrc] Lbs 23.150

Additional Information

Country of Origin (Primary) CN
Harmonized Tariff Code (Schedule B) 8708300050
Harmonized Tariff Code (HTS) 8708305030
NAFTA Preference Criterion Code B
UPC 00805890529217

CENTRIC 121.67076 Cross Reference

We have 3 alternatives for the 121.67076 by CENTRIC:

Fits Vehicles

  • Ram ProMaster 3500 (2014-2020, 2022)
  • Ram ProMaster 2500 (2014-2020, 2022)
  • Ram ProMaster 1500 (2014-2020, 2022)
  • Ram ProMaster Rapid (2017-2019)
  • Peugeot Manager (2009-2015)
  • Fiat Ducato (2011-2017)

Formed in 2017, Centric® brings two of the industry’s leading undercar parts manufacturers, AP Emissions Technologies and Centric Brakes, under one brand. The merger combines more than 90 years’ worth of experience in aftermarket performance exhaust solutions with market leadership in brakes and chassis systems, resulting in an extensive portfolio of undercar components made available to distribution partners worldwide. From brake discs to catalytic converters, APC-Centric products make use of high-quality materials precision engineering to provide reliable performance at a reasonable cost to the customer. Also, as part of the larger APC Automotive Technologies group, APC-Centric has the competitive advantage of vertically-integrated supply chain and access to a global network of R&D, testing, and manufacturing facilities and customer support channels.
