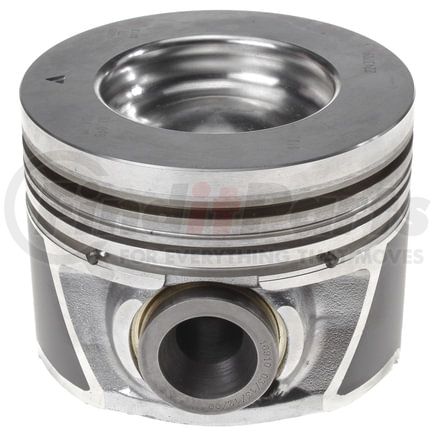

MAHLE 224-3709 - Engine Piston Set
We cannot fulfill orders for this part at this time. Please check back later or request a stock notification to receive an email.
Sometimes we may have similar parts for sale, click the button below to see if anything matches.
MAHLE part description
California Proposition 65 Warning
California Proposition 65 Warning
WARNING: This product can expose you to chemical which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.gov. (Read more)
Product Description
Engine Piston Set
Product Attributes
| Oversized | No |
| Top Compression Ring Thickness | 3.00 MM |
| Second Compression Ring Thickness | 2.00 MM |
| Oil Ring Thickness | 3.00 MM |
| Piston Pin Outside Diameter | 34.50 MM |
| Piston Head Type | Bowl |
| Piston Material | Aluminium |
| Bore Diameter (in) | 4.055 |
| Bore Diameter (mm) | 103.0 |
| Coated Skirt | Yes |
| Compression Distance (in) | 1.961 |
| Compression Height (in) | Standard |
| Compression Height (mm) | 49.80 |
| Measure Skirt Clearance At | 0.551in from the bottom of skirt |
| Piston Item Grade | OE Replacement |
| Piston Length (in) | 79.8 |
| Piston oversize | Standard |
| Piston Pin Hole Location | Offset |
| Piston Pin Retention Type | Floating |
| Piston Recess Depth (mm) | 15.6 |
| Piston Recess Diameter (mm) | 59.8 |
| Piston Skirt Clearance (in) | 0.0039 |
| Piston Skirt Clearance (mm) | 0.0991 |
| With Piston Rings | No |
Additional Information
| Country of Origin (Primary) | TR |
| Harmonized Tariff Code (Schedule B) | 8409914000 |
| Remanufactured Part | N |
| Warranty Time | 12 |
| Warranty Time UOM | MO |
| UPC | 00027067836533 |
Part Interchanges
Fits Vehicles
- GMC Sierra 3500 Classic (2007)
- GMC Sierra 2500 HD Classic (2007)
- Chevrolet Silverado 3500 Classic (2007)
- Chevrolet Silverado 2500 HD Classic (2007)
- GMC Savana 4500 (2009-2010)
- Chevrolet Express 4500 (2009-2010)
- Chevrolet Silverado 3500 HD (2007-2010)
- GMC Sierra 3500 HD (2007-2010)
- Chevrolet Silverado 3500 (2006)
- Chevrolet Silverado 2500 HD (2006-2010)
- GMC Sierra 3500 (2006)
- GMC Sierra 2500 HD (2006-2010)
- GMC Savana 3500 (2006-2010)
- GMC Savana 2500 (2006-2010)
- Chevrolet Express 3500 (2006-2010)
- Chevrolet Express 2500 (2006-2010)
