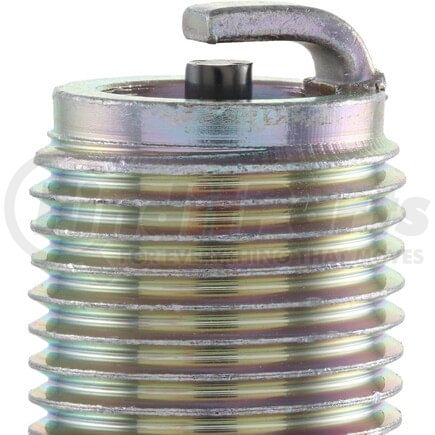

(888) 312-8812 Login SignupNGK SPARK PLUGS BR9ES SOLID S25 NGK Standard Spark Plug Shop Pack
Tap to view 2 more
No Stock Available
We cannot fulfill orders for this part at this time. Please check back later or request a stock notification to receive an email.
We may have similar parts for sale. Search Alternatives >
NGK SPARK PLUGS BR9ES SOLID S25 Part Description
Manufacturer
Product Description
NGK Standard Spark Plug Shop Pack
Features & Benefits
- ACTUAL OE or EQUIVALENT DESIGN: OEM quality construction nickel alloy center electrode provides consistent performance
- RECOMMENDED USAGE: Best for vehicles with OE nickel alloy plugs, not recommended on vehicles with factory precious metal plugs
- NGK's OE CERAMIC TECHNOLOGY: High grade alumina silicate ceramic creates a stronger insulator for optimal dielectric performance
- SOLID COPPER CORE: 98% pure copper core offers superior heat dissipation, conductivity and ultra wide heat ranges
- COLD-ROLLED THREADS: Prevents cross-threading and damage to cylinder heads
- TRIVALENT METAL PLATING: Delivers superior anti-corrosion and anti-seizing properties, ensuring ease of installation and removal
NGK SPARK PLUGS BR9ES SOLID S25 Specifications
Product Attributes
| Part Number | BR9ES SOLID S25 |
| Stock Number | 5984 |
| Short Style Spark Plug | No |
| Service Number | BR9ES SOLID S25 |
| Resistance | 5000.0 82 |
| Ground Electrode Tip Design | Standard |
| Ground Configuration | J-Gap |
| Ground Electrode Core Material | Nickel |
| Washer(s) Included | Yes |
| Grade Type | Standard Replacement |
| Electrical Terminal Type | Non-Removable Nut |
| Center Electrode Core Material | Copper |
| Center Electrode Tip Material | Nickel |
| Pre-Gap Size | .032 IN |
| Ground Electrode Quantity | 1 |
| Hex Size | 13/16" |
| Insulator Height | 2.20 IN |
| Manufacturer Heat Range | 9 |
| Seat Type | Flat |
| Reach | 0.750 IN |
| Thread Diameter | 0.472 IN |
| Insulator Material | Ceramic |
| Resistor Type | Yes |
| Skirt Length | 0.0 IN |
| Ground Electrode Tip Material | Nickel |
| Skirt | No |
| Center Electrode Insulator Tip Projection | 0.04 IN |
| Center Electrode Design | Standard |
| Washer Type | Crush |
| Center Electrode Projection | Non-Projected |
| Metallurgy | Copper |
| Thread Type Standard | Metric |
| Pre-Gap Size | 0.8 MM |
| Insulator Height | 56.0 MM |
| Reach | 19.0 MM |
| 6648 | 0.0 MM |
| Thread Size | M14 - 1.25 |
| Center Electrode Insulator Tip Projection | 1.0 MM |
Additional Information
| Harmonized Tariff Code (HTS) | 8511100000 |
| Warranty Time UOM | MO |
| Warranty Time | 2 |
| Country of Origin (Primary) | JP |
| UPC | 00087295059845 |
| VMRS Code | 033003005 |
| UNSPSC | 26101732 |
NGK SPARK PLUGS BR9ES SOLID S25 Cross References
| Brand | Part Number |
|---|---|
| Champion Spark Plug | 818, RN2C |
| E3 Spark Plugs | E3.31 |
| N/A | BR9ES SOLID S25 |
| NGK | 5984 |
NGK SPARK PLUGS BR9ES SOLID S25 Fits Vehicles
- Polaris Trail Touring DLX (2005-2006, 2008-2009)
- Polaris Super Sport (2004)
- Ski-Doo Skandic WT LC (2001)
- Yamaha VK540 III (1999)
- Yamaha PZ500 Phazer 500 (1999)
- Ski-Doo Mach 2 MHR (1999)
- Ski-Doo Formula Deluxe 670 (1999)
- Ski-Doo Formula Deluxe 500 LC (1999)
- Ski-Doo Formula Deluxe 380 Fan (1999)
- Yamaha VX600XTR VMAX 600 XTR (1998)
- Yamaha VX600XTCD VMAX 600 XTC Deluxe (1998)
- Ski-Doo Tundra R (1998-1999)
- Ski-Doo MX Z 500 (1998-1999)
- Ski-Doo Formula Z 670 (1998-1999)
- Ski-Doo Formula S Electric (1998)
- Ski-Doo Formula III 700 R (1998)
- Ski-Doo Formula III 700 (1998-1999)
- Ski-Doo Formula Deluxe 583 (1998)
- Yamaha VX700SX VMAX 700 SX (1997)
- Yamaha VX600XTC VMAX 600 XTC (Reverse) (1997)
- Yamaha VX600XTC VMAX 600 XTC (1997-1998)
- Yamaha VX600XT VMAX 600 XT (1997-1998)
- Yamaha VX600SX VMAX 600 SX (1997)
- Yamaha PZ480E Phazer SS Electric (1997-1998)
- Yamaha PZ480 Phazer SS (1997-1998)
- Ski-Doo Formula Deluxe 500 (1997-1998)
- Ski-Doo Formula 583 (1997)
- Yamaha VX600XTW VMAX 600 XT Proaction Plus (1996)
- Yamaha VX600ST VMAX 600 Mountain Max (1996)
- Yamaha PZ480ST Phazer Mountain Lite (1996)
- Ski-Doo MX Z 670 (1996)
- Ski-Doo MX Z 440 Fan (1996-1999)
- Ski-Doo Formula SLS (1996)
- Ski-Doo Touring SLE (1995-1999)
- Ski-Doo Formula SS (1995-1996)
- Ski-Doo Formula SL (1995-1999)
- Ski-Doo Formula S (1995-1996)
- Ski-Doo Formula MX Z (1995)
- Ski-Doo Formula MX (1995)
- Ski-Doo Formula 599 (1995)
- Yamaha VX600ST VMAX 600 ST (1994-1995)
- Yamaha VX600E VMAX 600 LE (1994-1996)
- Yamaha VX600DX VMAX 600 DX (1994-1996)
- Yamaha VX600 VMAX 600 (1994-1997, 1999)
- Yamaha VX500ST VMAX 500 ST (1994)
- Yamaha VX500E VAMX 500 LE (1994-1995)
- Ski-Doo Safari Rally E (1994)
- Ski-Doo Formula ST (1994)
- Yamaha VK540 II (1993-1998)
- Yamaha EX570SX Exciter II SX (1993)
- Yamaha EX570ST Exciter II ST (1993)
- Ski-Doo Skandic II R (1993-1994)
- Ski-Doo Skandic II 503R SLT (1993-1994)
- Ski-Doo Skandic II 503R (1993-1994)
- Ski-Doo Skandic II (1993-1994)
- Ski-Doo Safari Rally (1993)
- Ski-Doo Safari L (1993-1994)
- Ski-Doo Grand Touring (1993-1994)
- Ski-Doo Formula Mach 1 II (1993)
- Arctic Cat Cheetah 440 (1993-1994)
- Yamaha VX750 VMAX-4 (1992)
- Yamaha VT480GT Venture GT (1992-1993)
- Ski-Doo Formula XTC R (1992-1993)
- Ski-Doo Formula XTC II (1992)
- Ski-Doo Formula XTC E (1992)
- Ski-Doo Formula XTC (1992)
- Polaris XLT SP (1992)
- Arctic Cat Lynx Deluxe (1992-1993)
- Arctic Cat Jag Special (1992)
- Arctic Cat Jag Deluxe (1992-1994)
- Arctic Cat Jag AFS LT 2 Speed (1992-1993)
- Arctic Cat Jag AFS LT 1 Speed (1992-1993)
- Arctic Cat EXT 550 (1992)
- Yamaha VT480 Venture XL (1991-1997)
- Yamaha PZ480ST Phazer II ST (1991-1995)
- Ski-Doo Scout (1991-1992)
- Ski-Doo Formula Plus XTC (1991-1992)
- Ski-Doo Formula Plus X (1991-1992)
- Ski-Doo Formula Plus MX X (1991)
- Ski-Doo Formula Plus MX (1991)
- Ski-Doo Formula Plus E (1991-1992)
- Ski-Doo Formula Mach 1 X (1991)
- Arctic Cat Prowler Special (1991-1992)
- Arctic Cat Prowler Mountain Cat (1991-1992)
- Arctic Cat Jag AFS Long Track (1991)
- Arctic Cat Jag AFS Deluxe (1991)
- Arctic Cat El Tigre EXT Mountain Cat (1991)
- Yamaha PZ480E Phazer II LE (1990-1996)
- Yamaha EX570H High Altitude (1990)
- Ski-Doo Safari LXE (1990-1991)
- Ski-Doo Safari LX (1990-1991)
- Ski-Doo Formula Plus LT (1990)
- Ski-Doo Formula Mach 1 XTC (1990, 1993)
- Ski-Doo Formula Mach 1 (1990, 1993, 1995)
- Polaris Trail WideTrak (1990)
- Polaris Trail Super Trak (1990)
- Polaris Trail Deluxe (1990)
- Polaris Trail (1990)
- Polaris Sprint ES (1990)
- Polaris Sport GT (1990)
- Polaris Sport (1990, 2000)
- Polaris Classic (1990)
- Polaris 650 SKS (1990)
- Polaris 650 RXL (1990)
- Polaris 650 (1990-1991)
- Polaris 500 SP (1990)
- Polaris 500 SKS (1990)
- Polaris 500 (1990)
- Polaris 400 (1990)
- Arctic Cat Jag Mountain Cat (1990-1991)
- Arctic Cat El Tigre EXT Special (1990)
- Ski-Doo Safari Scout E (1989)
- Ski-Doo Safari Scout (1989-1990)
- Ski-Doo Safari Saga (1989)
- Ski-Doo Safari Citation E (1989-1990)
- Ski-Doo Safari Chyenne (1989)
- Ski-Doo Safari 503R (1988)
- Ski-Doo Safari 503 (1988)
- Ski-Doo Tundra LTS (1987)
