Redneck Trailer 8-407-5UC3-EZ - Dexter 6 on 5.5in Hub & Drum For 4.4K Dexter Axles

10" x 2-1/4" Hub & Drum W/ 6 on 5.5" Bolt Pattern For 4,400lb AxlesDexter strives to provide the best in quality and value. Hub & drum kits come with some of your main components like the inner and outer bearings. The grease seal, grease cap, and wheel nuts are also included. Each hub has a 2,200 lb capacity. Spindle nut and spindle washer sold separately. Each hub & drum has unique cooling fins to help keep your brakes cool. This hub & drum will not fit Al-Ko Kober Axles or Industrial Axle. Proudly made in the USA!

Kit Includes:

• 1 L68149 Inner Bearing (1.378" ID)
• 1 LM67048 Outer Bearing (1.25" ID)
• 1 LM67010 Outer Race (Already Pressed In) 2.328" OD
• 1 L68111 Inner Race (Already Pressed In) 2.361" OD
• 1 10-19 Grease Seal (1.719" x 2.565")
• 1 46749 Grease Cap (1.986" OD)
• 1 21-41-1 Grease Cap (1.986" OD)
• 1 85-1 Grease Cap Plug
• 6 X1023R Coned Wheel Nuts
• 1 6 on 5.5" Hub & Drum
• 2,200 lb Capacity Per Hub
• Use with a 10" x 2-1/4" 4,400lb brake

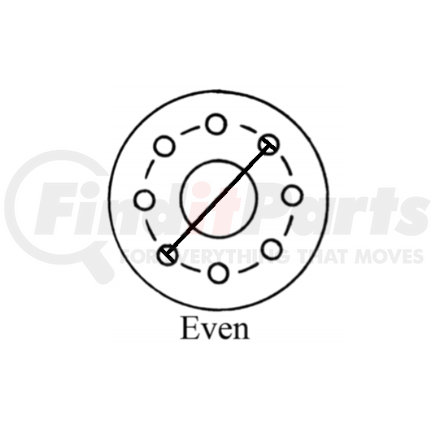

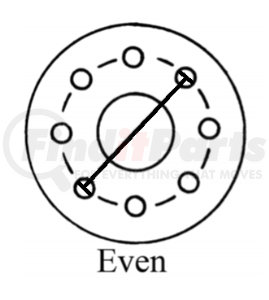

Please refer to the diagram Image for these measurements

To determine the bolt circle on hubs or wheels with an even number of studs, measure center-to-center of studs directly across from each other on the diameter(bolt patterns are always measured in inches). Example: 8 on 6 1/2 would mean 8 studs with 6 1/2” center-to-center diameter.

REDNECK TRAILER 8-407-5UC3-EZ Cross Reference

We have 1 alternatives for the 8-407-5UC3-EZ by REDNECK TRAILER:

• 359707
