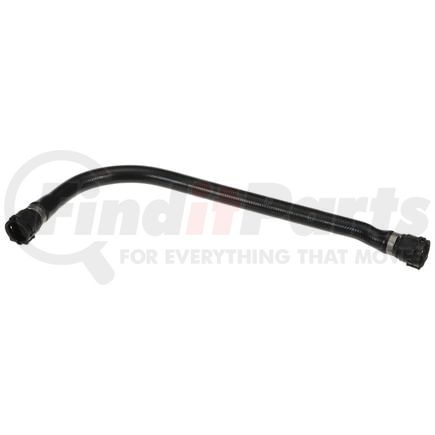

Name: Gates 24105 Premium Modular Coolant Hose
SKU: 24105
Price: 45.99 USD
Availability: InStock

GATES 24105 Part Description

Premium Modular Coolant Hose

2003-01 BMW, 530I, 6-Cyl. 3.0 L, Reservoir To Aux. W.P.

Specifically-engineered materials resist collapse under vacuum
Specifically-engineered materials resist collapse under vacuum
Engineered to resist electrochemical degradation - the leading cause of hose failure
Engineered to resist electrochemical degradation – the leading cause of hose failure
EPDM tube; synthetic fiber knit reinforcement, heat-, ozone- and chemical coolant-resistant EPDM cover
Manufactured with OEM-exact hose components (quick connects, branch connectors/tees, sensors, etc.)
Meets SAE 20R3 EC Class D1 under 25mm (1 in.) ID, SAE 20R4 EC Class D1 for 25mm (1 in.) ID and over
Temperature Range: -40 Deg. F to +257 Deg. F (-40 Deg. C to +125 Deg. C)
Note: Gates recommends replacing clamps each time a new coolant hose is installed
Caution: Do not use for fuel or oil transfer applications

GATES 24105 Specifications

Centerline Length	23.5 IN
Modular	Yes
Modular Components Included	2 Female Quick Connectors
Branch Quantity	0
Quick Connect Fitting Quantity	2
End 1 Inside Diameter	.90 in
End 2 Inside Diameter	.90 in
Contains Spring	No
Material	EPDM, Plastic, Steel
Molded	Yes
Centerline Length	597 MM
End 1 Inside Diameter	23 MM
End 2 Inside Diameter	23 MM

Harmonized Tariff Code (Schedule B)	4009310000
Country of Origin (Primary)	TR
UPC	00770075564003
VMRS Code	042004014
UNSPSC	40142000
