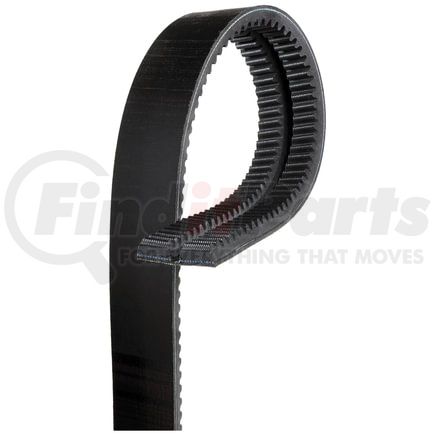

(888) 312-8812 Login SignupGATES 2/TR28483PB Green Stripe PowerBand Truck & Bus Series Joined V-Belt
Tap to view 1 more
No Stock Available
We cannot fulfill orders for this part at this time. Please check back later or request a stock notification to receive an email.
We may have similar parts for sale. Search Alternatives >
GATES 2/TR28483PB Part Description
Manufacturer
Product Description
Green Stripe PowerBand Truck & Bus Series Joined V-Belt
Application Summary
1999-1995 Peterbilt, 379, Cummins N14 Diesel, Fan
Features & Benefits
- Molded notches reduce bending stress, especially on small diameter pulleys, while dissipating heat
- High modulus, high strength tensile cord
- Oil and heat-resistant construction throughout
- Meets SAE J636b and SAE J637 specifications
- Meets RMA oil and heat resistant standards and static conductivity requirements
- NOTE: Some sizes available as Gates PowerBand joined V-belts
GATES 2/TR28483PB Specifications
Product Attributes
| Type | Truck & Bus Joined V-Belt |
| Cross Section Designation | VA |
| Angle | 36 |
| Strand Quantity | 2 |
| Top Width | 1.8125 in |
| Top Width Per Strand | .875 IN |
| Outside Circumference | 49.14 in |
| Effective Length | 48.13 in |
| Construction | Notched |
| Notched | Yes |
| Belt Material | EPDM |
| Cord Material | Polyester |
| Top Width | 46 mm |
| Top Width Per Strand | 22 MM |
| Outside Circumference | 1248 mm |
| Effective Length | 1223 mm |
Additional Information
| Country of Origin (Primary) | US |
| Harmonized Tariff Code (Schedule B) | 4010323000 |
| UPC | 00072053284287 |
| VMRS Code | 065005003 |
| UNSPSC | 26111801 |
GATES 2/TR28483PB Part Interchanges
| Brand | Part Number |
|---|---|
| ACDelco | 2T28483 |
| Carquest | 2/TR28483PB |
| NAPA Belts/Hose | 25-28483-2 |
| Alliance Truck Parts | GT2/TR28483PB, GT2PB28483, GT2PB28483E |
| NAPA | 25-12250-2 |
GATES 2/TR28483PB Fits Vehicles
- Kenworth W900 (1981)
- Autocar AT (1983-1988)
- Peterbilt 377 (1995-1999)
- Peterbilt 378 (1995-1999)
- Peterbilt 379 (1995-1999)
- White/GMC WCL (1988)
- White/GMC WHL (1988)
- White WIA (1988)
- White/GMC WCM (1988)
- White/GMC WIL (1988-1991)
- White/GMC WCA (1988)
- White/GMC WHM (1988)
- White WHM (1981, 1984-1987)
- White WIL (1984-1988)
- White WCL (1982-1988)
- White WHS (1981-1988)
- White WHL (1981-1988)
- White WCM (1981-1988)
- White WCA (1988)
- White/GMC WIM (1988-1994)
- White/GMC WHS (1988)
- White WIM (1984-1988)
- White WCS (1981-1988)
- White/GMC WX (1988)
- White/GMC WG (1990-1994)
- White/GMC WCS (1988)
- White/GMC WIA (1988-1995)
- White WX (1981-1988)
GATES 2/TR28483PB Cross References
We have 1 alternatives for the 2/TR28483PB by GATES:
