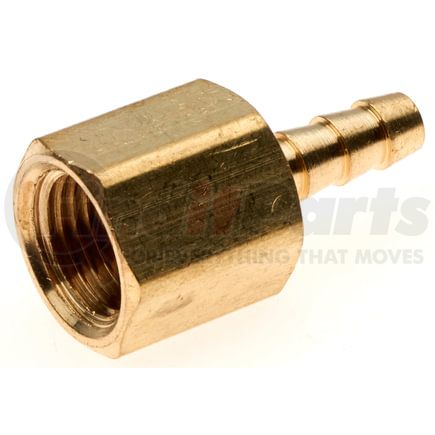

Gates G38110-0302 - Female Pipe NPTF (Barb Stem)
$699
5 day lead time
limited availability at this price!
Pay over 3-12 months with
. Learn more
. Learn more
GATES part description
Product Description
Female Pipe NPTF (Barb Stem)
Features & Benefits
- Used with low pressure multi-purpose or general purpose rubber hose and thermoplastic tubing
- Contact Gates to verify compliance to desired specifications and suitability for particular applications
- Temperature Range: -40 Deg. F to +160 Deg. F (-40 Deg. C to +71 Deg. C)
Product Attributes
| Coupling Description | Barb Stem Female Pipe NPTF |
| Industrial Description | 3BS-2FP |
| Thread Size | 1/8-27 |
| Inside Diameter | .1875 IN |
| Maximum Working Pressure | 150 PS |
| Temperature Rating | -40 Deg. F to +160 Deg. F (-40 Deg. C to +71 Deg. C) |
| Material | 360 Brass |
| Inside Diameter | 4.8 MM |
Additional Information
| Harmonized Tariff Code (Schedule B) | 7412200065 |
| Country of Origin (Primary) | US |
| UPC | 00029769145531 |
| VMRS Code | 059032012 |
| UNSPSC | 31163000 |
Part Interchanges
