(888) 312-8812 Login SignupHELLA 004811011 Supertone High-Tone, 12 V, 380 Hz with Bracket
$10299
Limited Availability
Due to limited availability, we will confirm your order and notify you within 1 business day.
HELLA 004811011 Part Description
Manufacturer
Product Description

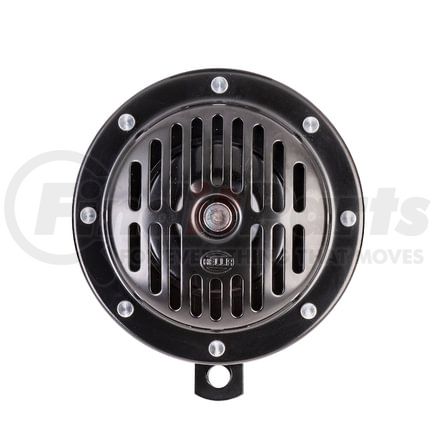

Supertone High-Tone, 12 V, 380 Hz with Bracket
Features & Benefits
- With moisture protection
HELLA 004811011 Specifications
Product Attributes
| Sound Level [dB(A)] | 114 |
| Frequency Range [hz] | 310 |
| Power Consumption [w] | 72 |
| Voltage [V] | 12 |
| Assy./disassy. By Qualified Personnel Required! | . |
| Housing Colour | Black |
| Measurements [cm] | 6.1 x 14.3 |
| Temperature Range From [°c] | -40 |
| Frequency Range To [hz] | 380 |
| Test Mark | ECE-R28 |
| Bracket | M10 mounting screw |
| Temperature Range To [°c] | 90 |
| Diameter [cm] | 13 |
| Single Includes | (1) Low-Tone or High-Tone Disc Horn, Mounting Brackets, Step-by-Step Mounting Instructions |
| Protection | IP54 |
| Mounting Type | With 6.3 mm blade terminal contacts, open |
| Homologation | ECE-R28 |
| Diameter [in] | 5.11 |
Additional Information
| Harmonized Tariff Code (HTS) | 8512300020 |
| Warranty Time UOM | MO |
| Warranty Time | 12 |
| Country of Origin (Primary) | CN |
| UPC | 04082300013924 |
HELLA 004811011 Part Interchanges
| Brand | Part Number |
|---|---|
| Renault | 50 00 687 334 |
| Mack | 4381 85117 |
HELLA 004811011 Cross References
We have 2 alternatives for the 004811011 by HELLA:
