(888) 312-8812 Login SignupWAGNER BD125799E Wagner Brake BD125799E Disc Brake Rotor
Tap to view 2 more
MSRP: $73.09
$5549
Save $17.60
Limited availability at this price!
In Stock
Get as soon as Thursday, Sep 24

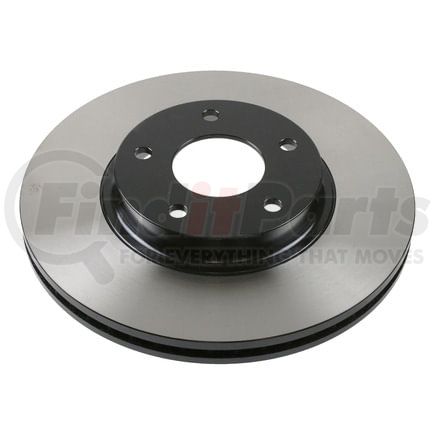

WAGNER BD125799E Part Description
Manufacturer
Product Description
Disc Brake Rotor
Application Summary
2002-2006 Nissan Altima SL SE S Base (Front) (Qualifier: 5 Stud Wheel, with 296 (mm) Diameter Rotor, Black E-Coat on non-braking surface to prevent rust and corrosion); 2002-2003 Nissan Maxima (Front) (Qualifier: 5 Stud Wheel, with 296 (mm) Diameter Rotor, Black E-Coat on non-braking surface to prevent rust and corrosion); 2002-2004 INFINITI I35 (Front) (Qualifier: 5 Stud Wheel, with 296 (mm) Diameter Rotor, Black E-Coat on non-braking surface to prevent rust and corrosion)
Features & Benefits
- ENGINEERED FOR PERFORMANCE -- OE-specific vane design provides effective braking power and heat dissipation while controlling noise, vibration and harshness
- OE-STYLE DESIGN -- Restores like-new braking performance while matching OE fit, form and function
- PREMIUM PROTECTION -- E-Shield(R) protective coating is applied to non-braking surfaces to inhibit corrosion
- RESISTS CORROSION -- Painted edges & hats provide reliable corrosion resistance
- TURNED AND SMOOTH FINISH -- Requires less pad break-in time and aids in proper bedding
- NON-DIRECTIONAL FINISH -- Reduces pad break-in time and promotes proper bedding for consistent stopping power
- EASY INSTALLATION -- Rotors are packaged in a Vapor Corrosion Inhibitor bag, eliminating the need for an oil coating which reduces prep time
- CONSISTENT PERFORMANCE -- Precision ground surface finish delivers reliable performance, noise reduction and heat dissipation
- PROPER BALANCE -- Spin balanced and cut to limit vibration for improving stability and control
- SMOOTH BRAKING -- Application-specific OE vane design and thickness help control noise, vibration and harshness (NVH)
- PERFECT PAIRING -- Pair Wagner premium rotors with premium brake pads for optimal performance
- BALANCED FOR SMOOTH STOPS -- Precision-balanced to minimize pedal pulsation and deliver a smoother ride
- QUALITY MATERIALS -- Proven metallurgy provides structural integrity and heat dispersion for reliable performance
- EASY TO INSTALL -- Simply wash the oil off and bolt on; no machining required
- COMPREHENSIVE COVERAGE -- Available for foreign and domestic nameplates
- PERFECT PAIRING -- Pair Wagner® Standard rotors with Wagner brake pads and calipers (sold separately) for optimal performance
- PERFECT PAIRING -- Pair Wagner(R) Standard rotors with Wagner brake pads and calipers (sold separately) for optimal performance
WAGNER BD125799E Specifications
Product Attributes
| Material | Cast Iron |
| Nominal Thickness | 0.945 IN |
| Disc Finish | Directional |
| Construction | Full Cast |
| Rust Resistant Coating | Yes |
| Outside Diameter | 295.9 MM |
| Surface Type | Smooth |
| Solid Or Vented Type Rotor | Vented |
| Height | 49.9 MM |
| Part Description | Disc Brake Rotor |
| Nominal Thickness | 24.0 MM |
| Stud/Lug Hole Quantity | 5 |
| Outside Diameter | 11.650 IN |
| Overall Height | 49.9 MM |
| Overall Height | 1.965 IN |
| Bearings Included | No |
| Directional or Non-Directional Brake Surface | Non-Directional |
| ABS Tone Ring Included | No |
| Center Hole Diameter | 68.0 MM |
| Center Hole Diameter | 2.677 IN |
| Conventional Or Drum-In-Hat Type Rotor | Conventional |
| Discard Thickness | 0.866 IN |
| Discard Thickness | 22.0 MM |
| Mounting Bolt Hole Circle Diameter | 114.3 MM |
| Mounting Bolt Hole Circle Diameter | 4.500 IN |
| Mounting Bolt Hole Diameter | 12.8 MM |
| Mounting Bolt Hole Diameter | 0.505 IN |
| Prop 65 Label (Yes/No) | No |
Additional Information
| Country of Origin (Primary) | CN |
| Harmonized Tariff Code (Schedule B) | 8708305030 |
| Harmonized Tariff Code (HTS) | 8708305030 |
| UPC | 00008536933809 |
| VMRS Code | 013017001 |
| UNSPSC | 25171715 |
WAGNER BD125799E Cross References
| Brand | Part Number |
|---|---|
| ACDelco | 18A1451, 18A1451A, 18A1451AC |
| Aimco | 31306 |
| Autospecialty | JBR919 |
| Bendix | 145362 |
| Bosch | 40011032 |
| BrakeBest Select Drum/Rotor | 980074RGS |
| Brembo | 25642 |
| CENTRIC | 120.42070 |
| Carquest | 31306 |
| Carquest Platinum Plus Coated Rotors | YH145362C |
| Carquest Wearever | YH145362 |
| Centric Parts | 120.42070, 121.42070, 12042070, 12142070, 120.42070CRY, 125.42070CRY, 320.42070F |
| Datsun/Nissan | 40206-3Z700, 402063Z600, 402068J005, 402068J006, 402068J007, 402068J015, 40206AL500 |
| DuraGo | BR31306, BR31306-01, BR31306-02 |
| Duralast | 31306, 31306DG |
| Dynamic Friction Company | 600-67049, 604-67049 |
| INFINITI | 402063Z700 |
| NAPA BRAKES | 880074CR, 48880074, 248880074 |
| PowerStop | JBR919, JBR919EVC |
| Pro-Series | PS31306, C25799 |
| Promax | 14-31306, 20-31306 |
| RAYBESTOS | 980074, 980074R |
| Raybestos Brakes | 980074, 980074R, 980074FZN, 980074R2 |
| Winhere | UR000906 |
| Worldparts Synergy | WS1231306 |
WAGNER BD125799E Fits Vehicles
- Nissan Maxima (2002-2003)
- INFINITI I35 (2002-2004)
- Nissan Altima (2002-2006)
