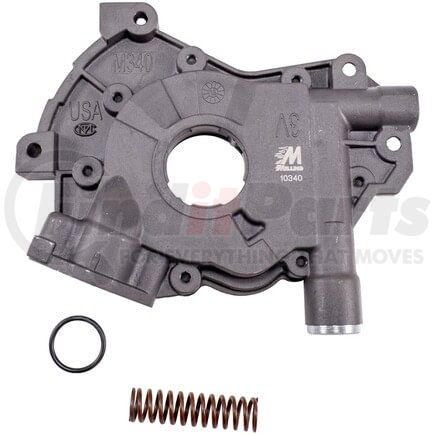

(888) 312-8812 Login SignupMELLING ENGINE PRODUCTS 10340 10340 High Performance, Standard Volume, High Pressure, Anodized Hard Coat Oil Pump With Gasket
Tap to view 4 more
$25799
Limited availability at this price!
In Stock
Get it by Thursday, Jul 2
MELLING ENGINE PRODUCTS 10340 Part Description
Manufacturer
Product Description
High Performance Oil Pump
Features & Benefits
- High pressue standard volume performance upgrade for the M340.
- Anodized hard coated body and a phosphate coated cover.
- Relief valve is retained with a threaded plug instead of a cup.
- Assembled using +20 psi spring and supplied with lower pressure standard spring.
- Uses 15/16" diameter pickup screen.
MELLING ENGINE PRODUCTS 10340 Specifications
Product Attributes
| Title | High Performance Oil Pump |
| Width | 8.000 IN |
| Width | 204.00 MM |
| Height | 6.850 IN |
| Height | 175.00 MM |
| Grade Type | Performance |
| Gasket Or Seal Included | Yes |
| Mounting Hole Quantity | 4 |
| Housing Material | Cast Aluminum |
| Drive Type | Crankshaft |
| Rotor Material | Powdered Metal |
| Oil Pump Type | Rotary |
| Pickup Tube Diameter | 1.000 IN |
| Pickup Tube Diameter | 25.00 MM |
| Mounting Hole Diameter | 0.270 IN |
| Mounting Hole Diameter | 7.00 MM |
| Adjustable Bypass Pressure | Yes |
| Alternate Pressure Springs Included | Yes |
| Oil Pump Pressure Type | High Pressure |
| Oil Pump Volume Type | Standard Volume |
| Additional Pressure Over Stock Percentage | 20 PSI |
| Manufactured For | Ford Modular |
| Manufactured Pressure | (Lt. Blue) 80 PSI |
| Optional Spring Pressure 2 | N/A |
| Upgrade for Pump Number | M340, M360 |
| Optional Spring Pressure 1 | (Brown) 60 PSI |
| Screen Information | 15/16" Bolt On |
| Bolts Included | No |
| Bushing Included | No |
| Cotter Pin Included | No |
| Cover Material | Cast Iron |
| Gears Included | Not Applicable |
| Governor Spinner Included | No |
| Guide Included | Not Applicable |
| Hardware Included | No |
| Inlet Size (in) | 1.000 |
| Intermediate Shaft Included | Not Applicable |
| Inlet Size (mm) | 25.00 |
| Nylon Bushing Included | No |
| O-Ring Included | Yes |
| Pump Cover Included | Yes |
| Spacer Included | No |
| Pickup Screen Included | No |
| Shaft Material | Not Applicable |
| Timing Cover Included | No |
| Washers Included | No |
| Housing Finish | Anodized |
| Additional Volume Over Stock Percentage | 0% |
Additional Information
| Harmonized Tariff Code (Schedule B) | 8413309000 |
| Country of Origin (Primary) | US |
| Harmonized Tariff Code (HTS) | 8413309060 |
| UPC | 00729295511878 |
MELLING ENGINE PRODUCTS 10340 Cross References
MELLING ENGINE PRODUCTS 10340 Fits Vehicles
- Ford Explorer Sport Trac (2007-2010)
- Mercury Mountaineer (2006-2010)
- Ford Explorer (2006-2010)
- Ford E-350 Super Duty (2007)
- Lincoln Mark LT (2006-2008)
- Ford Mustang (2005-2010)
- Lincoln Navigator (2005-2013)
- Ford Expedition (2005-2013)
- Ford F-250 Super Duty (2004-2010)
- Ford F-350 Super Duty (2004-2010)
- Ford F-150 Heritage (2004)
- Ford F-150 (2004-2010)
