GATES part description

Product Description

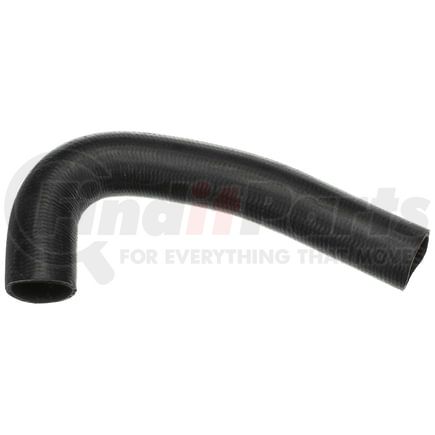

Premium Molded Coolant Hose

Application Summary

2004-1998 Isuzu, NPR, Isuzu 4HE1-TC Diesel, Upper - Eng. To Rad.

Features & Benefits

  • Specifically-engineered materials resist collapse under vacuum
  • Engineered to resist electrochemical degradation, the leading cause of hose failure
  • Pre-shaped to fit and to ensure perfectly sealed conditions
  • EPDM tube; synthetic fiber knit reinforcement; heat-, ozone- and chemical coolant-resistant EPDM cover
  • Meets requirements of SAE 20R4, class D2 and DIN 73411, class A (except for tolerances)
  • Temperature Range: -40 Deg. F to +257 Deg. F (-40 Deg. C to +125 Deg. C)
  • Note: Gates recommends replacing hose clamps each time a new coolant hose is installed
  • Caution: Do not use for fuel or oil transfer applications

Product Attributes

Centerline Length 14.1 IN
9940 No
Branch Quantity 0
9845 0
End 1 Inside Diameter 1.5 in
End 2 Inside Diameter 1.5 in
Contains Spring No
Material EPDM
9839 Yes

Additional Information

Country of Origin (Primary) US
Harmonized Tariff Code (Schedule B) 4009310000
UPC 00770075238690
VMRS Code 042004014
UNSPSC 40142000

Part Interchanges

GATES 23096 Cross Reference

We have 1 alternatives for the 23096 by GATES:

Fits Vehicles

  • GMC W5500 Forward (2000-2007)
  • GMC W3500 Forward (1999-2007)
  • Chevrolet W5500HD Tiltmaster (2004-2007)
  • Chevrolet W4500 Tiltmaster (1999-2007)
  • GMC W4500 Forward (1999-2007)
  • Chevrolet W3500 Tiltmaster (1999-2007)
  • GMC W5500HD Forward (2004-2007)
  • Chevrolet W5500 Tiltmaster (1999-2007)
  • Isuzu NRR (2005-2007)
  • Isuzu NPR-HD (1999-2006)
  • Isuzu NPR (1998-2006)
  • Isuzu NQR (1999-2006)
