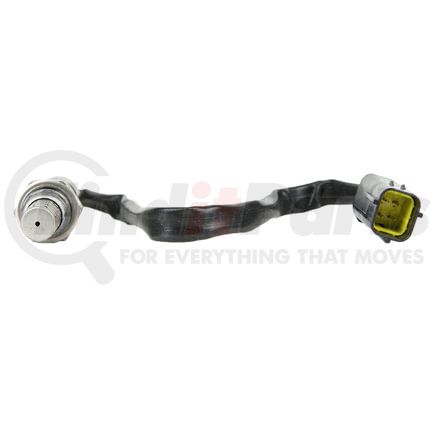

(888) 312-8812 Login SignupDELPHI ES20038 Oxygen Sensor
$8199
Limited availability at this price!
5 Day Lead Time
Get it by Tuesday, Aug 4
DELPHI ES20038 Part Description
Manufacturer
Product Description
Oxygen Sensor
Features & Benefits
- Delphi planar technology covers older, conical design sensors
- Smart design consolidates SKUs without using long wires
- Patented protective sensor coating helps prevent contamination
- Validated for all fuel types, including ethanol blends like E85
- OE tested to 150,000 miles, plus 2,000 hours severe thermal testing
- Delphi is a global OE manufacturer for oxygen sensor and all oxygen sensors are built to Delphi's OE standards
DELPHI ES20038 Specifications
Product Attributes
| Package Contents | Oxygen Sensor, Instruction Sheet |
| Position(s) | Front Right, Left, Right. For the position specific to your vehicle, refer to the Applications. |
| Wiring Harness Length | 12.4 IN |
| Wiring Harness Length | 315.0 MM |
| Sensor Type | Narrow-Band |
| Terminal Type | Blade |
| Universal Or Specific Fit | Specific |
| Band Type | Narrow |
| Wire Quantity | 4 |
| Grade Type | Standard Replacement |
| Connector Shape | Square |
| Terminal Quantity | 4 |
| Connector Gender | Male |
| Terminal Gender | Male |
| Thread Diameter | 0.7 IN |
| Wrench Size | 22mm |
| Thread Size | M18 - 1.5 |
| Overall Length | 13.6 IN |
| Overall Length | 345.0 MM |
| Mounting Type | Threaded |
| Thread Diameter | 18.0 MM |
| Wire Gauge Measurement | 20.0 GU |
| Thread Type Standard | Metric |
| Heated | Yes |
Additional Information
| Warranty Distance UOM | DH |
| Warranty Distance | 12000 |
| Harmonized Tariff Code (Schedule B) | 9027100000 |
| Warranty Time UOM | MO |
| Warranty Time | 12 |
| Country of Origin (Primary) | CN |
| Harmonized Tariff Code (HTS) | 9027102000 |
| UPC | 00689604145678 |
| VMRS Code | 045021011 |
| UNSPSC | 41111924 |
DELPHI ES20038 Cross References
| Brand | Part Number |
|---|---|
| ACDelco | 2131253, 2131365, 2131366, 2131490 |
| BorgWarner | OS139, OS681 |
| Bosch | 13372, 15259, 15708, 15199 |
| DENSO | 234-4068, 234-4724 |
| DENSO Auto Parts | 234-4068, 234-4724 |
| Ford | AJ55-18-8619U, AJD6-18-8619U, F32Z 9F472-A, F32Z 9F472-B, F62Z 9F472-HH, JE49-18-861A, JE50-18-861, JE50-18-861B9U, JE53-18-8619U, KLA6-18-8619U |
| Kem | 138-201, 138-202, 138-301 |
| Mazda | AJ55-18-861, AJ55-18-8619U, AJD6-18-861, AJD6-18-8619U, JE49-18-861, JE50-18-861A, JE50-18-861B9U, JE50-18-861Z, JE53-18-861, JE53-18-8619U, KLA6-18-861, KLA6-18-8619U |
| Motorcraft | DY-672, DY-790 |
| N/A | 25024068, 2344068, 2344724, AJ5518861, AJD618861, JE4918861, JE5018861A, JE5018861Z, JE5318861, KLA618861, 138201, 138202, 138301, AJ55188619U, AJD6188619U, F32Z9F472A, F32Z9F472B, F62Z9F472HH, JE4918861A, JE5018861, JE5018861B9U, JE53188619U, KLA6188619U, DY672, DY790 |
| NTK | 22080, 22092, 22528 |
| Oextra | REA1034 |
| SPECTRA PREMIUM | OS5157, OS5180 |
| Standard Motor Products | SG156, SG157, SG218, SG998, SG309 |
| VEMO | V32760001 |
| Walker Products | 250-24068 |
| Wells | SU273, SU274, SU4597 |
DELPHI ES20038 Fits Vehicles
- Mazda MPV (2002-2006)
- Mazda 626 (1993-1995)
- Mazda 929 (1992-1995)
- Mazda MX-6 (1993-1995)
- Ford Probe (1993-1995)
