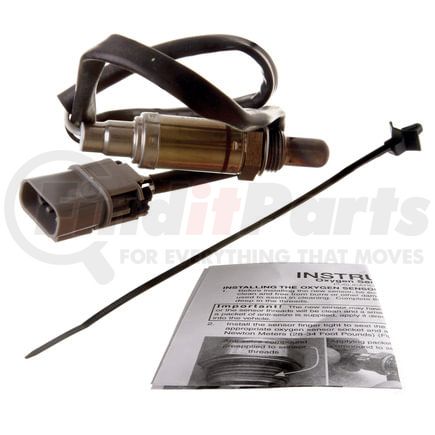

DELPHI ES10377 Part Description
Manufacturer
Product Description
Oxygen Sensor
Features & Benefits
- Delphi planar technology covers older, conical design sensors
- Smart design consolidates SKUs without using long wires
- Patented protective sensor coating helps prevent contamination
- Validated for all fuel types, including ethanol blends like E85
- OE tested to 150,000 miles, plus 2,000 hours severe thermal testing
- Delphi is a global OE manufacturer for oxygen sensor and all oxygen sensors are built to Delphi's OE standards
DELPHI ES10377 Specifications
Product Attributes
| Package Contents | Oxygen Sensor, Instruction Sheet |
| Position(s) | Front Left, Front Right, Left, Right. For the position specific to your vehicle, refer to the Applications. |
| Wiring Harness Length | 23.6 IN |
| Wiring Harness Length | 600.0 MM |
| Sensor Type | Narrow-Band |
| Terminal Type | Blade |
| Universal Or Specific Fit | Specific |
| Band Type | Narrow |
| Wire Quantity | 3 |
| Grade Type | Standard Replacement |
| Connector Shape | Oblong |
| Terminal Quantity | 3 |
| Connector Gender | Female |
| Terminal Gender | Male |
| Thread Diameter | 0.7 IN |
| Wrench Size | 22mm |
| Thread Size | M18 - 1.5 |
| Overall Length | 24.8 IN |
| Overall Length | 630.0 MM |
| Mounting Type | Threaded |
| Thread Diameter | 18.0 MM |
| Wire Gauge Measurement | 20.0 GU |
| Thread Type Standard | Metric |
| Heated | Yes |
Additional Information
| Harmonized Tariff Code (HTS) | 9027102000 |
| Warranty Distance UOM | DH |
| Warranty Distance | 12000 |
| Harmonized Tariff Code (Schedule B) | 9027100000 |
| Warranty Time UOM | MO |
| Warranty Time | 12 |
| Country of Origin (Primary) | CN |
| UPC | 00689604088432 |
| VMRS Code | 045021011 |
| UNSPSC | 41111924 |
DELPHI ES10377 Cross References
| Brand | Part Number |
|---|---|
| ACDelco | 2131268, 2131276, 2131278, 2131419 |
| Beck/Arnley | 156-3053 |
| BorgWarner | OS1701, OS1705, OS2183, OS584, OS696, OS699, OS880, OS949, OS953, OS972, OS983 |
| Bosch | 13091, 13260, 13276, 13327, 13329, 13635, 13641, 13658, 13666, 15345, 15362 |
| DENSO | 234-3087, 234-3304, 234-3112, 234-3301, 234-3302 |
| DENSO Auto Parts | 234-3087, 234-3301, 234-3303, 234-3304 |
| Datsun/Nissan | B269040P10, 22690-09P00, 22690-10Y00, 22690-10Y01, 22690-10Y10, 22690-17Y00, 22690-17Y01, 22690-28F60, 22690-30P00, 22690-30P10, 22690-39F00, 22690-40P10, 22690-46P00, 22690-46P01, 22690-46P10, 22690-46P11, 22690-46R00, 22690-48P00, 22690-48P01, 22690-48P10, 22690-48P11, 22690-60U15, 22690-64U03, 22690-64U08, 22690-67U10, 22690-67U12, 22690-6P600, 22690-6P601, 22690-6P602, 22690-6P603, 22690-7F000, 22691-6P100, 22691-6P101, 22691-6P600, 22691-6P602, B2690-10Y10 |
| Kem | 138-203, 138-337 |
| N/A | 25023087, 2269009P00, 2269010Y00, 2269010Y01, 2269010Y10, 2269017Y00, 2269017Y01, 2269028F60, 2269030P00, 2269030P10, 2269039F00, 2269040P10, 2269046P00, 2269046P01, 2269046P10, 2269046P11, 2269046R00, 2269048P00, 2269048P01, 2269048P10, 2269048P11, 2269060U15, 2269064U03, 2269064U08, 2269067U10, 2269067U12, 226906P600, 226906P601, 226906P602, 226906P603, 226907F000, 226916P100, 226916P101, 226916P600, 226916P602, B269010Y10, 138203, 138337, 1563053, 2343087, 2343301 |
| NTK | 24154, 24039, 24525 |
| Oextra | REA1093 |
| SPECTRA PREMIUM | OS5383, OS5387, OS5388, OS5186 |
| Standard Motor Products | SG117, SG1304, SG1350, SG1867, SG281, SG291, SG292, SG947, SG951 |
| Walker Products | 250-23087 |
| Wells | SU4348, SU4470, SU4471, SU4473, SU4480, SU4484, SU4516, SU6584 |
DELPHI ES10377 Fits Vehicles
- INFINITI Q45 (1991-2001)
- INFINITI J30 (1993-1997)
- Nissan 300ZX (1990-1996)
- Nissan 200SX (1986)
