(888) 312-8812 Login SignupDELPHI FG1267 Fuel Pump Module Assembly
$19599
Limited availability at this price!
5 Day Lead Time
Get as soon as Tuesday, Nov 24

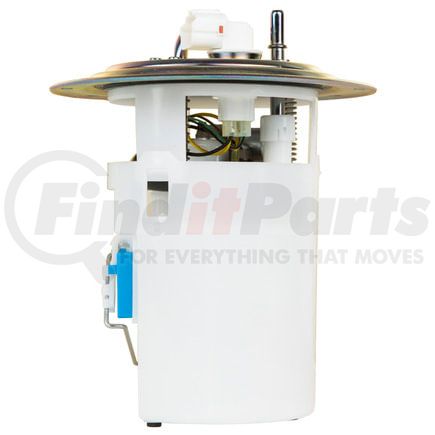

DELPHI FG1267 Part Description
Manufacturer
Product Description
Fuel Pump Module Assembly
Features & Benefits
- Delphi is a global OE manufacturer and all fuel pumps are built to Delphi's OE standards
- Empty float height and float retention matches OE specifications and guarantees correct gas gauge reading
- Lower amperage draws less load on vehicle's electrical system
- Part is validated, tested and matched to the right vehicle application
- Always be sure to check and clean fuel tank to avoid unnecessary returns
- Lower failure rates due to its innovative design and durability
DELPHI FG1267 Specifications
Product Attributes
| Item Grade | Standard Replacement |
| Package Contents | Fuel Pump Module Assembly w/Float Arm, Instruction Sheet |
| Fuel Level Sender Assembly Included | Yes |
| Vapor Pressure Sensor | No |
| System Pressure | 51 psi |
| Outlet Outside Diameter | 0.313 IN |
| Voltage | 12 2H |
| Fuel Type | Gas |
| Regulator Included | Yes |
| Maximum Pressure | 80 PS |
| Terminal Type | Blade |
| Gasket Or Seal Included | Yes |
| Terminal Quantity | 5 |
| Lock Ring Included | No |
| Terminal Gender | Male |
| Strainer Included | Yes |
| Inlet Type | Strainer |
| Outlet Type | Hose |
| Outlet Quantity | 2 |
| In Tank or External | In Tank |
| Resistance Ohms Empty | 110 82 |
| Resistance Ohms Full | 3 82 |
| Internal Or External Strainer | Internal |
| Pump Type | Electric |
| Average Current Draw | 8 68 |
| Average Flow Rating | 35 GPH |
| Fuel Sending Unit Included | Yes |
| Negative Ground | No |
| Mounting Hardware Included | No |
| Grade Type | Premium |
| Connector Quantity | 1 |
| Connector Shape | Rectangle |
| Housing Material | Plastic |
| Installation Warnings | No |
| Connector Gender | Female |
| Fuel Filter Included | Yes |
| Gasket Or Seal Material | Nitrile Rubber |
| Minimum Pressure | 51 PS |
| Wire Harness Included | No |
| Pump Design | Turbine |
| Fuel Tank Pressure Sensor Included | No |
| Universal Or Specific Fit | Specific |
Additional Information
| Harmonized Tariff Code (HTS) | 8413309030 |
| Warranty Special | Limited |
| Warranty Special UOM | LT |
| Harmonized Tariff Code (Schedule B) | 8413309000 |
| Country of Origin (Primary) | TH |
| UPC | 00689604232347 |
| VMRS Code | 044003258 |
| UNSPSC | 25172409 |
DELPHI FG1267 Cross References
DELPHI FG1267 Fits Vehicles
- Hyundai Elantra (2003)
