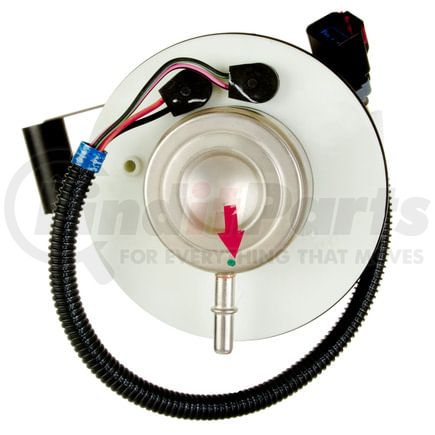

(888) 312-8812 Login SignupDELPHI FG1076 Fuel Pump Module Assembly
$23499
Limited availability at this price!
In Stock
Get as soon as Tuesday, Nov 17
DELPHI FG1076 Part Description
Manufacturer
Product Description
Fuel Pump Module Assembly
Features & Benefits
- Delphi is a global OE manufacturer and all fuel pumps are built to Delphi's OE standards
- Empty float height and float retention matches OE specifications and guarantees correct gas gauge reading
- Lower amperage draws less load on vehicle's electrical system
- Part is validated, tested and matched to the right vehicle application
- Always be sure to check and clean fuel tank to avoid unnecessary returns
- Lower failure rates due to its innovative design and durability
DELPHI FG1076 Specifications
Product Attributes
| Vapor Pressure Sensor | No |
| Fuel Level Sender Assembly Included | Yes |
| Item Grade | Standard Replacement |
| System Pressure | 44 psi |
| Package Contents | Fuel Pump Module Assembly w/Float Arm, Instruction Sheet |
| Outlet Outside Diameter | 0.375 IN |
| Voltage | 12 2H |
| Fuel Type | Gas |
| Regulator Included | Yes |
| Maximum Pressure | 49 PS |
| Terminal Type | Pin |
| Gasket Or Seal Included | Yes |
| Terminal Quantity | 4 |
| Lock Ring Included | No |
| Terminal Gender | Female |
| Strainer Included | Yes |
| Inlet Type | Strainer |
| Outlet Type | Quick Connect |
| Outlet Quantity | 1 |
| In Tank or External | In Tank |
| Resistance Ohms Empty | 272 82 |
| Resistance Ohms Full | 20 82 |
| Internal Or External Strainer | External |
| Pump Type | Electric |
| Average Current Draw | 5 68 |
| Average Flow Rating | 26 GPH |
| Fuel Sending Unit Included | Yes |
| Negative Ground | No |
| Mounting Hardware Included | No |
| Grade Type | Premium |
| Connector Quantity | 1 |
| Connector Shape | Rectangle |
| Housing Material | Plastic |
| Installation Warnings | No |
| Connector Gender | Female |
| Fuel Filter Included | Yes |
| Gasket Or Seal Material | Nitrile Rubber |
| Minimum Pressure | 44 PS |
| Wire Harness Included | No |
| Pump Design | Turbine |
| Fuel Tank Pressure Sensor Included | No |
| Universal Or Specific Fit | Specific |
Additional Information
| Harmonized Tariff Code (Schedule B) | 8413309000 |
| Harmonized Tariff Code (HTS) | 8413309030 |
| Warranty Special | Limited |
| Warranty Special UOM | LT |
| Country of Origin (Primary) | TH |
| UPC | 00689604218587 |
| VMRS Code | 044003258 |
| UNSPSC | 25172409 |
DELPHI FG1076 Cross References
| Brand | Part Number |
|---|---|
| AUTOBEST | F3132A |
| Airtex | E7121M, E7121MN, E7154 |
| AutoZone | DFG1076 |
| Bosch | 67658, 69316 |
| CARTER FUEL PUMPS | P75040M |
| Carquest | M219687 |
| Carter | P74186, P75040M |
| Chrysler | 5012 953AC |
| EVO Driveline | AFS0566S, RE0566S |
| GMB | 520-2210 |
| N/A | 5012953AC, USEP7121M, F3132A, 402-P7121MN, C0439M, 4010127 |
| Precision Fuel | A30075, E16022 |
| Spectra Premium | SP1132, SP7121M |
| TYC | 150185-A |
| TruGrade | D5341982 |
DELPHI FG1076 Fits Vehicles
- Jeep Cherokee (1997-2001)
