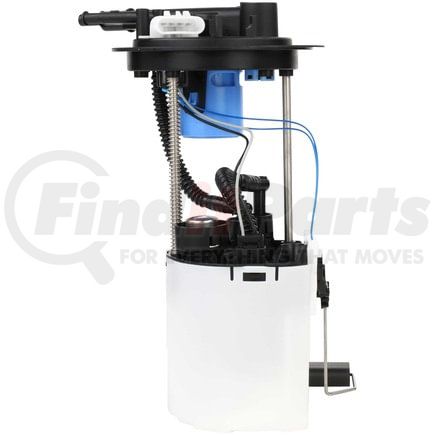

(888) 312-8812 Login SignupDELPHI FG0491 Fuel Pump Module Assembly
MSRP: $571.60
$39899
Save $172.61
Limited availability at this price!
In Stock
Get it by Friday, Feb 20
DELPHI FG0491 Part Description
Manufacturer
Product Description
Fuel Pump Module Assembly
Features & Benefits
- Delphi is a global OE manufacturer and all fuel pumps are built to Delphi's OE standards
- Empty float height and float retention matches OE specifications and guarantees correct gas gauge reading
- Lower amperage draws less load on vehicle's electrical system
- Part is validated, tested and matched to the right vehicle application
- Always be sure to check and clean fuel tank to avoid unnecessary returns
- Lower failure rates due to its innovative design and durability
DELPHI FG0491 Specifications
Product Attributes
| Vapor Pressure Sensor | No |
| Fuel Level Sender Assembly Included | Yes |
| Package Contents | Fuel Pump Module Assembly w/Float Arm, Seal, Instruction Sheet |
| Item Grade | Standard Replacement |
| System Pressure | 58 psi |
| Outlet Outside Diameter | 0.375 IN |
| Voltage | 12 2H |
| Fuel Type | Gas |
| Regulator Included | Yes |
| Maximum Pressure | 80 PS |
| Terminal Type | Blade |
| Gasket Or Seal Included | Yes |
| Terminal Quantity | 4 |
| Lock Ring Included | No |
| Terminal Gender | Male |
| Strainer Included | Yes |
| Inlet Type | Strainer |
| Outlet Type | Quick Connect |
| Outlet Quantity | 2 |
| In Tank or External | In Tank |
| Resistance Ohms Empty | 250 82 |
| Resistance Ohms Full | 40 82 |
| Internal Or External Strainer | Internal |
| Pump Type | Electric |
| Average Current Draw | 8 68 |
| Average Flow Rating | 16 GPH |
| Fuel Sending Unit Included | Yes |
| Negative Ground | No |
| Mounting Hardware Included | No |
| Grade Type | Premium |
| Connector Quantity | 1 |
| Connector Shape | Oval |
| Housing Material | Plastic |
| Installation Warnings | No |
| Connector Gender | Female |
| Fuel Filter Included | Yes |
| Gasket Or Seal Material | Nitrile Rubber |
| Minimum Pressure | 58 PS |
| Wire Harness Included | No |
| Pump Design | Turbine |
| Fuel Tank Pressure Sensor Included | No |
| Universal Or Specific Fit | Specific |
Additional Information
| Harmonized Tariff Code (Schedule B) | 8413309000 |
| Country of Origin (Primary) | TH |
| Harmonized Tariff Code (HTS) | 8413309030 |
| Warranty Special | Limited Lifetime |
| Warranty Special UOM | LF |
| UPC | 00689604196274 |
| VMRS Code | 044003258 |
| UNSPSC | 25172409 |
DELPHI FG0491 Cross References
| Brand | Part Number |
|---|---|
| ACDelco | MU1559, M10060 |
| AUTOBEST | F2703A |
| Airtex | E3792M, E3824M |
| AutoZone | FFG0491 |
| Carter | P76238M, P76634M |
| General Motors | 19149678, 19152657, 19152659, 28081968, 19331968, 19331969 |
| Magneti Marelli | 1AMFP00148 |
| N/A | 19370064, USEP3824M, C0314M, 4010615 |
| Precision Fuel | A30212, A30525 |
| SPECTRA PREMIUM | SP6505M |
| Spectra Premium | SP6379M, SP6491M |
| VDO | FP22050S |
DELPHI FG0491 Fits Vehicles
- Buick Allure (2007-2008)
- Pontiac Grand Prix (2007-2008)
- Chevrolet Monte Carlo (2007)
- Chevrolet Impala (2007-2008)
- Buick LaCrosse (2007-2008)
