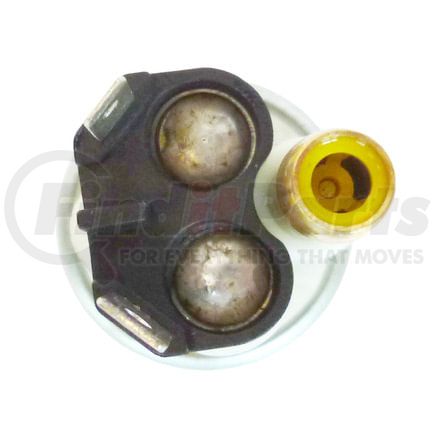

DELPHI FE0514 Part Description
Manufacturer
Product Description
Electric Fuel Pump
Features & Benefits
- Delphi is a global OE manufacturer and all fuel pumps are built to Delphi's OE standards
- Delphi pumps are designed to operate under extreme temperatures with quick engine starts
- Improved pump performance as a result of Delphi's innovative design and durability
- Restores fast pressure performance and system integrity, translating to better pumping through less energy
- Part is validated, tested and matched to the right vehicle application
- Lower amperage draws less load on vehicle's electrical system
- Always be sure to check and clean fuel tank to avoid unnecessary returns
- Always replace the fuel strainer when doing a fuel pump repair
DELPHI FE0514 Specifications
Product Attributes
| System Pressure | 44 psi |
| Package Contents | Electric Fuel Pump, (2) Blade Terminals, (2) Hose Clamps, (2) Hose Pieces, Inlet Adapter, Insulating Sleeve, (5) Seals, Instruction Sheet |
| Item Grade | Standard Replacement |
| Position(s) | In-Tank |
| Fuel Sending Unit Included | No |
| Negative Ground | No |
| Inlet Outside Diameter | 22.0 MM |
| Outlet Outside Diameter | 0.313 IN |
| Outlet Outside Diameter | 7.9 MM |
| Length | 137.0 MM |
| Fuel Type | Gas |
| Internal Or External | Internal |
| Regulator Included | No |
| Maximum Pressure | 112.0 PS |
| Terminal Type | Blade |
| Mounting Hardware Included | Yes |
| Wire Quantity | 0 |
| Gasket Or Seal Included | Yes |
| Terminal Quantity | 2 |
| Seal And Lock Ring Included | No |
| Connector Gender | Male |
| Terminal Gender | Male |
| Wiring Harness Included | No |
| Strainer Included | No |
| Inlet Type | Strainer |
| Outlet Type | Hose |
| Outlet Quantity | 1 |
| Gasket Or Seal Material | Nitrile Rubber |
| Pump Design | Turbine |
| Mounting Bracket Included | No |
| Voltage | 12.0 2H |
| Average Current Draw | 5.0 68 |
| Average Flow Rating | 32.0 GPH |
| Universal Or Specific Fit | Specific |
| Grade Type | Premium |
| Connector Shape | Blade |
| Minimum Pressure | 44 PS |
| Maximum Amperage Draw | 5.0 68 |
Additional Information
| Harmonized Tariff Code (HTS) | 8413309030 |
| Country of Origin (Primary) | TH |
| Harmonized Tariff Code (Schedule B) | 8413309000 |
| Warranty Special | Limited Lifetime |
| Warranty Special UOM | LF |
| UPC | 00689604218945 |
| VMRS Code | 044003259 |
| UNSPSC | 40151532 |
DELPHI FE0514 Cross References
| Brand | Part Number |
|---|---|
| ACDelco | EP299 |
| AUTOBEST | F3023 |
| Airtex | E7012, E7074H, E8214, E7071H, E8077, E8515M |
| AutoZone | CFE0514 |
| BorgWarner | P57 |
| Bosch | 67627, 67630, 69305, 69576 |
| Carter | P72181, P72223, P74036, P74083, P74501H, P74502H, P74115, P74190 |
| Chrysler | 5217855, 4419 618, 4443 065, 4443 157, 4797 885, 4797 887, 5217 852, 5217 856 |
| DENSO Auto Parts | 950-3000, 950-3002 |
| EVO Driveline | AFS0261P, AFS0291F, RE0261P, RE0287F, RE0291F, AFS0288F, RE0288F |
| GMB | 520-1031 |
| General Motors | 25117239, 19162981, 53 28 653 |
| Hygrade Tuneup | EFP219 |
| Import Direct | E16402 |
| Kem | EFP7003H, EFP7012, EFP8214 |
| Master Parts Division | E7012, E8214 |
| N/A | 5328653, 9503000, 9503002, 9321621, 4419618, 4443065, 4443157, 4797885, 4797887, 5217852, 5217856, SP1421, P90081, USEP7012, B0030E, P74116, P88025, P90040, B0096E |
| Precision Fuel | A20009, A27053, E16103 |
| Saab | 53 28 653, 93 21 621 |
| Spectra Premium | SP1192, SP239H, SP242H, SP5046M |
| Walbro | 516 |
DELPHI FE0514 Fits Vehicles
- Chrysler Dynasty (1989-1990)
- Chrysler Daytona (1984, 1989-1990)
- Saab 9000 (1990-1991)
- Saab 900 (1990-1993)
- Plymouth Voyager (1987-1990)
- Plymouth Sundance (1987-1990)
- Plymouth Grand Voyager (1987-1990)
- Plymouth Caravelle (1985-1988)
- Plymouth Acclaim (1989-1990)
- Dodge Spirit (1989-1990)
- Dodge Shadow (1987-1990)
- Dodge Omni (1985-1986)
- Dodge Mini Ram (1987-1988)
- Dodge Lancer (1985-1989)
- Dodge Grand Caravan (1987-1990)
- Dodge Dynasty (1988-1990)
- Dodge Daytona (1984-1990)
- Dodge Charger (1985-1987)
- Dodge Caravan (1987-1990)
- Dodge 600 (1985-1988)
- Chrysler Town & Country (1985-1988, 1990)
- Chrysler TC Maserati (1989-1991)
- Chrysler New Yorker (1984-1990)
- Chrysler LeBaron (1985-1990)
- Chrysler Laser (1985-1986)
- Chrysler Imperial (1990)
- Chrysler E Class (1984)
