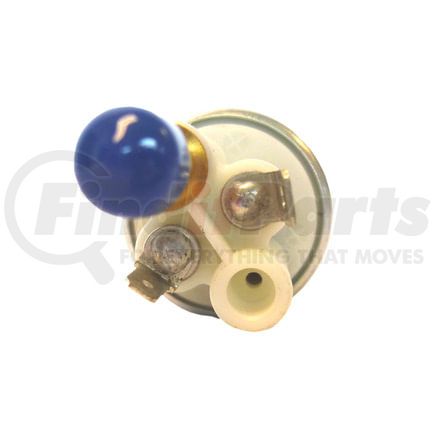

DELPHI FE0512 Electric Fuel Pump

★★★★★ (0)

$98.99

Limited availability at this price!

In Stock

Get as soon as Friday, Nov 20
30-day Return Policy On eligible items Details
Free Ground shipping on orders over $499 details

DELPHI FE0512 Part Description

Manufacturer

DELPHI

Product Description

Electric Fuel Pump

Features & Benefits

  • Delphi is a global OE manufacturer and all fuel pumps are built to Delphi's OE standards
  • Delphi pumps are designed to operate under extreme temperatures with quick engine starts
  • Improved pump performance as a result of Delphi's innovative design and durability
  • Restores fast pressure performance and system integrity, translating to better pumping through less energy
  • Part is validated, tested and matched to the right vehicle application
  • Lower amperage draws less load on vehicle's electrical system
  • Always be sure to check and clean fuel tank to avoid unnecessary returns
  • Always replace the fuel strainer when doing a fuel pump repair

DELPHI FE0512 Specifications

Product Attributes

Package ContentsElectric Fuel Pump, (2) Hose Clamps, Hose Pieces, Insulating Sleeve, Isolator, (2) Retaining Clips, (4) Seals, Zip Tie, Instruction Sheet
System Pressure44 psi
Item GradeStandard Replacement
Position(s)In-Tank
Fuel Sending Unit IncludedNo
Negative GroundNo
Inlet Outside Diameter22.0 MM
Outlet Outside Diameter0.375 IN
Outlet Outside Diameter9.5 MM
Length125.0 MM
Fuel TypeGas
Internal Or ExternalInternal
Regulator IncludedNo
Maximum Pressure116.0 PS
Terminal TypeBlade
Mounting Hardware IncludedYes
Wire Quantity0
Gasket Or Seal IncludedYes
Terminal Quantity2
Seal And Lock Ring IncludedNo
Connector GenderMale
Terminal GenderMale
Wiring Harness IncludedNo
Strainer IncludedNo
Inlet TypeStrainer
Outlet TypeHose
Outlet Quantity1
Gasket Or Seal MaterialNitrile Rubber
Pump DesignTurbine
Mounting Bracket IncludedNo
Voltage12.0 2H
Average Current Draw5.0 68
Average Flow Rating34.0 GPH
Universal Or Specific FitSpecific
Grade TypePremium
Connector ShapeTerminals
Minimum Pressure44 PS
Maximum Amperage Draw5.0 68

Additional Information

Harmonized Tariff Code (Schedule B)8413309000
Warranty SpecialLimited
Warranty Special UOMLT
Harmonized Tariff Code (HTS)8413309030
Country of Origin (Primary)TH
UPC00689604218921
VMRS Code044003259
UNSPSC40151532

DELPHI FE0512 Cross References

BrandPart Number
ACDelcoEP2069H, EP314, EP346
AUTOBESTF1012, F1013
AirtexE2001, E2073, E2078S, E2080S, E2106S, E2107S, E2144S, E2002, E2136S
Auto-TuneP95130E
AutoZoneCFE0512
Beck/Arnley152-0940
BorgWarnerP224H, P226H, P227H, P332H, P378H, P380H, P81, P83H, P95130E
Bosch67038, 67346, 69102, 69108
CarterP72106, P72170, P74064, P74103, P74112, P74122, P74123, P74132, P74521S, P74527S, P74528S, P74550S, P74592S, P74602S, P74611S, P74623H, P74628H, P74509S
DENSO951-0016
DENSO Auto Parts950-0164, 950-3020, 951-001, 951-0016, 953-4056, 953-4063
EVO DrivelineAFS0038S, AFS0064S, RE0038S, RE0040S, RE0064S, RE0091S, AFS0040S, AFS0091S, AFS0980P, RE0980P
FordE29Z 9H307-A, E69Z 9H307-G, E7FZ 9H307-D, E89F 9H307-BA, E89Z 9H307-B, E89Z 9H307-BA, E8FZ 9H307-B, E9FZ 9H307-A, F1TZ 9H307-D, F57Z 9H307-EA, ZZL0-13-350C
GMB525-1180
GatesP95130E
General Motors25117356, 52117356, 19162982
Import DirectE16013
KemEFP1039H, EFP1053H, EFP1060H, EFP1068H, EFP1077H, EFP1081H, EFP1096H, EFP1102H, EFP1104H, EFP1147H, EFP202, EFP2024, EFP226, EFP4070
Master Parts DivisionE2001
MasterPro Fuel PumpsMPA27004
MazdaZZL0-13-350B, ZZL0-13-350C, ZZM4-13-350A
MotorcraftPF-5, PFS-142, PFS-37
N/A9500164, 9503020, 951001, 9510016, 9534056, 9534063, ZZL013350B, ZZL013350C, ZZM413350A, P95130E, E29Z9H307A, E69Z9H307G, E7FZ9H307D, E89F9H307BA, E89Z9H307B, E89Z9H307BA, E8FZ9H307B, E9FZ9H307A, F1TZ9H307D, F57Z9H307EA, PF5, PFS37, P88014, USEP2002, E2015, B0003E, P90057, P90033, P90094, 4020122
NiehoffP226H, P95130E, PF88631
Precision FuelA20029, A20036, A27004, E16083
Spectra PremiumSP1158, SP220H, SP31B1H, SP333H, SP37A1H

DELPHI FE0512 Fits Vehicles

  • Ford Aerostar (1986-1989)
  • Ford EXP (1987-1988)
  • Ford Escort (1987-1990)
  • Ford Ranger (1989-1997)
  • Mazda B2300 (1994-1997)
  • Mazda B3000 (1994-1995)
  • Mazda B4000 (1994-1997)
  • Mazda Navajo (1991-1994)
  • Mercury Lynx (1987)
