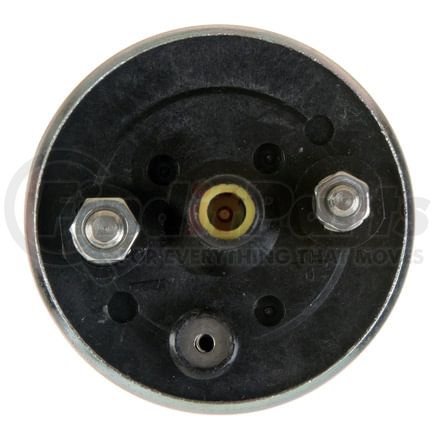

DELPHI FE0342 Part Description
DELPHI FE0342 Specifications
Product Attributes
| Position(s) | In-Tank |
| Item Grade | Standard Replacement |
| System Pressure | 44 psi |
| Package Contents | Electric Fuel Pump, (2) Hose Clamps, Hose Piece, Insulating Sleeve, Isolator, Pall Nut, Wire, (2) Wires w/Splices, (2) Zip Ties, Instruction Sheet |
| Fuel Sending Unit Included | No |
| Negative Ground | No |
| Inlet Outside Diameter | 11.0 MM |
| Outlet Outside Diameter | 0.313 IN |
| Outlet Outside Diameter | 7.9 MM |
| Length | 127.0 MM |
| Fuel Type | Gas |
| Internal Or External | Internal |
| Regulator Included | No |
| Maximum Pressure | 80.0 PS |
| Terminal Type | Threaded |
| Mounting Hardware Included | Yes |
| Wire Quantity | 3 |
| Gasket Or Seal Included | No |
| Terminal Quantity | 2 |
| Seal And Lock Ring Included | No |
| Connector Gender | Male |
| Terminal Gender | Male |
| Wiring Harness Included | Yes |
| Strainer Included | No |
| Inlet Type | Strainer |
| Outlet Type | Hose |
| Outlet Quantity | 1 |
| Pump Design | Turbine |
| Mounting Bracket Included | No |
| Voltage | 12.0 2H |
| Average Current Draw | 6.0 68 |
| Average Flow Rating | 40.0 GPH |
| Universal Or Specific Fit | Specific |
| Grade Type | Premium |
| Connector Shape | Terminals |
| Minimum Pressure | 44 PS |
| Maximum Amperage Draw | 6.0 68 |
Additional Information
| Harmonized Tariff Code (Schedule B) | 8413309000 |
| Harmonized Tariff Code (HTS) | 8413309030 |
| Warranty Special | Limited Lifetime |
| Warranty Special UOM | LF |
| Country of Origin (Primary) | TH |
| UPC | 00689604120149 |
| VMRS Code | 044003259 |
| UNSPSC | 40151532 |
DELPHI FE0342 Part Interchanges
| Brand | Part Number |
|---|---|
| General Motors | 25177373, 94473950, 97019185, 97019186, 97065370, 97069336 |
| N/A | 9510007, 9510012, 9510013, 8970693361, 8944716171, 8944739501, 8970191851, 8970191861, 8970653701, 8970653702, 1704230R00, 1704230R10, 1704230R11, 1704240F00, 1704240R00, 1704262E00, 1704262J00, 1704270F00, 1704285L00, 1704296E00, 42021AC072, 42021AC120, 42021AC121, 42021AC160, 42021PA000, P102, P93, P95150E, P97, USEP8235, F4246, B0171E |
| Bosch | 67864, 67867, 67868, 67866, 67870, 69499, 69642, 69672 |
| Carter | P72145, P72193, P72196, P72201, P72214, P72250, P72251, P72243, P88010, P90009 |
| ACDelco | EP433, EP464, MU1158, PEP152, EP342, EP344, PEP177 |
| EVO Driveline | AFS0355P, RE0345F |
| Magneti Marelli | 1AMFP00114 |
| Airtex | E8078H, E8230, E8235, E8051H, E8391S |
| Spectra Premium | SP1139, SP4041H, SP4087H |
| Hygrade Tuneup | EFP108, EFP117, EFP118, EFP119 |
| Datsun/Nissan | 6329AA42TOS, 17042-30R00, 17042-30R10, 17042-30R11, 17042-40F00, 17042-40R00, 17042-62E00, 17042-62J00, 17042-70F00, 17042-85L00, 17042-96E00, 6329AA42T0S |
| Autopart International | 60110, 60128 |
| Kem | EFP8230, EFP8235 |
| Auto-Tune | P102, P93, P95150E, P97 |
| Master Parts Division | E8230, E8235 |
| BorgWarner | P102, P148E, P78, P93, P95150E, P96A, P97 |
| Niehoff | P102, P93, P96A, P97 |
| Walbro | GCA314 |
| Beck/Arnley | 152-0984 |
| DENSO Auto Parts | 951-0007, 951-0012, 951-0013 |
| Gates | P102, P93, P95150E, P97 |
| Carquest | E260046 |
| AutoZone | CFE0342 |
| Honda | 8-97069-336-1 |
| Isuzu | 8-94471-617-1, 8-94473-950-1, 8-97016-142-1, 8-97019-185-1, 8-97019-186-1, 8-97019-187-0, 8-97019-188-1, 8-97065-370-1, 8-97065-370-2, 8-97069-336-1 |
| Subaru | 42021 AC024, 42021 AC072, 42021 AC120, 42021 AC121, 42021 AC160, 42021 FA001, 42021 FA081, 42021 PA000 |
| Import Direct | E16021 |
| TruGrade | 5211027 |
DELPHI FE0342 Fits Vehicles
- Nissan Axxess (1990)
- Nissan Stanza (1990-1992)
- Nissan Maxima (1992)
- INFINITI J30 (1993-1997)
- INFINITI G20 (1991-1994)
- Nissan 240SX (1989-1998)
- Honda Passport (1994-1995)
- Isuzu Trooper (1988-1993)
- Isuzu Rodeo (1991-1995)
- Isuzu Pickup (1988-1995)
- Isuzu Impulse (1985-1989)
- Isuzu Amigo (1989-1994)
- Subaru SVX (1992-1997)
- Subaru Legacy (1991, 1995-1998)
- Subaru Impreza (1993-1997)
DELPHI FE0342 Cross References
We have 4 alternatives for the FE0342 by DELPHI:
