(888) 312-8812 Login SignupADVICS A6F050 ADVICS OE Disc Brake Rotor
Tap to view 6 more
$7399
Limited availability at this price!
1 Day Lead Time
Get it by Thursday, Jun 18
ADVICS A6F050 Part Description
Manufacturer
Product Description

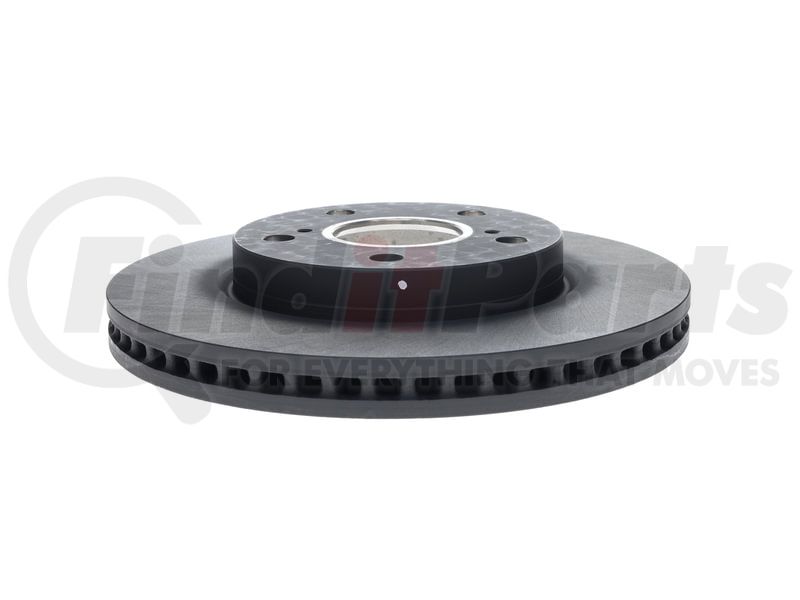

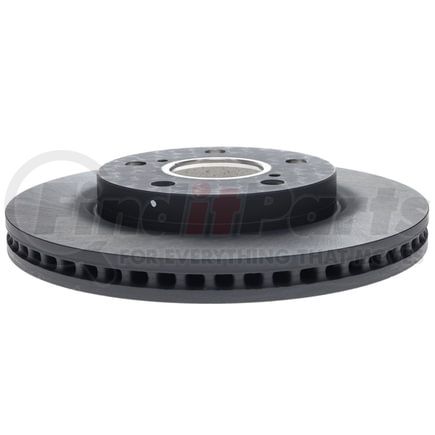

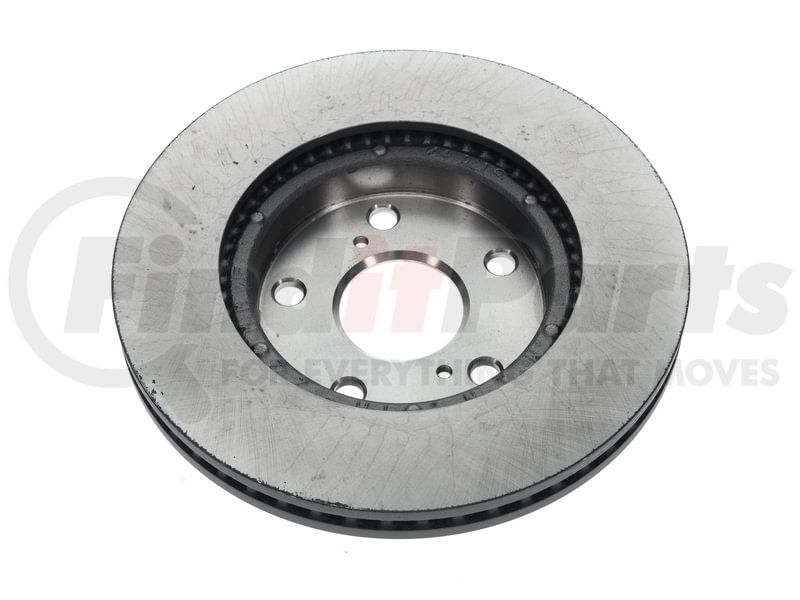

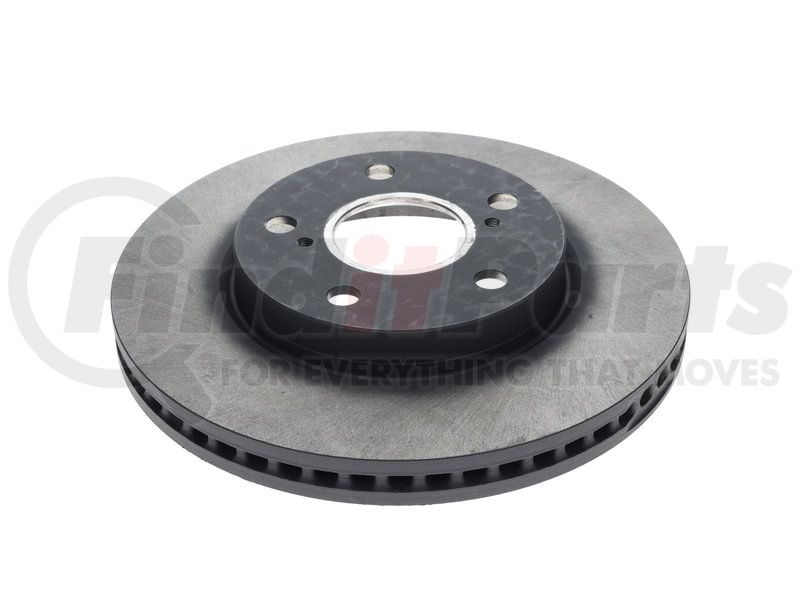

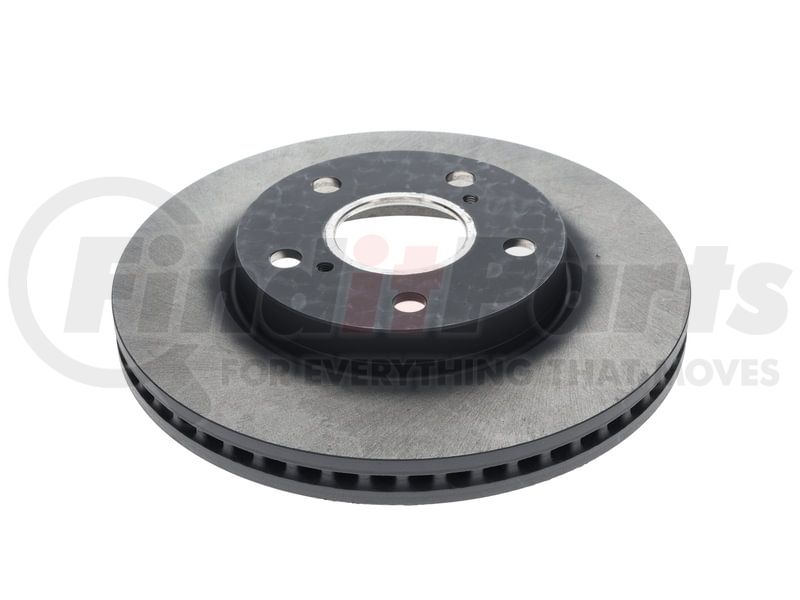

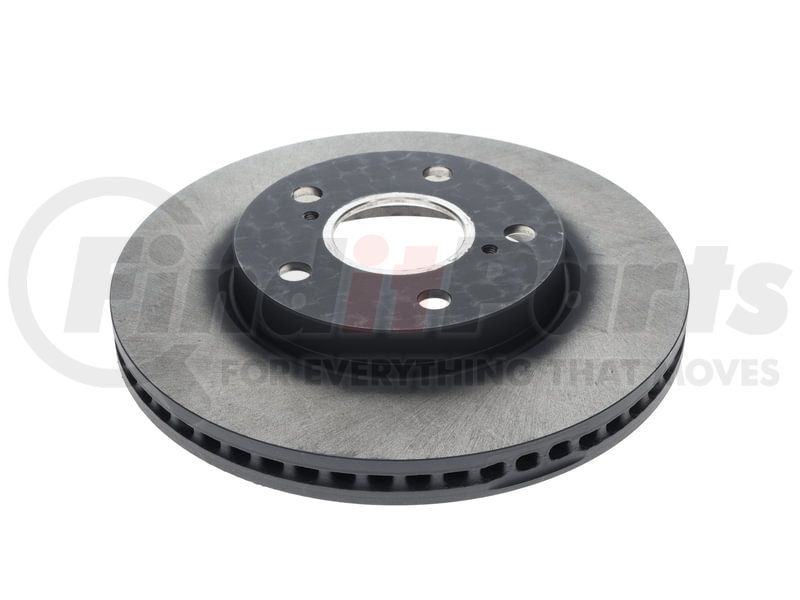

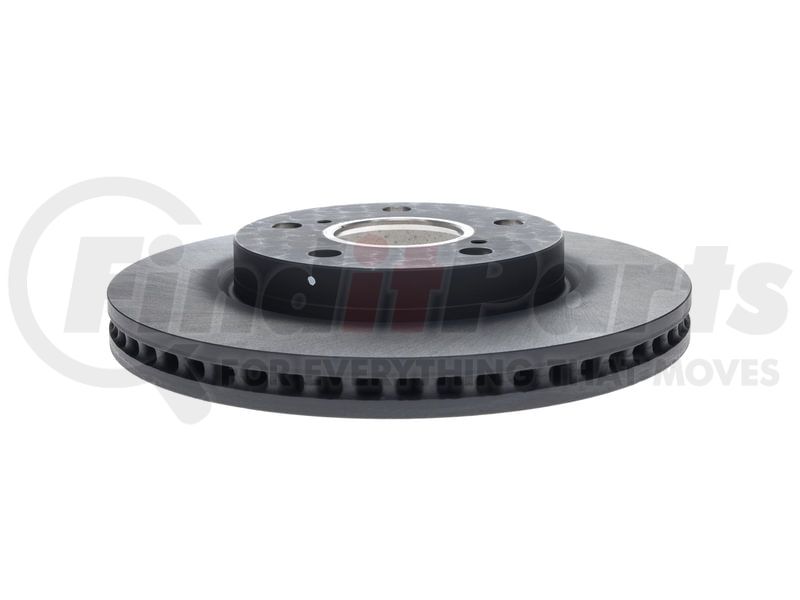

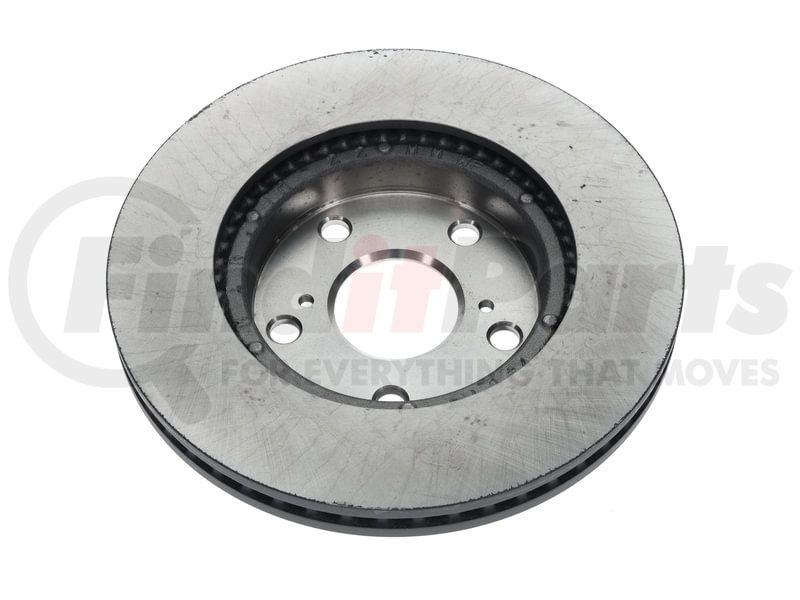

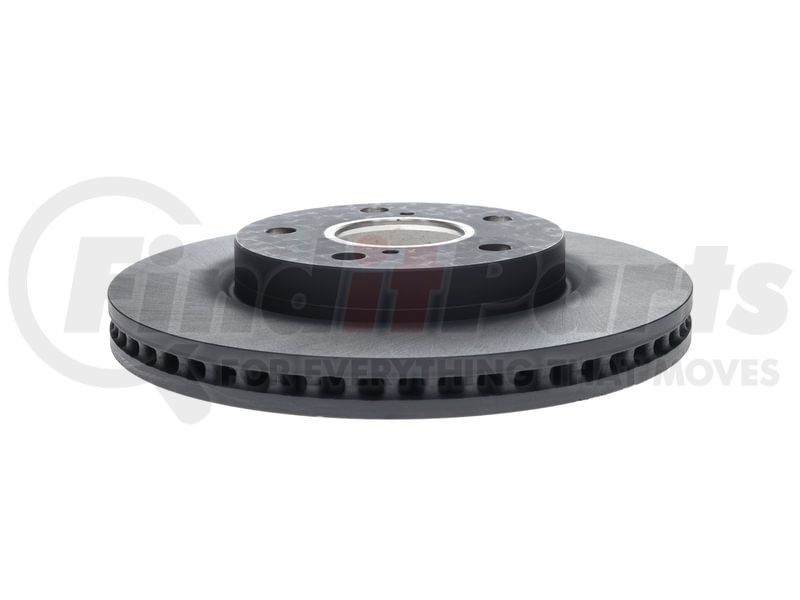

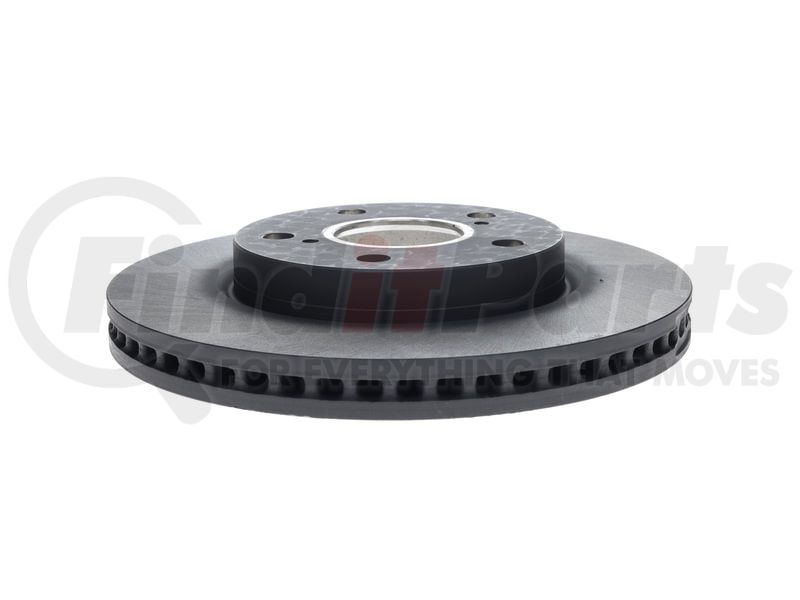

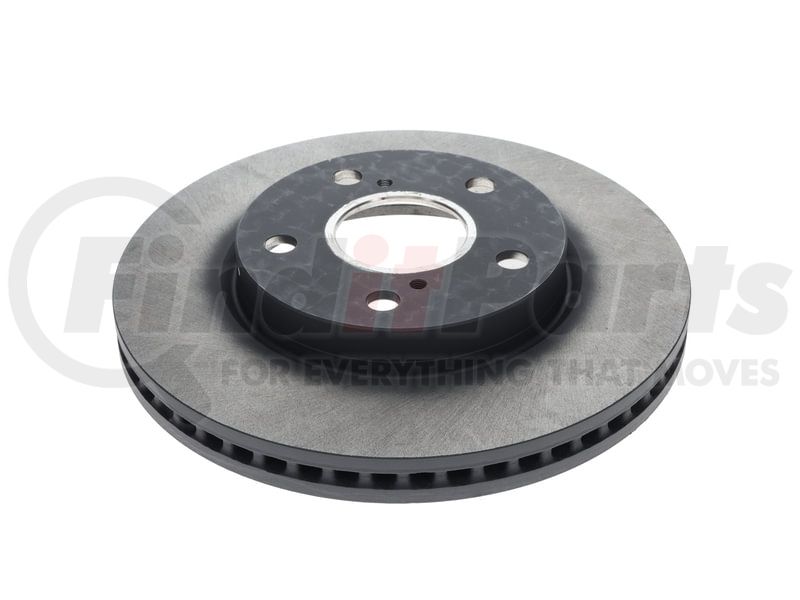

ADVICS OE Disc Brake Rotor
Features & Benefits
- Constructed to OEM weight, vane count and air gap using high carbon metallurgy to maintain thermal stability reducing opportunities for warping while providing longer pad and rotor life. Corrosion protection coating applied to match OEMs.
ADVICS A6F050 Specifications
Product Attributes
| Diameter | 275mm |
| Material | High Carbon |
| Discard Thickness | 22 MM |
| Nominal Thickness | 25 MM |
| Disc Finish | Non-Directional |
| Hat Finish | Coated |
| Construction | Full Cast |
| Rust Resistant Coating | Yes |
| Inside Diameter | 174 MM |
| Overall Height | 46 MM |
| Outside Diameter | 275 MM |
| Mounting Bolt Hole Quantity | 5 |
| Grade Type | Premium |
| Surface Type | Smooth |
| Solid Or Vented Type Rotor | Vented |
| Center Hole Diameter | 62 MM |
| Mounting Bolt Hole Circle Diameter | 114.3 MM |
| Mounting Bolt Hole Diameter | 14.3 MM |
| 9448 | 5 EA |
| Directional or Non-Directional Brake Surface | Non-Directional |
Additional Information
| Warranty Distance UOM | DH |
| Warranty Distance | 12000 |
| Harmonized Tariff Code (Schedule B) | 8708300050 |
| Harmonized Tariff Code (HTS) | 8708305030 |
| Warranty Time UOM | MO |
| Warranty Time | 12 |
| Country of Origin (Primary) | US |
| Canadian Harmonizing Tariff Code | 8708309930 |
| UPC | 04562372092688 |
ADVICS A6F050 Cross References
| Brand | Part Number |
|---|---|
| ADVICS | A6F050 |
| AISIN | A6F050 |
| Bendix | PRT5886 |
| Centric Parts | 125.44147, 120.44147 |
| Dura Corp | BR900344 |
| IMC | A6F050 |
| Lexus | 43512-0R010, 43512-42040, 43512-42080 |
| N/A | BR900344, 980477, YH200505P, A6F050, 604-76135, 320.44147F |
| Raybestos Brakes | 980477 |
| Scion | 43512-0R010, 43512-42040, 43512-42080 |
| Toyota | 43512-0R010, 43512-42040, 43512-42080 |
| WORLDPAC | A6F050 |
| Wagner Brake | BD126404 |
ADVICS A6F050 Fits Vehicles
- Toyota Prius V (2012-2018)
- Lexus HS250h (2010-2012)
- Scion xB (2008-2015)
- Toyota RAV4 (2006-2018)
