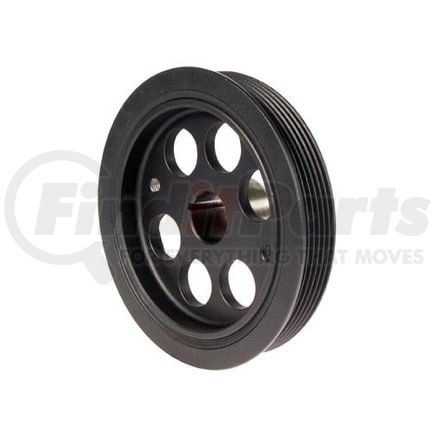

Dayco PB1653N - PREMIUM OEM REPL BALANCER, POWERBOND
$28049
In stock
limited availability at this price!
Pay over 3-12 months with
. Learn more
. Learn more
DAYCO part description
Product Description
PREMIUM OEM REPL BALANCER, POWERBOND
Product Attributes
| Overall Outside Diameter | 5.906 in |
| Overall Outside Diameter | 150 mm |
| Crank Bore | 1.025 in |
| Crank Bore | 26.01 mm |
| Overall Width | 1.654 in |
| Overall Width | 42 mm |
| Nose Outside Diameter | 1.497 in |
| Nose Outside Diameter | 38 mm |
| Ring Width | 1.052 in |
| Ring Width | 26.70 mm |
| Bolt Hole Quantity | 2 |
| Crank Trigger/Exciter Plate | No |
| Woodruff Key Included | No |
| Hardware Included | No |
| Counterweight Balance | Neutral, no counterweight |
| Timing Marks | Yes |
| Installation Instructions Included | No |
| Number of Integrated Pulleys | 1 |
| Pulley 1 Type | Serpentine |
| Pulley 1 Number Of Grooves | 6 mm |
| Outer Ring Material | Cast Iron |
Additional Information
| Country of Origin (Primary) | AU |
| Harmonized Tariff Code (Schedule B) | 8483509080 |
| UPC | 09317010010709 |
Part Interchanges
Fits Vehicles
- Toyota Prius AWD-e (2019-2022)
- Toyota Prius Prime (2017-2022)
- Toyota C-HR (2018-2021)
- Toyota Corolla iM (2017-2018)
- Toyota Prius Plug-In (2012-2015)
- Scion iM (2016)
- Toyota Prius V (2012-2017)
- Lexus CT200h (2011-2017)
- Toyota Prius (2010-2022)
- Toyota Matrix (2009-2014)
- Toyota Corolla (2009-2024)
- Scion xD (2008-2014)
